200 tph Granite crushing plant in Indonesia

Capacity:

Capacity: 180-250 t/h

Output size:

0-5mm,5-10mm,10-20mm,20-40mm

Material:

Used to crush ballast, quartz, granite, limestone,pebble...

Configuration:

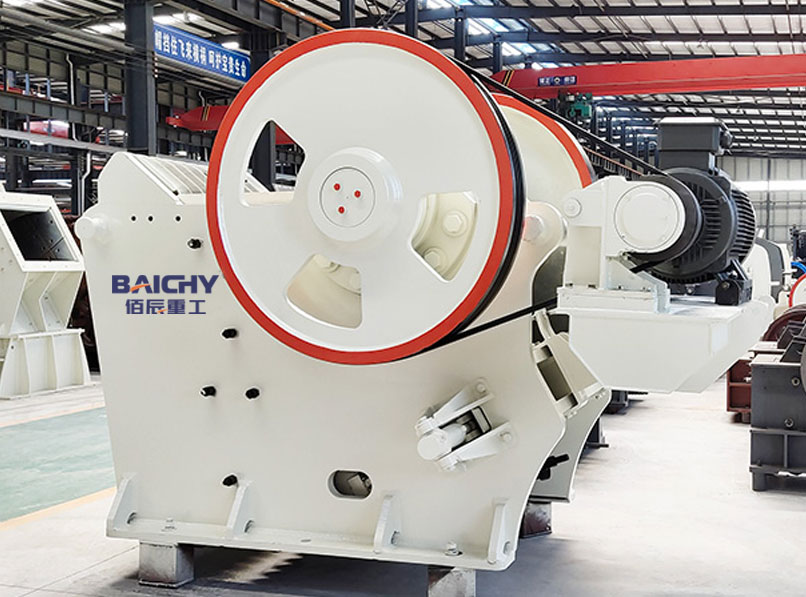

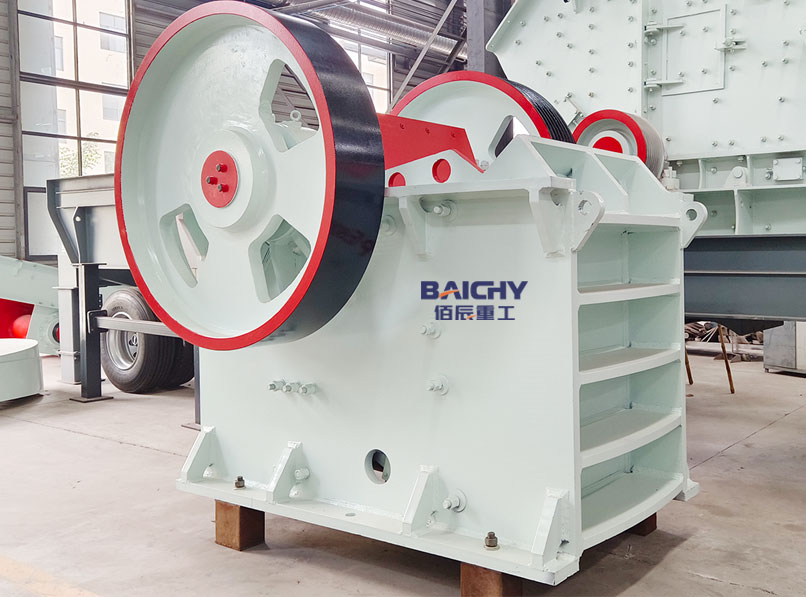

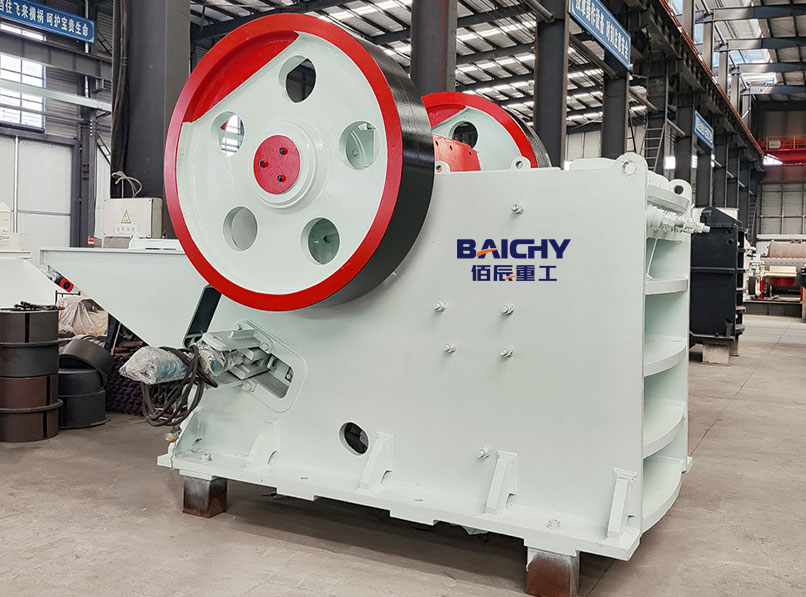

Vibrating feederZSW1142, jaw crusher PE750X1060, impact crusher PFW1214, cone crusher HPC300, vibrating screens, belt conveyors

Get Price List

Leave Message

60S Quick response
30 min Technical reply
24h design proposal
365 days service online

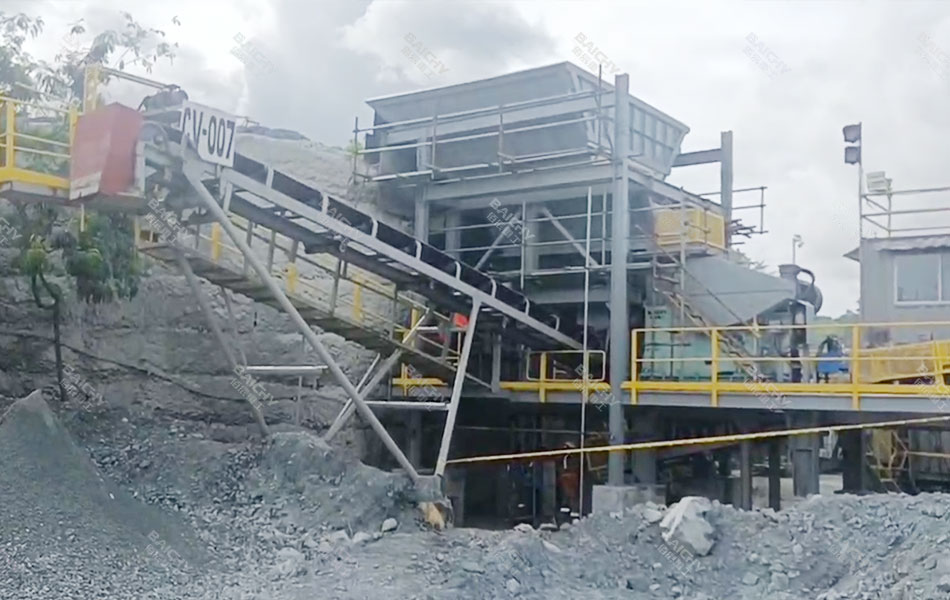

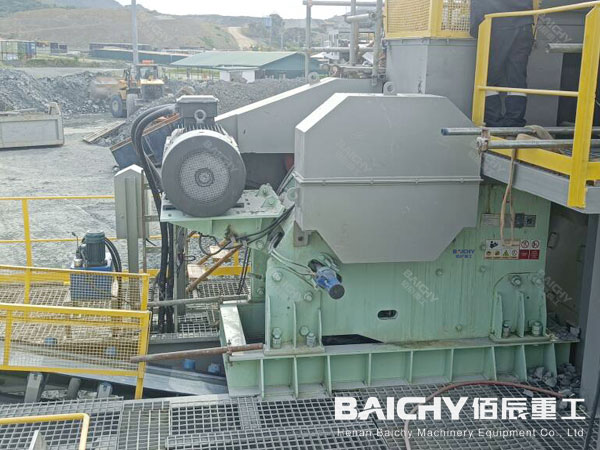

200tph granite crusher plant introduction

Clients from Indonesia planed to a stationary stone crushing plant. The raw material is granite with Mohs hardness 6-7. It is sand and stone production plant used in highway industry. So the final product size and shape are in high standard. We choose secondary crusher to use cone crusher and impact crusher to get high quality good shape prouduct.

Features of granite crushing plant 200tph

1. Baichy machinery provided all-round assistance to the whole project, including program planning, model selection, installation, commissioning, etc

2. The whole set of equipment was purchased from our company. The equipment performed very well after the operation.

3. The total set up for limestone crushing plant is high efficienty and flexible to meet different demamds.

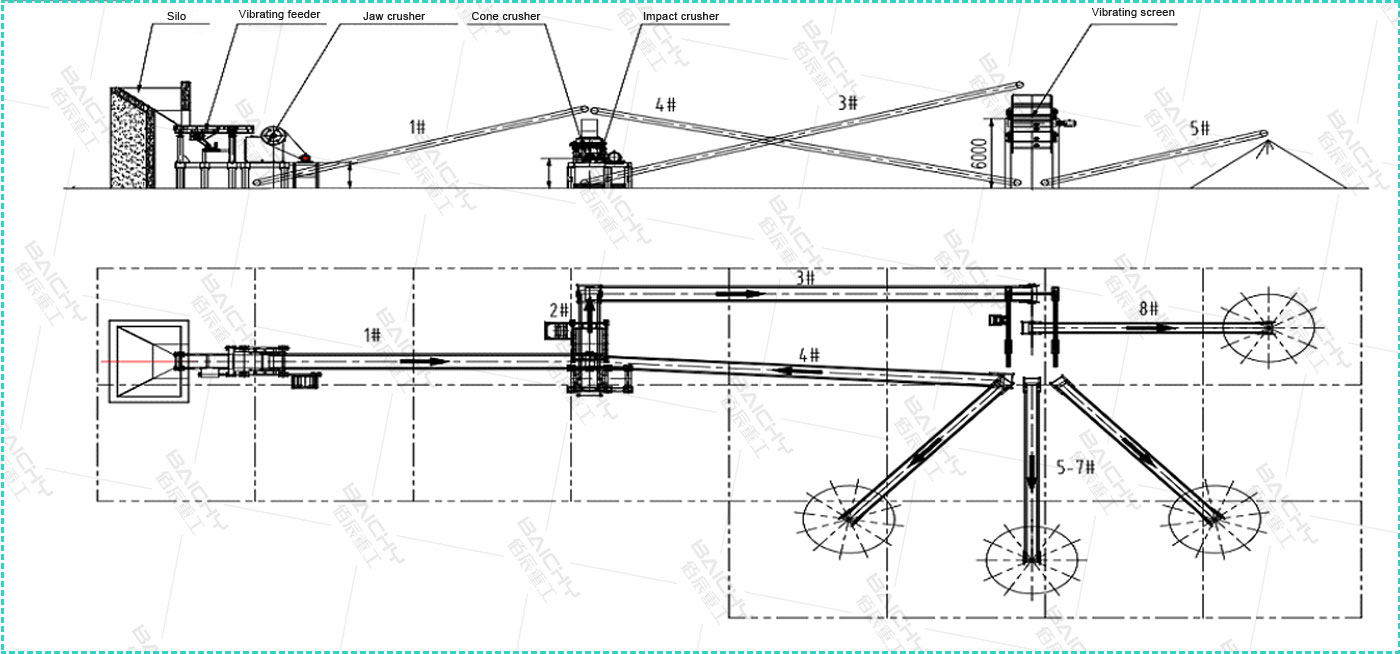

Flowchart of 200tph granite crusher plant

Main equipment in stone crushing plant

1. Feeding equipment, like vibration feeder or plate type feeder: These machines feed the jaw crusher with the rocks and stones to be crushed.

2. Crushing equipment: These are the machines where the rocks and stones are crushed. Generally jaw crushers and Gyratory crushers are used for primary crushing, while impact crusher, Symons cone crusher, sand crusher are used for secondary crushing and tertiary crushing.

3. Vibrating Screen: These machines are used to separate the different sizes of the material obtained by the crushers.

4. Belt Conveyor: They are used for transportation of the material from one machine to another during different phases of process.

5. Central electric control system: Control and monitor the operation of the entire system.

20+ Years of Mining Machinery Industry Experience & More Professional Service

Our service

1. BAICHY machinery has established a management system from initial consultation, solution design, on-site visit, production to shipment, ensure rapid and timely feedback so that the services and technical supports can be provided.

2. Depending on customers’ needs, Baichy’s engineers can provide on-site guidance in infrastructure construction, equipment installation and commissioning, as well as trial operation of entire production line.

3. Spare Parts Supply. Providing accurate assessment of spare parts' consumption to ensure successful implementation of production plan. Rapid supply of high-quality spare parts to ensure continual operation of production lines to prevent loss.

4. We have professional engineers team to design process flowchart and install complete stone crushing plant with capacity of 50tph, 100tph, 200tph, 300tph, 400tph, 500tph, 800tph, 1000tph and so on.
