Equipment configuration | Hopper (made on site), vibrating feeder ZSW1100x4900, jaw crusher PE900x1200, cone crusher HPC400/CS220 or impact crusher PF132, Vibrating screen, Belt conveyor. |
Raw materials | Limestone, Granite, Basalt, Quartz, River stone etc. |
Feed Size | less than 750mm |
Capacity | 250-500t/h |
Finished product | 0-6mm, 6-12mm, 12-25mm, 25-40mm |
Application | The stone crushing equipment are used to produce aggregate of limestone, granite, basalt, river stone, marble, iron ore, dolomite, quartz, slag etc, which is widely applied for hydropower, construction, highway, railway, airport runway, civil engineering projects and etc. |
Features |
1. Low operating cost and high crushing rate; 2. Energy saving, large output and simple maintenance, in line with the national building sand standards; 3. Uniform particle size of finished products, reasonable configuration. |

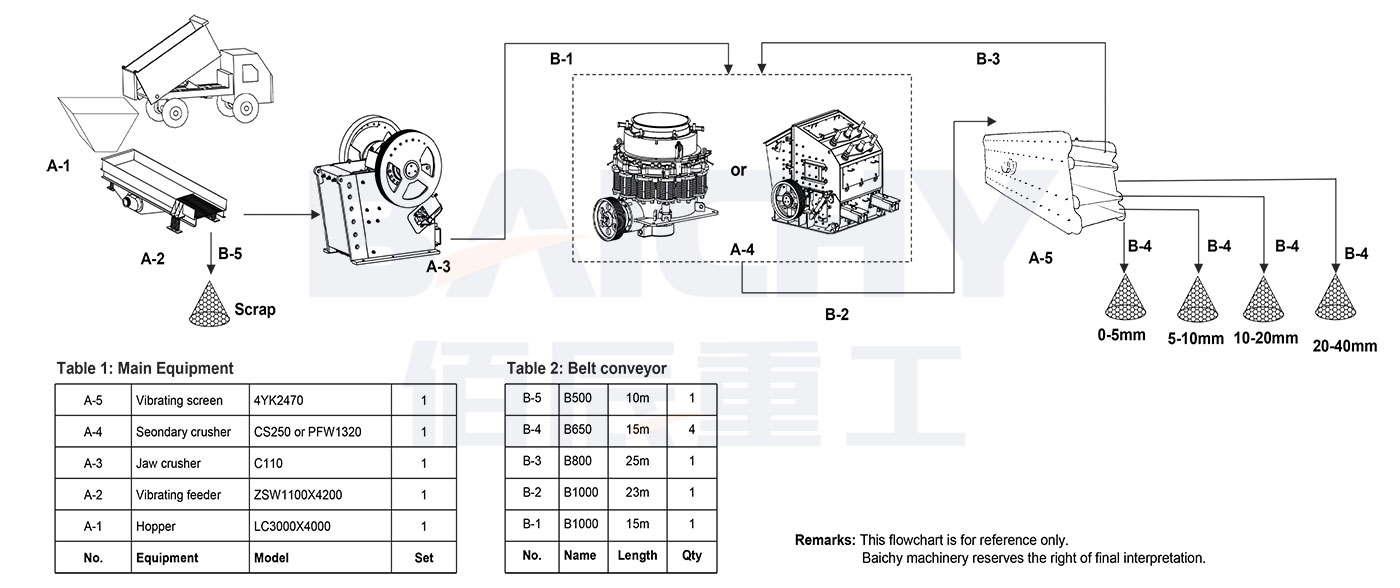

1.Raw material dump into the hopper by loader forklift, then hard rocks are fed into jaw crusher evenly and continuously by vibrating feeder for primary crushing.
2.Then the coarsely crushed materials are conveyed to secondary crusher (according to material hardness and output sizes request),secondary stone crusheing equipment can choose impact crusher, CS cone crusher, HP multi cylinders cone crusher and DG single cylinder cone crusher.
3.The final crushed material goes to vibrating screen to classify final qualified products according to different size ranges as stock pile for sale, or for road builidng use. Unqualified materials will be carried back to the stone crushing equipment for recrushing. This is closed circuit crushing process. The full set stone crushing plant will be more efficiency.
4.Customer can classify final products according to different size ranges. All the final products are up to the related standards within and beyond China. Dust is generated during the working process while the dust control units( such as pulse dust collector)are needed for environmental protection.
