Bucket elevator

Bucket elevator

Bucket elevator is a straight conveying equipment for upward transporting power,small granular material.

  • ≤55mmFeed Size
  • ≤50mMotor Power
  • 34-1112m³/hProcessing capacity
  • 60S Quick response
  • 30 min Technical reply
  • 24h design proposal
  • Email:hnbc@baichy.com
What is bucket elevator?
Bucket elevator is a widely used vertical lifting and conveying equipment. It is used to lift various powdery, granular and small lump materials, such as: limestone, gypsum, ore, coal, cement, clinker etc. Plate chain type bucket elevator produced by Baichy Machinery adopts self-flowing loading and gravity unloading. The chain is high strength plate chain of high quality alloy steel, which is wear-resistant and reliable. The driving part adopts hard tooth surface reducer.
hopper bucket elevator chain bucket elevator

bucket elevator conveyor
Why choose bucket elevator?

1. The floor area is small, the transmission speed can be adjusted according to the transmission volume, and the lifting height can be selected as needed.

2. Good sealing, less environmental pollution.

3. Easy to operate, less maintenance and less wearing parts; due to low energy consumption and less maintenance, the use cost is low.

Contact Us
  • High Quality

    Big capacity ability.

  • Customized Design

    Compact structure,good sealing and little environmental pollution.

  • Good Performance

    Long service life, the transmission chain service life is morn than 5 years.

Product features

Easy operation and maintenance, less wearing parts.

  • bucket elevator
  • conveying machine
  • conveying system

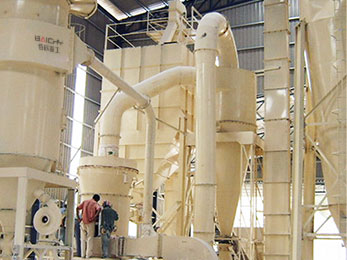

  • conveying system in grinding mill plant
Working principle

When the motor is switched on, the bucket mounted on bucket belt does circulating motion along the leg from the bottom up; materials enters the bucket and conveys to the head section of the elevator when filled, When the bucket belt turns around the head pulley, materials are ejected from the bucket under the action of centrifugal force and gravity. By such a repeated circle the materials in bottom are lifted to a given height and then discharged, so as to meet a requirement of vertical lifting.

bucket elevator working principle

Specification

Model 160 160 250 250 315 315 400 400
Type of hopper Q H Q H Q H Q H
Capacity(m3/h) 5.4 9.6 12 22 17 30 24 46
Bucket width(mm) 160 160 250 250 315 315 400 400
Bucket volume(L) 0.5 0.9 1.3 2.2 2 3.6 3.1 5.5
Pitch of buckets(mm) 280 280 360 360 400 400 480 480
Belt width(mm) 200 200 300 300 400 400 500 500
Speed(m/s) 1.4 1.4 1.6 1.6 1.6 1.6 1.8 1.8

*The output will vary according to different materials, feed particle size and other factors
