Mobile jaw crusher-Baichy Machinery

Product Center / Mobile Crushing Plant / Mobile Jaw Crusher Plant

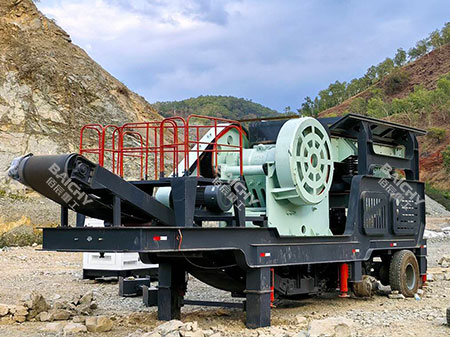

Mobile jaw crusher is heavy duty crushers to crushing hard stone in mining,mineral,construction waste recycling fields. Mobile stone crusher integrates feeder, jaw crusher, belt conveyor, control system to solve site infrastructure effectively.

≤750mmFeed Size
30-150 kwMotor Power
10-450 t/hProcessing capacity

Get Quotes Leave Message

60S Quick Response
30Min Technical Reply
24H Design Proposal
Email:[email protected]

What is mobile jaw crusher?

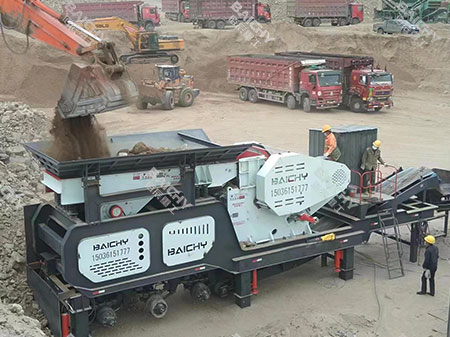

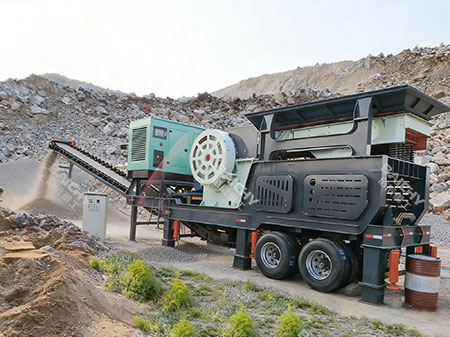

The tire-type mobile jaw crusher plant is composed of a solid frame, jaw crusher, feeder, conveyor, motor and control box, etc. With high efficiency and larger crushing ratio, it saves space and eliminates the obstacles brought by crushing site and environment to customers' crushing operation. The mobile primary jaw crusher is used for crushing various stones and ores, such as limestone, quartz, iron ore, copper ore, marble, pebbles, as well as for crushing waste and road material, brick or concrete. Mobile stone crusher plant is used both independently and in combination with other crushers, both with impact or cone crushers, which makes it possible to obtain finer fractions of cubic crushed stone and artificial sand.

2.How to choose mobile stone crusher plant?

1. When choosing a mobile crusher machine, it should meet the processing capacity requirements of the production line, so as to avoid the stacking problem caused by excess raw materials, and also improve efficiency. At the same time, the characteristics of the material should also be considered. If the particle size of the input material is uneven, a feeder with a pre-screening function can be selected; if the material has high moisture content and high hardness, it will increase the difficulty of crushing, Therefore, mobile crushing machine with theoretical capacity higher than that of production line should be selected.

2 Consider the compatibility with existing devices. For the quarry, the production line equipment mainly includes: electric shovel, truck and other feeding equipment, as well as sand making machine and other process equipment, and the production capacity of the mobile crusher should match it, in order to avoid the waste of stone. For tire-type mobile crusher plant, the traction and mobility of the existing truck should also be considered. If the two do not match, it will affect the use and will also bring a waste of existing resources.

3 Consider the movement period. If the crushing equipment needs to move flexibly, the crawler mobile crusher is a better choice; if it does not need frequent transitions, then you can choose semi-mobile or tire-type, which can not only meet the mobile needs, but also reduce equipment purchase costs.

Get Price List

High Quality

Mobile stone crusher is incorporated design. Feeder and vibrating screen integrated with jaw crusher, cone crusher, impact crusher, hammer crusher etc.
Customized Design

With support legs on truck,quick to set-up. The mobile stone crusher plant supporting legs height can be adjustable, adopt hydraulic controling parts.
Good Performance

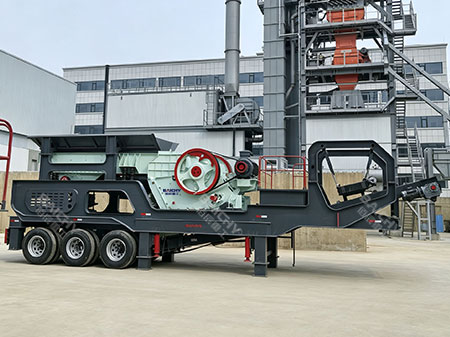

Truck mounted and easy to move. Due to strong structure, mobile stone crusher can be transported on highway and moved between different crushing sites.

Product features

Mobile Crusher Plant can be used by single operator, feed can be done by truck, loader or excavator. Closed Circuit stone crushing system till to get desired size of product

Working principle

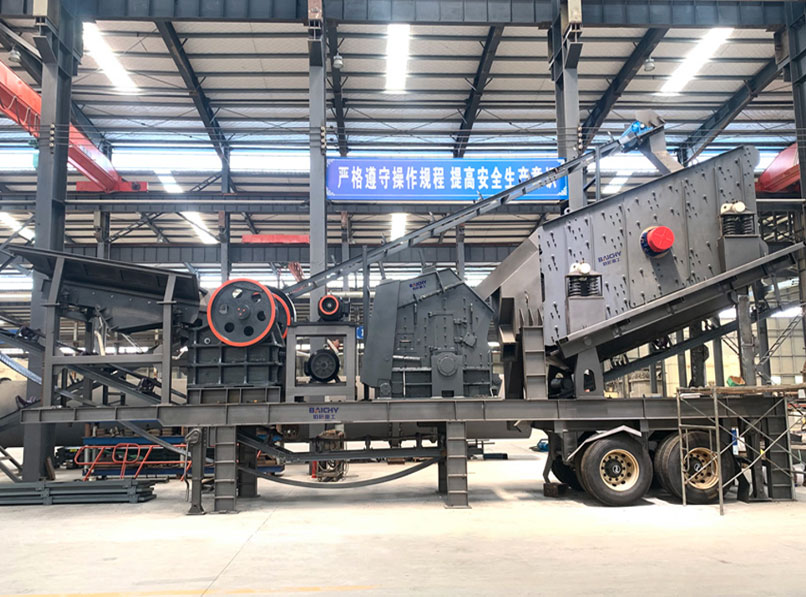

A complete mobile stone crushing and screening plant which consists of raw material bins which located on one or more trailers, vibrating feeders, primary jaw crushers, multi-layer vibrating screens, secondary crushers, fine crushers, mobile belt conveyors, sand washers, electric control systems and etc. Mobile stone crusher plant incorporates all the equipment together on one truck, which has high chassis, narrower body compared with other trucks. Materials are fed to vibrating feeder by loader, then evenly go into jaw crusher for primarily crushing. The final aggregates will be tranport into piles by belt conveyor. Mobile jaw crusher could be used a singel crushing unit or work with mobile impact crusher or mobile cone crusher plant.

Specification

Model (Primary Stage)	YDPZ57-8530	YDPZ80-8530	YDPZ69-9638	YDPZ96-9638	YDPZ75-1142	YDPZ106-1142	YDPZ116-1242	YDPZ116-1242
Vibrating Feeder	ZSW8530	ZSW8530	ZSW9638	ZSW9638	ZSW1142	ZSW1142	ZSW1142	ZSW1142
Jaw Crusher	PE500×750	C80	PE600×900	C96	PE750×1060	CJ106	CJ116	CJ116
Feeding Size(mm)	≤425	≤400	≤500	≤480	≤630	≤580	≤680	≤680
Belt Conveyor	B650	B650	B800	B800	B1000	B1000	B1000	B1000
Motor Power（kw）	7.5+45+4	7.5+55+4	11+55+4	11+90+4	15+110+4	15+110+4	15+132+4	15+132+4
Capacity (t/h)	40-130	50-160	90-180	60-160	110-380	150-300	200-400	200-400
Overall Size（mm）	10000x2300x4020	10000x2300x4020	11500x2300x4120	11600x2250x3710	12500x2550x4570	12850x2280x3950	13000x2550x4150	13000x2550x4150
Model (Secondary Stage)	YDPZ1210- 1548	YDPZ900- 1548	YDPZ1214- 1860	YDPZ160- 1860	YDPZ1315- 2160	YDPZ300- 2160	YDPZ1320- 2460	YDPZ400- 2460
Crusher	PF1210	PYB900	PFW1214	CS160	PFW1315	HP300	PFW1320	HP400
Feeding Size(mm)	≤400	≤115	≤430	≤205	≤500	≤210	≤500	≤250
Capacity (t/h)	70-130	15-90	100-180	109-349	130-220	110-380	160-350	180-560
Power（kw）	90	55	132	160	200	220	250	280
Vibrating Screen	3YK1548	3YK1548	3YK1860	3YK1860	3YK2160	3YK2160	3YK2460	3YK2460
Capacity (t/h)	30-275	30-275	65-586	65-586	81-720	81-720	100-810	100-810
Power（kw）	15	15	22	22	30	30	30	30
Belt Conveyor	B650	B650	B800	B800	B1000	B1000	B1000	B1000
Plant Capacity (t/h)	40-100	60-100	80-150	80-150	130-250	130-250	200-280	240-320
Overall Size（mm）	12500×2500×5600	12500×2500×5600	14500×2890×6600	14500×2890×6600	15500×2960×6850	15500×2960×6850	14500x2980x7170	16500×2960×7170
