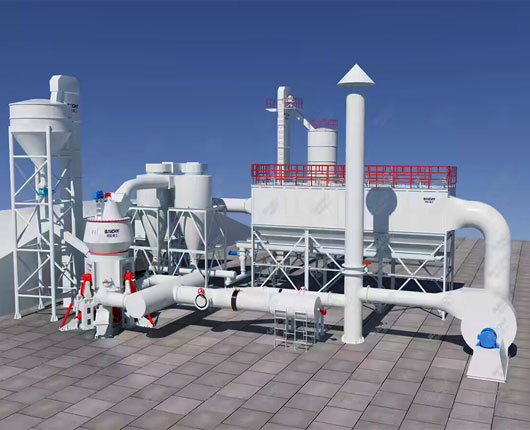

Vertical roller mill is a powder grinding equipment with mature technology superior performance. It integrates to crush, dry, grind and classifiy with high production efficiency. It can grind the massive, granular and powdery materials into fine powder.

≤38mmFeed Size
185-1000KWMotor Power
10-120 t/hProcessing capacity

Get Quotes Leave Message

60S Quick Response
30Min Technical Reply
24H Design Proposal
Email:hnbc@baichy.com

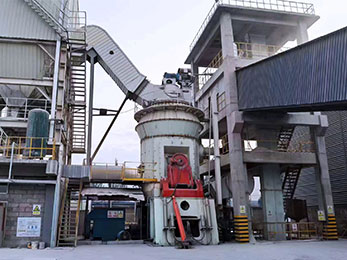

What is vertical roller mill?

SRM series vertical roller mill is a powder grinding equipment. This powder grinding plant integrates grinding, drying, grading and conveying, with simple structure and compact. It is used for grinding limestone, raw meal, slag, Nickel slag, manganese slag, cement, ground granulated blast-furnace slag, GGBS powder, fly ash, coal, clinker etc.

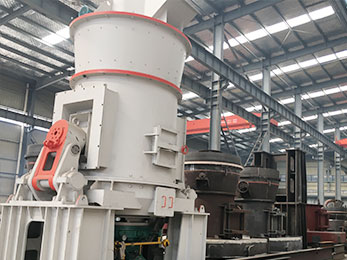

Why choose vertical roller mill?

1.SRM Vertical roller grinding mill adopts the principle of material layer grinding to grind materials with low energy consumption. The power consumption of the grinding system is 20 ~ 30% lower than ball mill. And the power saving effect is more significant with raw material moisture increasing.

2.The vertical mill integrates fine crushing, drying, grinding, powder selection, and transportation. It does not need additional equipment such as drying, powder selection, and lifting. The electrostatic precipitator collects, the layout is compact, the technological process is simple, the floor area and the occupied space are small, which makes the construction cost low.

3.The vertical mill uses hot air to transport materials, and the temperature of the air inlet can be controlled when grinding materials with high moisture content, so that the product can reach the required final moisture content. In the vertical mill, materials with a moisture content of up to 15% can be dried in a wide range of applications.

4.The vertical grinding mill system is equipped with automatic control device to realize remote control and easy to operate.

Get Price List

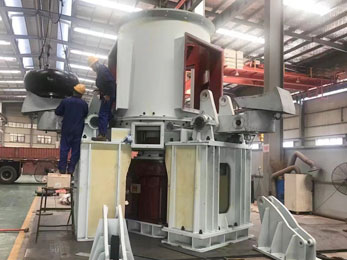

Product features

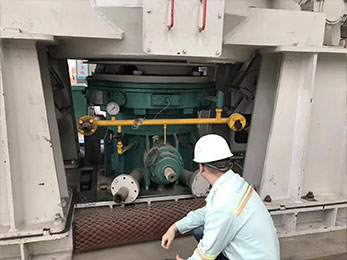

Efficient Material Bed Grinding

Vertical rollers apply hydraulic pressure to form a dense material bed. Particles crush each other under high pressure, significantly improving efficiency while reducing power consumption.
Maximized Grinding Contact Area

The tilted, inverted cone design of the rollers increases the contact area with the material layer. This specific posture enhances the grinding effect and ensures superior throughput.
Effective Material Flow Control

Tilted rollers work with dam rings to keep materials on the track and prevent spillage. This design avoids blockages in the hot air inlet, ensuring smooth and continuous operations.
Integrated Drying and Grinding

It can handle materials with high moisture content by using hot air to dry and grind simultaneously. This eliminates the need for a separate dryer, saving space and investment costs.

Working principle

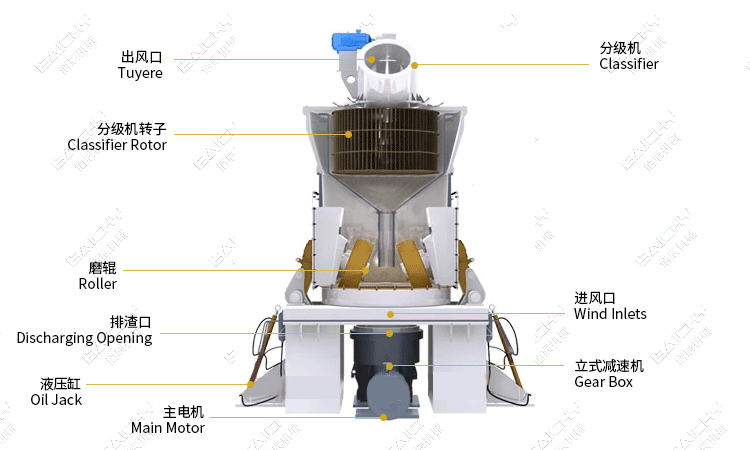

Vertical roller mill is mainly composed of powder concentrator, grinding roller device, grinding disc device, pressurizing device, reducer, motor, shell, etc. The separator is an efficient and energy-saving powder separation device. The grinding roller is a component used to roll and crush slag materials. The grinding disc is fixed on the output shaft of the reducer, which is the place where the grinding roller rolls materials. The pressurization device is a component that provides grinding pressure for the grinding roller and provides sufficient pressure to the grinding roller to crush materials. After being crushed by hammer crusher, the large material becomes smaller and is sent to the storage hopper by elevator, and evenly sent to the distribution board on the steering board through vibrating feeder and inclined feeding pipe. The grinding disc is driven by a motor through a reducer. The material falls from the feed opening onto the grinding plate. The material is driven to the edge of the disc by centrifugal force and crushed into fine powder by roller. Then, the hot air of the nozzle converts the fine powder into efficient classification. The qualified powder is brought to the powder collector through air for collection, and the unqualified powder is sent back for regrinding.

Specification

Model	Grinding table dia.(mm)	Max feeding size(mm)	Discharge size(um)	Discharge size(mesh)	Air-in tempreture(℃)	Air-out tempreture(℃)	Input material moisture	Final moisture	Capacity(t/h)	Motor Power(kw)
SRM1300	1300	≤38	212-45	70-325	≤350	70-95	4-15%	≤1%	10-35	185-250
SRM1500	1500	≤38	212-45	70-325	≤350	70-95	4-15%	≤1%	13-48	250-355
SRM1700	1300	≤38	212-45	70-325	≤350	70-95	4-15%	≤1%	18-68	355-600
SRM1900	1900	≤38	212-45	70-325	≤350	70-95	4-15%	≤1%	23-85	450-600
SRM2200	2200	≤38	212-45	70-325	≤350	70-95	4-15%	≤1%	36-135	710-1000
