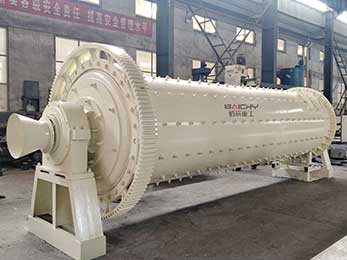

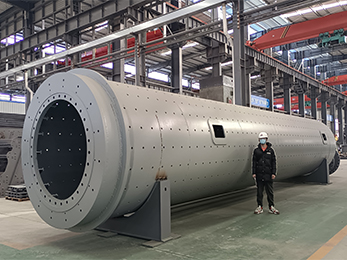

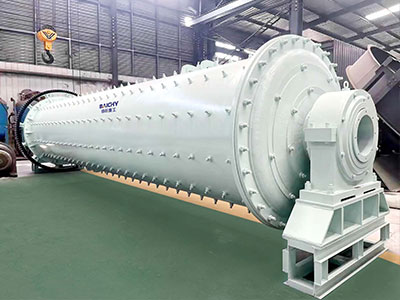

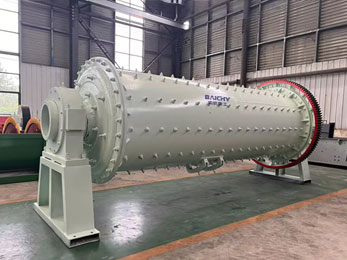

Ball Mill

Ball mill, also called grinding mill, ball grinding mill, is the key equipment to grind crushed materials into fine powder 20-75 micrometer. It has grate type and overflow type.

≤25mmFeed Size
18.5-800KWMotor Power
0.62–90 t/hProcessing capacity

Get Quotes Leave Message

60S Quick Response
30Min Technical Reply
24H Design Proposal
Email:[email protected]

What is ball mill?

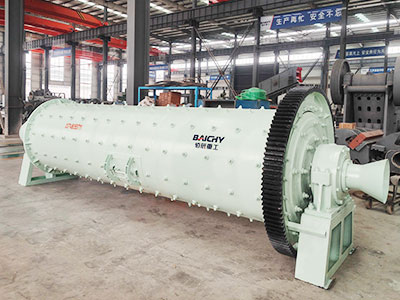

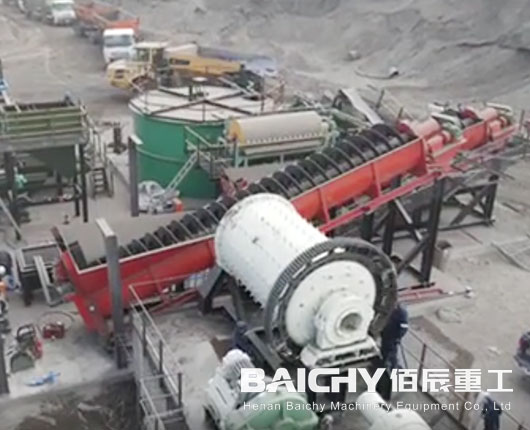

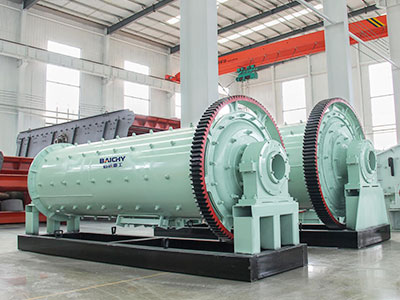

A ball mill is a grinding machine that also has a mixing effect. The ball mill is the key equipment for crushing ores after it is crushed in the beneficiation plant. Ball mill is filled with a certain number of steel balls in its cylinder as the grinding medium. Ball mills are suitable for grinding various ores and other materials, and are widely used in mineral processing, building materials and chemical industries. They can be divided into dry and wet grinding methods. According to different ore discharge methods, it can be divided into grid type and overflow type. It is widely used in ore dressing production line such as Gold ore, Cooper ore, Magnetite ore, Antimony, Calcite, Kaolin, Mica, Clay, Bentonite etc Ferrou metal or Nonferrous metal.

How to choose ball mill?

Selecting the types of ball mill is mainly up to capacity. There are many factors that are related to the processing capacity of ball mill, such mineral characteristic, feeding particle size and final size, shape of the lining board, mill speed, medium charge ratio, slurry concentration, as well as the type of classifier and working system etc.

1. Cylinder shape. Short-cylinder with single-bin structure ball mill is mainly used for coarse grinding or primary grinding with high efficiency. The specific configuration of the ball mill should according to the output and working conditions.
Discharge method

2. Discharge type. Overflow type: discharge ore through the hollow shaft. When the ore discharge surface is higher than the slurry surface, the finished product is discharged and the ore is automatically discharged by gravity, thus the overflow ball mill saves energy.
Grate discharge ball mill: the ore is discharged through the grate plate. The grating part can strictly control the minerals’ discharge size that meets the demand, it has a good effect on fine particle grinding.

3. Transmission method. Central transmission ball mill: The driving power of this type of mill is in the center of the fuselage, and the motor realizes the operation of the ball mill through a reducer. During operation, the hollow shaft in the center of the ball mill drives the grinding body to rotate under the drive of the power system.
Edge transmission ball mill: The motor drives the gear on the edge of the barrel through the reducer to drive the barrel.

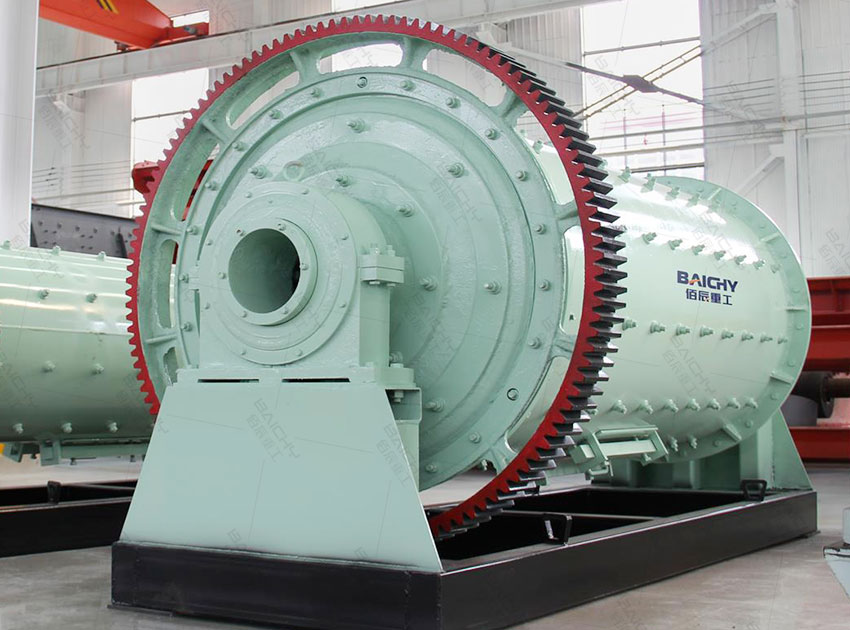

4. Energy consumption. Choose an energy-saving ball mill or ordinary ball mill according to the capacity of electric power supply and energy consumption limitation.

Get Price List

High Quality

Ball mill is mainly composed of feeding part, discharging part, turning part and driving part. Convenient installation and debugging , easy to operate.
Customized Design

High manganese steel plate liner is more wear-resistant and has a longer service life. Groove-type lining plate to grinding action and ore lifting capacity and decreases energy consumption.
Good Performance

ball mill adopts rolling bearing support instead of sliding bearing support with bearing bush to save energy by 10-20%.

Product features

High processing capacity,obvious continuous operation advantages.

Working principle

Ball mill grinding machine is a kind of horizontal drum-type grinding mill with external gear and double bins. Materials goes evenly through quill shaft in feeding device into the first bin, which has ladder lining or ripple lining with steel balls in different specifications.Steel balls are taken to a certain height by centrifugal force from drum rotation and then fall. Thus it will give a heavy blow to materials, playing a role of grinding. Materials after crushed in the first bin shall enter bin across single-layer diaphragm into the second, which is provided with flat lining with steel balls, to go through further grinding. The ground materials are discharged through the discharging board thus the grinding process is finished.

Specification

Model	Cylinder Rotating Speed (r/min)	Ball weight (t)	Feeding Size (mm)	Discharging Size (mm)	Capacity (t/h)	Power (kw)	Total Weight(t)
Ф900×1800	36-38	1.5	≤20	0.075-0.89	0.65-2	18.5	5.85
Ф900×3000	36	2.7	≤20	0.075-0.89	1.1-3.5	22	6.98
Ф1200×2400	36	3	≤25	0.075-0.6	1.5-4.8	30	13.6
Ф1200×3000	36	3.5	≤25	0.074-0.4	1.6-5	37	14.3
Ф1200×4500	32.4	5	≤25	0.074-0.4	1.6-5.8	55	15.6
Ф1500×3000	29.7	7.5	≤25	0.074-0.4	2-5	75	19.5
Ф1500×4500	27	11	≤25	0.074-0.4	3-6	110	22
Ф1500×5700	28	12	≤25	0.074-0.4	3.5-6	130	25.8
Ф1830×3000	25.4	11	≤25	0.074-0.4	4-10	130	34.5
Ф1830×4500	25.4	15	≤25	0.074-0.4	4.5-12	155	38
Ф1830×6400	24.1	21	≤25	0.074-0.4	6.5-15	210	43
Ф1830×7000	24.1	23	≤25	0.074-0.4	7.5-17	245	43.8
Ф2100×3000	23.7	15	≤25	0.074-0.4	6.5-36	155	45
Ф2100×4500	23.7	24	≤25	0.074-0.4	8-43	245	56
Ф2100×7000	23.7	26	≤25	0.074-0.4	12-48	280	59.5
Ф2200×4500	21.5	27	≤25	0.074-0.4	9-45	280	54.5
Ф2200×6500	21.7	35	≤25	0.074-0.4	14-26	380	61
Ф2200×7000	21.7	35	≤25	0.074-0.4	15-28	380	62.5
Ф2200×7500	21.7	35	≤25	0.074-0.4	15-30	380	64.8
Ф2400×3000	21	23	≤25	0.074-0.4	7-50	245	58
Ф2400×4500	21	30	≤25	0.074-0.4	8.5-60	320	72
Ф2700×4000	20.7	40	≤25	0.074-0.4	22-80	380	95
Ф2700×4500	20.7	48	≤25	0.074-0.4	26-90	480	102
Ф3200×4500	18	65	≤25	0.074-0.4	95-110	630	149
Ф3600×4500	17	90	≤25	0.074-0.4	115-170	850	169
Ф3600x6000	17	110	≤25	0.074-0.4	120-200	1250	198
Ф3600x8500	18	131	≤25	0.074-0.4	45.8-256	1800	260
Ф4000x5000	16.9	121	≤25	0.074-0.4	45-208	1500	230
Ф4000x6000	16.9	146	≤25	0.074-0.4	65-248	1600	242
Ф4000×6700	16.9	149	≤25	0.074-0.4	75-252	1800	249
Ф4500×6400	15.6	172	≤25	0.074-0.4	84-306	2000	280
Ф5030×6400	14.4	216	≤25	0.074-0.4	98-386	2500	320
Ф5030×8300	14.4	266	≤25	0.074-0.4	118-500	3300	403
Ф5500×8500	13.8	338	≤25	0.074-0.4	148-615	4500	525
