Vertical Compound Crusher

Vertical Compound Crusher

PFL compound crusher is kind of vertical shaft sand making machine. It is adjustable fine crushing equipment without screen bar and suitable for crushing brittle materials with medium hardness and low water content.

  • < 220mmFeed Size
  • 22-355KWMotor Power
  • 10-85 t/hProcessing capacity
  • 60S Quick response
  • 30 min Technical reply
  • 24h design proposal
  • Email:hnbc@baichy.com

What is vertical crusher?

PFL Compound crusher is also called vertical crusher because of its vertical shaft with up and down placement structure design. It could be used for fine crusher and coarse grinding process and it is one of the general equipment in sand production line and gravel production plant. Compound crusher is widely used in all kinds of ore, cement, gypsum, limestone, dolomite, quartz stone, coal gangue, refractory materials, bauxite clinker, emery, glass raw materials such as high hard and special hard material crushing. At present, it is a better model to replace cone crusher, roller crusher and ball mill in the world.

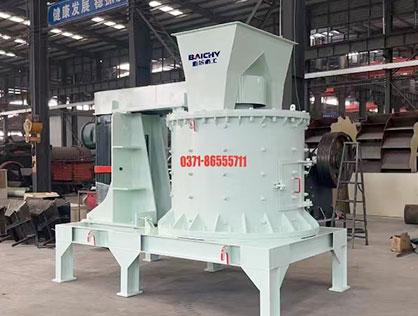

vertical shaft crusher vertical crusher

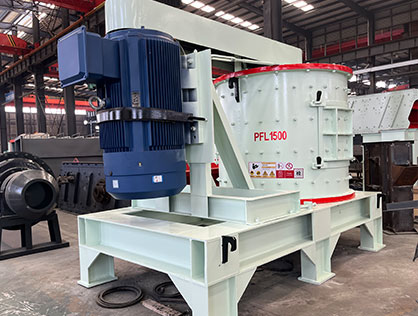

PFL-compound-crusher

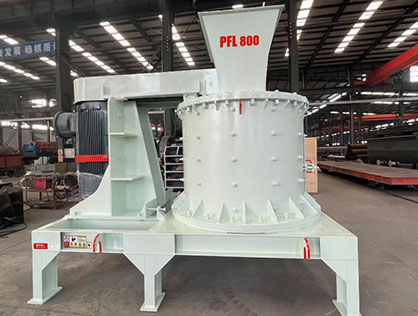

vertical shaft crusher vertical crusher

Why choose roller crusher?

The composite crushing hammer and rotor are rigidly connected, and the inertia of the whole rotor is used to impact material, which can obtain greater speed and kinetic energy, making it easier to crush and lower energy consumption.

The structure of the crushing cavity is designed to be large, so that the material has a certain space for movement in it. The material is impacted and can be fully broken after repeated blows.

The impact crushing steel disc structure and the hammer disc are staggered. This kind of new design enhances the working performance of the crusher effectively .

The combined structure of hammer head make it easy to replace severely worn parts only. It greatly improves the service life of the hammer head, and effectively reduces the production cost and the replacement frequency of the wearing parts of the equipment.

Get Price List
  • High Quality

    Large crushing ratio, discharging particle size can be adjusted arbitrarily, not affected by wear of hammer and liner plate.

  • Customized Design

    Without screen bar, it is not easy to block when crushing materials with high moisture content and mud content.

  • Good Performance

    The unbreakable material can be discharged automatically due to elastic adjustment mechanism and crusher machine will not be damaged.

Product features

Good sealing and dust removal device eliminate dust pollution to meet environmental standards.

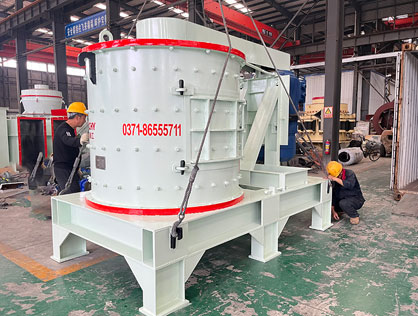

  • compound crusher
  • PFL compound crusher
  • sand crushing machine
  • clinker crusher

Working principle

Materials drop into high speed rotating impeller in vertical, under high speed centrifugal force, stroked and crushed with materials scattered around the impeller in umbrella, after repeatedly impacting then there will be forming eddy current between the impeller and frame, materials will be crushed again and finally discharge from outlet directly, whole system formed closed circuit, separated by outer screen to control fineness.

what is compound crusher?

Specification

Model Feeding Size(mm) Output Size(mm) Capacity (t/h) Power(kw) Overall Dimension (L*W*H)
PFL-800 < 50 < 3-5 10-20 22-37 2100*1200*1700
PFL-1000 < 80 20-40 45-75 2600*1400*1900
PFL-1250 < 150 40-70 75-132 2800*1600*2100
PFL-1500 < 180 70-100 132-200 3100*1900*2200
PFL-1750 < 200 130-190 200-315 3710*2360*2390
PFL-2000 < 220 200-260 315-355 4100*2660*2620

*The output will vary according to different materials, feed particle size and other factors
