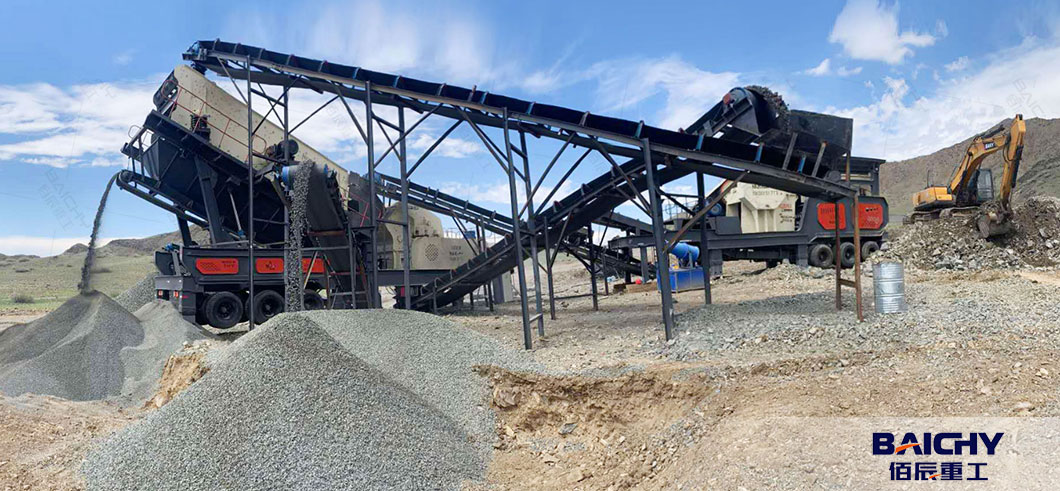

Wheel-Mounted Mobile Stone Crushing Station

A mobile stone crusher station is a type of crushing equipment that combines various crushing, screening, and conveying components on a mobile chassis. It is designed to be easily movable and can be quickly relocated to different job sites for on - site crushing operations.

Mobile Crushing Station Components And Structure

1.Crushing Unit

It typically includes different types of crushers such as jaw crushers, impact crushers, or cone crushers. For example, a jaw crusher in the mobile station is suitable for primary crushing. It has two jaws, one fixed and one movable, which apply pressure to break large stones into smaller pieces. Impact crushers in the mobile station are effective for secondary or tertiary crushing, using high - speed impact to further reduce the size of the crushed material.

2.Screening Unit

This is used to separate the crushed material into different sizes. Vibrating screens are commonly used in mobile stone crusher stations. They work by vibrating at a specific frequency, allowing the smaller - sized particles to pass through the screen meshes while retaining the larger ones for further crushing or other processing.

3.Conveying Unit

Conveyor belts are an essential part of the mobile station. They are used to transport the feed material from the source (such as a quarry or a stockpile) to the crushing unit and then to convey the crushed material to the screening unit or to the final product stockpile.

4.Chassis and Mobility

The entire crusher station is mounted on a mobile chassis, which can be a wheeled or tracked chassis. Wheeled chassis offer good mobility on relatively flat and hard surfaces, while tracked chassis are more suitable for rough terrains, such as in quarries or construction sites with uneven ground.

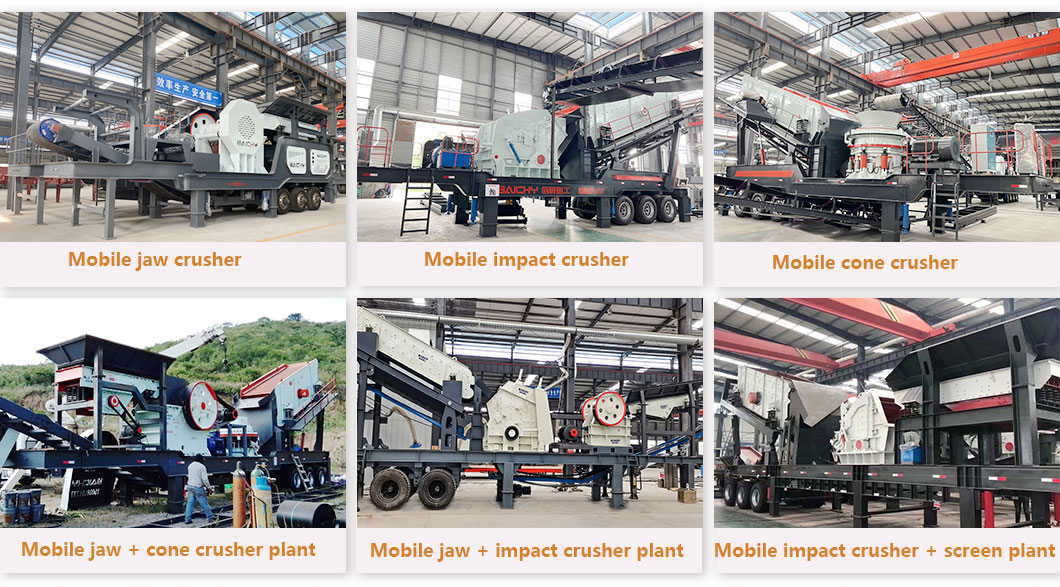

Mobile Stone Crushing Station Types

Unitl now, we build several stone crushing stations based on client different requirements. The large stone crusher station could be verious combination, such as

1.Vibrating feeder, jaw crusher, cone crusher and vibrating screen all in one machine

2.Vibrating feeder, box crusher and vibrating screen all in one machine

3.Vibrating screen and jaw crusher all in one machine for primary crushing system, and impact crusher or cone crusher and vibrating screen in one machine as secondary crushing and screening system

Mobile Stone Crushing Station Advantages

1.Flexibility and Mobility

It can be easily moved to different locations, reducing the need for transporting large quantities of raw materials over long distances. For example, in a quarry with multiple extraction points, the mobile crusher station can be relocated close to the source of the stones, minimizing transportation costs and energy consumption.

2.Quick Setup and Operation

Mobile stone crusher stations are designed for rapid deployment. They can be set up and start crushing operations within a short time, which is highly beneficial for projects with tight schedules. For instance, in a construction project where on - site crushing of demolished concrete is required, the mobile station can be quickly installed and put into use.

3.Cost - effectiveness

By reducing transportation costs and the need for additional handling equipment at a fixed crushing plant, mobile crusher stations can be a cost - effective solution. Moreover, they can be used for small - to - medium - scale projects where building a large, permanent crushing plant may not be economically viable.

Applications

1.Mining Industry

In mining operations, mobile stone crusher stations are used to crush ores at the mine site. This allows for the extraction and initial processing of valuable minerals more efficiently, as the crushed ore can be further processed on - site or transported more easily to the refining plants.

2.Construction and Demolition

For construction projects, it can be used to produce construction aggregates like gravel and sand from quarried stones. In demolition projects, it can crush the demolished concrete and masonry materials on - site, recycling them into useful building materials, which is environmentally friendly and cost - saving.

3.Road Building

Mobile crusher stations can be used to produce the required aggregates for road construction. They can be moved along the road construction route, providing freshly crushed materials as needed, which helps to ensure the quality of the road base and sub - base.

Baichy Machinery Company is headquartered in Zhengzhou, Henan. As a manufacturer specializing in the production of stone crushers for more than 20 years, it has a good reputation in the industry. If you have any questions about mobile stone crusher plant, please click on the online customer service, which will answer you 24 hours a day.
