Trommel Screen

Trommel screen machine is also called rotary drum screen. It provides a simple, efficient and economical solution to sceen a wide rang of material. Trommel screen is applied in metallurgy, mining, chemical, coal, building materials and other industries.

≤300mmFeed Size
1.1-22KWMotor Power
0.5-350tphProcessing capacity

Get Quotes Leave Message

60S Quick Response
30Min Technical Reply
24H Design Proposal
Email:[email protected]

What is trommel screen?

Trommel screen is a kind of machinery widely used in the sorting industry, and it screens materials by the different particles size. The barrel of the trommel screen can be divided into several sections with different screen hole sizes. The screen holes are arranged from small to large, and the screen hole diameters on each section are the same. Thus the screening accuracy is high. Drum screening equipment is mainly used for large and small stone classification, soil and stone powder separation, sand and stone separation, lump coal and coal powder separation, coal washing, large and small block classification, powder material separation, etc.

Why choose trommel screen?

1. Trommel screen adopts the overall through-shaft structure, which runs smoothly, does not vibrate, and has low noise.

2. The trommel screen has simple structural design, good screening effect, and the screen hole is not easy to block.

3. The screening cylinder can be closed, which is easy to seal and collect dust.

4. Baichy can manufacture trommel screens with shaft, shaftless, mobile, integrated screening and conveying, etc. At the same time, different screen materials and screen hole sizes can be used according to requirements.

Get Price List

High Quality

Screen long life span. Screen seive is made with strong strength, good abrasion resistance and high screening efficiency.
Customized Design

Designed to fit your operation.Trommel screen can be customized to meet different capacity and working site.
Good Performance

Free from pollution.Fully enclosed structure,no dust pollution,improve working conditions for operators as well.

Product features

Variable application range. Compost,chemical,coal,plastic,recycling,metallurgy,mineral screening etc.

Working principle

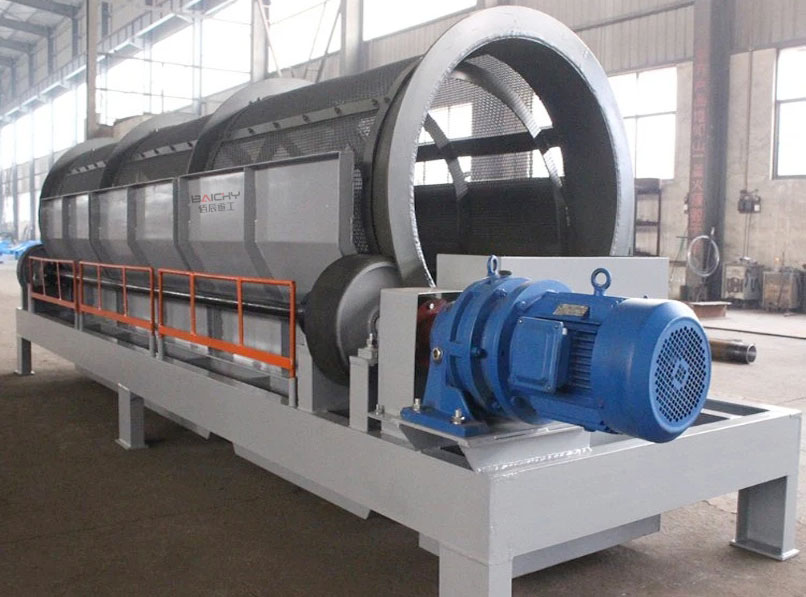

Trommel screen is consisting of five parts: drum, frame, hopper, reducer and motor.

After the material goes into the drum, it is screened along with the rotation of drum. At same time, the larger size materials flow forward along the direction of slope and be separated by the screen with different numbers of meshes. The different materials fall into different hoppers and then are sent to different finished product stacks by manpower or belt conveyor.

Specification

Model	Drum Diameter (mm)	Drum Length (mm)	Max feeding size (mm)	Capacity (t/h)	Power (kw)
GT1015	1000	1500	<300	10-15	4
GT1020	1000	2000	<300	15-25	5.5
GT1225	1200	2500	<300	25-40	7.5
GT1530	1500	3000	<300	60-80	11
GT1545	1500	4500	<300	80-150	15
GT1848	1800	4800	<300	150-200	22
GT1860	1800	6000	<300	160-220	18.5
GT2055	2000	5500	<300	200-260	30
GT2580	2500	8000	<300	300-600	22×2
