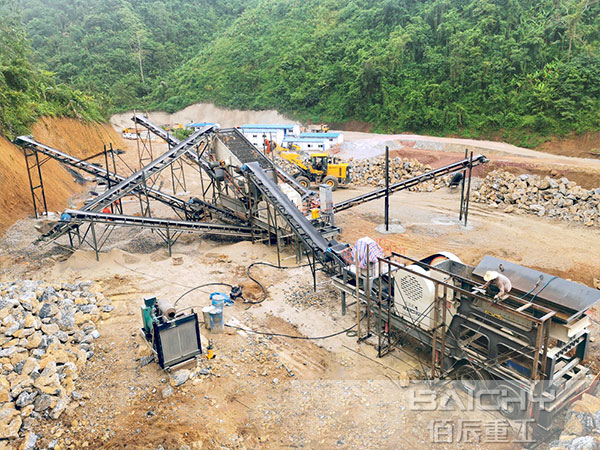

200tph mobile crusher plant in Indonesia

200tph mobile crusher plant introduction

The mobile jaw crusher is used to for highway construction site. Customer requires that materials can be processed on site to reduce the transportation cost. The mobile crusher plant from Baichy Machinery eliminates the complex site infrastructure installation operations and reduces the consumption of materials and man-hours. The final products has good shape to meet highway construction.

Features of mobile limestone crusher plant

1. The reasonable and compact space layout of the unit improves the flexibility of the site.

2. The final aggregates are high quality to meet highway construction standard excellent.

3. The whole set of equipment was purchased from our company. The equipment performed very well during production process.

Flowchart of 200tph mobile crusher plant

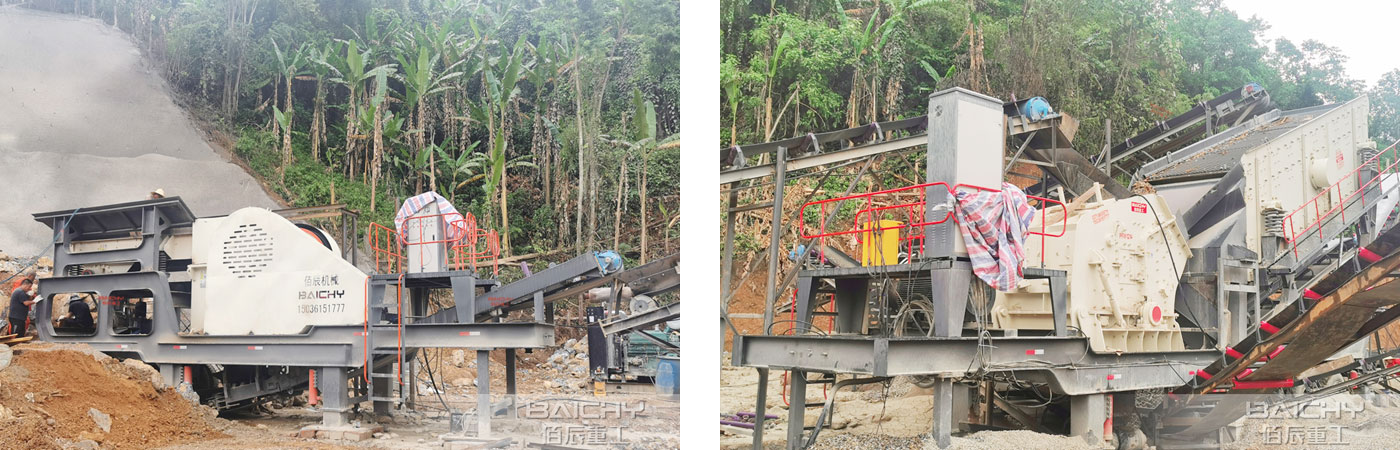

Main equipment in stone crushing plant

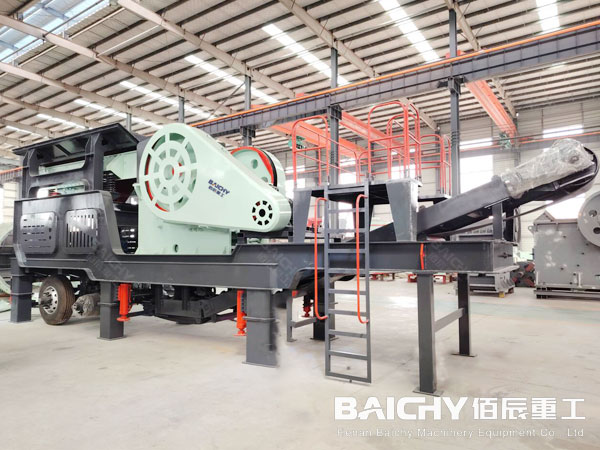

1. Introducing the mobile crushing and screening plant on wheels by Baichy Machinery, this mobile crusher is an exceptional choice for any high-volume crushing and screening application. It is a three stages crushing plant.

2. Our design about mobile crusher plant is built in a two-chassis format. The first chassis is equipped with a vibrating feeder, primary Jaw crusher, bypass conveyor for soil extraction, feeding conveyor, and wheeled mobile chassis with hydraulic legs.

3. The second plant is fitted with a impact crusher, vibrating screen with 3 or 4 decks, feedback conveyor from vibrating screen to impact crusher, and fold-up type stockpile conveyors. This plant comes with wheeled mobile chassis, ensuring easy transportation and positioning.

4. This crushing system provides a production capacity of 100-200 tph, with a maximum feeding size of 500 mm The convenience of a 4.5 meters feeding height adds to the seamless operation of this powerful system. With the additional optional diesel electric generator set, this plant is fully prepared to meet all your operational needs.

5. Central electric control system: Control and monitor the operation of the entire system.

20+ Years of Mining Machinery Industry Experience & More Professional Service

Our service

1. BAICHY machinery has established a management system from initial consultation, solution design, on-site visit, production to shipment, ensure rapid and timely feedback so that the services and technical supports can be provided.

2. Depending on customers’ needs, Baichy’s engineers can provide on-site guidance in infrastructure construction, equipment installation and commissioning, as well as trial operation of entire production line.

3. Spare Parts Supply. Providing accurate assessment of spare parts' consumption to ensure successful implementation of production plan. Rapid supply of high-quality spare parts to ensure continual operation of production lines to prevent loss.

4. We have professional engineers team to design process flowchart and install complete stone crushing plant with capacity of 50tph, 100tph, 200tph, 300tph, 400tph, 500tph, 800tph, 1000tph and so on.
