300tph mobile sand making plant in China

Capacity:

Capacity: 200-350tph

Output size:

0-6mm,6-15mm,15-25mm

Material:

Limestone, pebble, ballast, granite, quartz, iron ore

Configuration:

Mobile jaw crusher plant, mobile cone crusher plant, mobile VSI sand making plant, sand screen, screw sand washer, conveying system, electrical control cabinet

Get Price List

Leave Message

60S Quick response
30 min Technical reply
24h design proposal
365 days service online

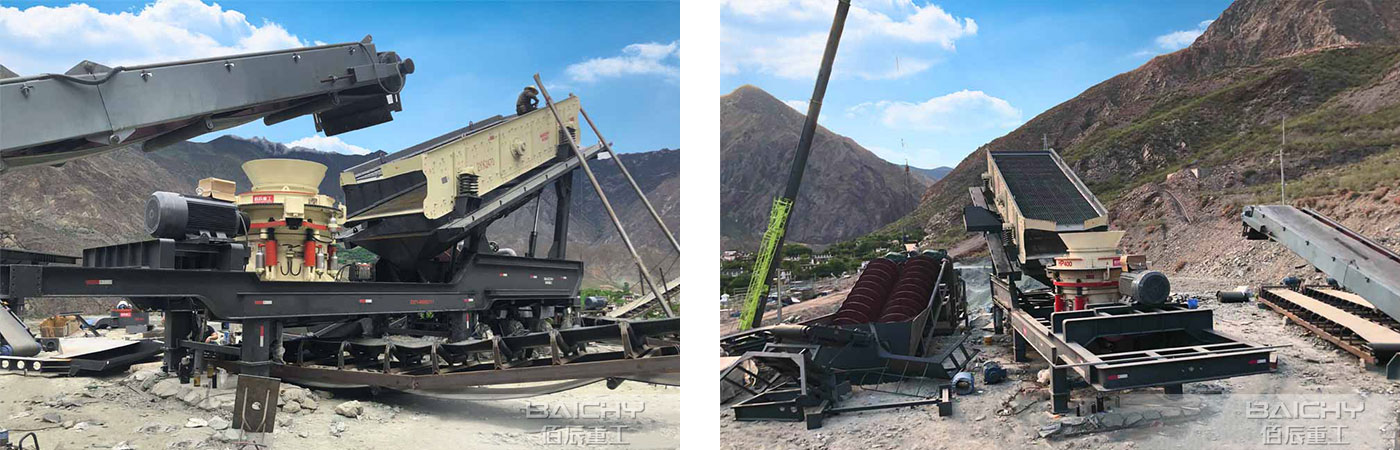

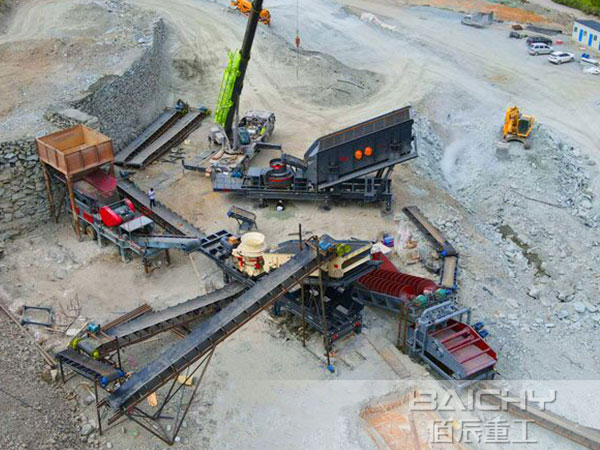

200tph mobile sand making plant introduction

Client plans to produce high quality sand and aggregates for railway construction. As foundational material handling equipment in all plants, stone crushers need to coordinate seamlessly with screens, conveyor systems, and washing equipment. Considering the transportation and site area, we suggest 3 set complete mobile crushing and screening plant. The scheme for complete sand and stone production plant designed by Baichy Machinery has been praised and affirmed by customers.

Mobile stone crusher plant features

1. This is three stages crushing plant. The final products of aggregates and sand are in high quality.

2. The crushers are designed according to the type, size and rigidity of the material to be broken. These machines provide ease of use especially in rugged fields and in areas.

3. It can be easily used with the advantage of easy transport as well as quick installation through hydraulic feet. Through few men all system could be operated with full automation system. It is considerably reduce the cost.

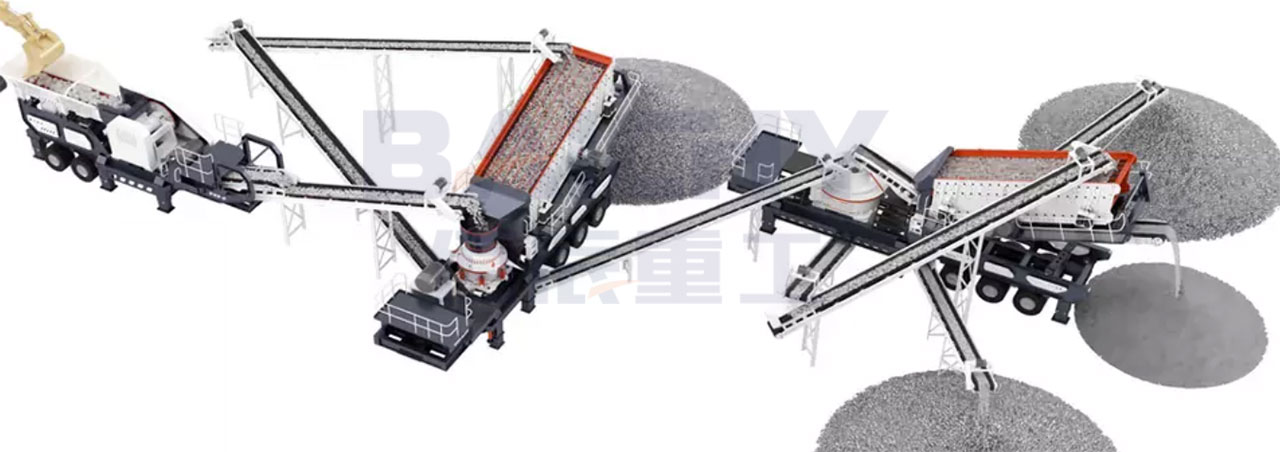

Flowchart of 200tph mobile crusher plant

Main equipment in stone crushing plant

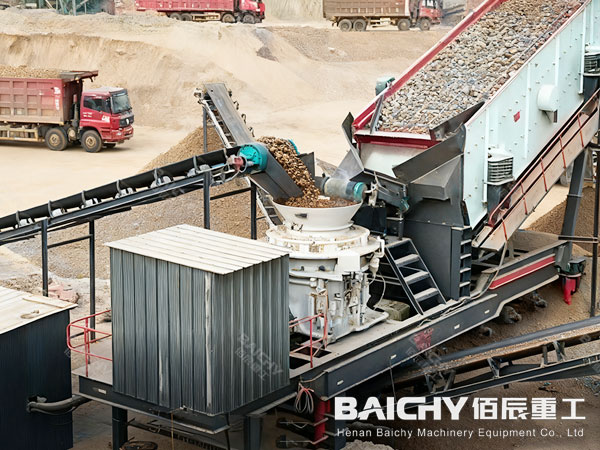

1. Introducing the mobile crushing and screening plant on wheels by Baichy Machinery, this mobile crusher is an exceptional choice for any high-volume crushing and screening application. It is a three stages crushing plant.

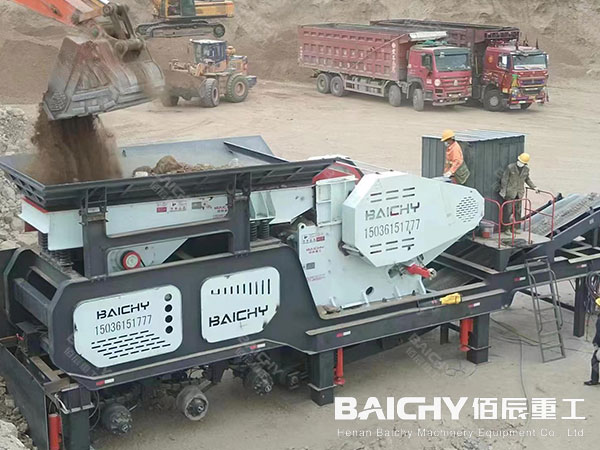

2. Our design about mobile crusher plant is built in a two-chassis format. The first chassis is equipped with a vibrating feeder, primary Jaw crusher, bypass conveyor for soil extraction, feeding conveyor, and wheeled mobile chassis with hydraulic legs.

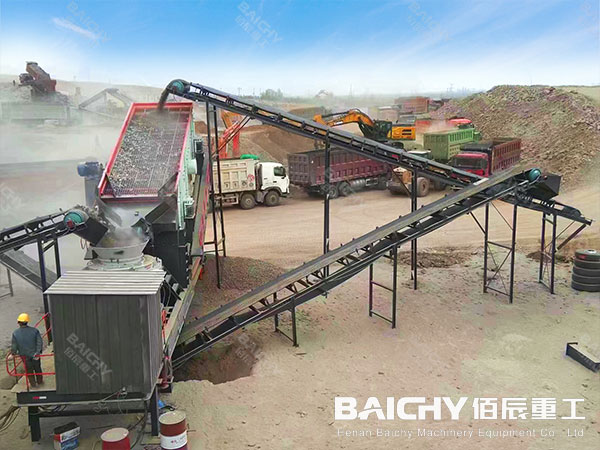

3. The second plant is fitted with a impact crusher, vibrating screen with 3 or 4 decks, feedback conveyor from vibrating screen to impact crusher, and fold-up type stockpile conveyors. This plant comes with wheeled mobile chassis, ensuring easy transportation and positioning.

4. This crushing system provides a production capacity of 100-200 tph, with a maximum feeding size of 500 mm The convenience of a 4.5 meters feeding height adds to the seamless operation of this powerful system. With the additional optional diesel electric generator set, this plant is fully prepared to meet all your operational needs.

5. Central electric control system: Control and monitor the operation of the entire system.

20+ Years of Mining Machinery Industry Experience & More Professional Service

Our service

1. BAICHY machinery has established a management system from initial consultation, solution design, on-site visit, production to shipment, ensure rapid and timely feedback so that the services and technical supports can be provided.

2. Depending on customers’ needs, Baichy’s engineers can provide on-site guidance in infrastructure construction, equipment installation and commissioning, as well as trial operation of entire production line.

3. Spare Parts Supply. Providing accurate assessment of spare parts' consumption to ensure successful implementation of production plan. Rapid supply of high-quality spare parts to ensure continual operation of production lines to prevent loss.

4. We have professional engineers team to design process flowchart and install complete stone crushing plant with capacity of 50tph, 100tph, 200tph, 300tph, 400tph, 500tph, 800tph, 1000tph and so on.
