Modular Stone Crushing Plant

Modular Stone Crushing Plant

Modular stone crushing plant is a flexible and customizable solution for processing various types of materials, such as aggregates, minerals, ores, and recycled concrete materials.

  • <600mmFeed Size
  • 75-380kwMotor Power
  • 50-300tphProcessing capacity

What is modular crushing plant?

The modular Crushing and Screening Plant consists of several pre-designed stationary crusher sections and screen unit. It offers a highly convenient solution for rapid aggregates production. Each part of the stone crushing plant and the project layout are designed in advance. Modular crushing plant can be easily transported, assembled, and reconfigured to meet specific production requirements.
crushed stone stone aggregates application

modular crushing plant01
concrete crusher stone aggregates application

Why choose modular crushing plant?

1. Modular design. Compared to the dispersed fixed stone crushing plant, our modular and integrated design offers more flexible equipment layout and a cleaner, more rational on-site setup.

2. High-quality main machines. The main crushers are high-performance, high efficiency, high output, and easy operation and maintenance for stable and reliable performance.

3. Ready to work. With a high degree of equipment integration, our products can be quickly put into operation after simple hoisting, providing convenient and swift on-site installation.

4. Foundation-Free installation: The frame structure layout eliminates the need for on-site concrete foundation construction for each crushing and screening equipment, saving time and costs. Additionally, it allows for easier and more flexible equipment relocation without repeated investment, significantly reducing pre-production preparation time and costs.



Get Price List
  • High Quality

    Modular crushing and screening plant includes separated modular jaw crusher plant, modular cone crusher plant, modular VSI plant, modular vibrating screen.

  • Customized Design

    All above modular plants are designed to fit and work together interchangeably. And they are ready to work onsite.

  • Good Performance

    The open design and high-quality maintenance platforms prioritize the convenience of maintenance personnel.

Product features

The modular structure can be transported in standard shipping containers plus a flat rack for the crusher and can be bolted together quickly on site with basic tools.

  • modular jaw crusher plant

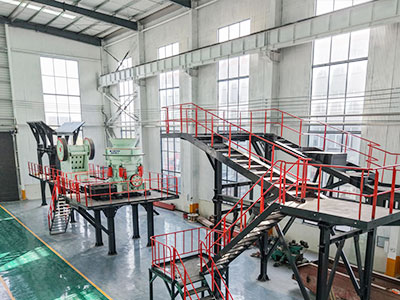

  • modular screening plant
  • modular sand making plant
  • modular impact crusher plant

Working principle

The modular stone crushing and screening plant are bolted together on site. During operation, the main machine and auxiliary equipment are driven by power to operate. Materials enter the crushing mainframe from the hopper or belt conveyor for primary crushing. Then the crushed material is discharged to modular screening plant by belt conveyor. The required size is screened and transferred to truck or piles.

modular crushing and screening plant drawing

Specification

Model Vibrating feeder Jaw crusher Vibrating screen Belt conveyor Capacity Power system Chasis
SKPZ46-1548 ZSW850X3000 PE400X600 3YK1548 B650x10 X 3sets 15-60 TPH

Electrical Control or Generator

Set according to Jobsite

Tracked mobile,wheel

mobile type,or skid frame

SKPZ57-1848 ZSW960X3800 PE500x750 4YK1848 B650x10 X 4sets 50-100 tph



*The output will vary according to different materials, feed particle size and other factors
