Mobile cone crusher-Baichy Machinery

Product Center / Mobile Crushing Plant / Mobile Cone Crusher Plant

Mobile cone crusher plant is transferable crushing machines used to reduce the size of rocks and other materials in aggregates production and mining operations. Cone crusher has a higher output capacity with low operating and wear costs.

≤50-300mmFeed Size
90-265kwMotor Power
30-600t/hProcessing capacity

Get Quotes Leave Message

60S Quick Response
30Min Technical Reply
24H Design Proposal
Email:[email protected]

What is mobile cone crusher plant?

The core crushing equipment of mobile cone crushing plant is cone crusher machine. It is an integrated complete set of stone crushing unit. The cone crusher, vibrating screen, feeding and conveying equipment are all installed on a movable device. The crushing plant is compact, strong coordination, and simple structure, which can be directly driven to the site for crushing and screening operations. It can be used for coarse crushing, medium crushing, and fine crushing of various types of hard stone and ores.

How to choose suitable mobile cone crusher plant?

Cone crushers include models of spring cone crushers, Simmons cone crushers, hydraulic cone crushers and DG cone crushers, etc. According to use purpose, it is divided into three types: coarse crushing, medium crushing and fine crushing. The mobile cone crusher can also be made into different crushing plant accordingly. The choice of mobile cone crusher plant should be based on the actual situation,site size grain size requirements, capacity and other factors to choose the appropriate model.

According to material properties. That is the key factor affecting production efficiency and capacity. Therefore, before purchasing the mobile cone crusher plant, the user must have a detailed understanding of the humidity, hardness, physical and chemical properties of the materials to be crushed.

According to finished granularity requirement. Because each user has different requirements for product particle size, the selection of equipment model will also be affected by it. If users want fine-grained materials, they can choose short-head cone crusher; if they want coarse-grained materials, they can choose standard or medium-sized cone crusher. In short, users must have a clear understanding of the product particle size requirements they want to achieve.

Since the prices of each type of mobile cone crusher are different, users must consider their own production conditions when purchasing a cone crusher, and strive to obtain large returns with a small investment.

Get Price List

High Quality

Incorporated design. It has high standard requirements on steel structure and high strength wear-resistance parts to crush even hardest rocks(400Mpa).
Customized Design

Truck mounted and easy to move. With support legs on truck,quick to set-up. The supporting legs height can be adjustable, adopt hydraulic controling parts.
Good Performance

Advanced liner technology for easy wear parts replacement.Easy and Simple to maintain and operate.

Product features

Through control system, maintenance, setting modifications, production follow-up and data extraction etc, all parameters can be set up close to the crusher or remotely from the control room.

Working principle

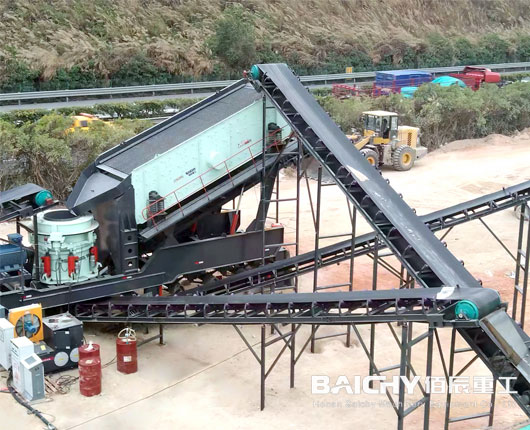

How does mobile cone cruhser plant work? In the mining and quarry industry, mobile stone crusher plant is composed of primary crushing and screening station and secondary one, belt conveyor, etc. Every crushing station is an independent working unit, they can respectively assume their different responsibility, and the belt conveyor is responsible for material transmitting and piling up between each crushing station. Mobile cone crusher plant is usually as secondary crushing machine to process rocks or ores from priamry jaw crusher plant. After cone crusher machine crushing, hard crushed stone is fed to vibrating screen to get different size material, 0-5mm, 5-10mm, 10-20mm, 20-40mm or some other required size. Vibrating screen is designed to be same level with cone crusher. The oversized material from first layer could be fed to cone crusher directly to crush again. Other required size is sent to stock ground by belt conveyor. Compared to stationary stone crusher plant, iIt has good mobility and can extend together with the raw materials site or construction site and has many types of combinations to satisfy the processing needs of different materials.

Specification

Model (Primary Stage)	YDPZ57-8530	YDPZ80-8530	YDPZ69-9638	YDPZ96-9638	YDPZ75-1142	YDPZ106-1142	YDPZ116-1242	YDPZ116-1242
Vibrating Feeder	ZSW8530	ZSW8530	ZSW9638	ZSW9638	ZSW1142	ZSW1142	ZSW1142	ZSW1142
Jaw Crusher	PE500×750	C80	PE600×900	C96	PE750×1060	CJ106	CJ116	CJ116
Feeding Size(mm)	≤425	≤400	≤500	≤480	≤630	≤580	≤680	≤680
Belt Conveyor	B650	B650	B800	B800	B1000	B1000	B1000	B1000
Motor Power（kw）	7.5+45+4	7.5+55+4	11+55+4	11+90+4	15+110+4	15+110+4	15+132+4	15+132+4
Capacity (t/h)	40-130	50-160	90-180	60-160	110-380	150-300	200-400	200-400
Overall Size（mm）	10000x2300x4020	10000x2300x4020	11500x2300x4120	11600x2250x3710	12500x2550x4570	12850x2280x3950	13000x2550x4150	13000x2550x4150
Model (Secondary Stage)	YDPZ1210- 1548	YDPZ900- 1548	YDPZ1214- 1860	YDPZ160- 1860	YDPZ1315- 2160	YDPZ300- 2160	YDPZ1320- 2460	YDPZ400- 2460
Crusher	PF1210	PYB900	PFW1214	CS160	PFW1315	HP300	PFW1320	HP400
Feeding Size(mm)	≤400	≤115	≤430	≤205	≤500	≤210	≤500	≤250
Capacity (t/h)	70-130	50-900	100-180	109-349	130-220	110-380	160-350	180-560
Power（kw）	90	55	132	160	200	220	250	280
Vibrating Screen	3YK1548	3YK1548	3YK1860	3YK1860	3YK2160	3YK2160	3YK2460	3YK2460
Capacity (t/h)	30-275	30-275	65-586	65-586	81-720	81-720	100-810	100-810
Power（kw）	15	15	22	22	30	30	30	30
Belt Conveyor	B650	B650	B800	B800	B1000	B1000	B1000	B1000
Plant Capacity (t/h)	60-100	60-100	80-150	80-150	130-250	130-250	200-280	240-320
Overall Size（mm）	12500×2500×5600	12500×2500×5600	14500×2890×6600	14500×2890×6600	15500×2960×6850	15500×2960×6850	14500x2980x7170	16500×2960×7170
