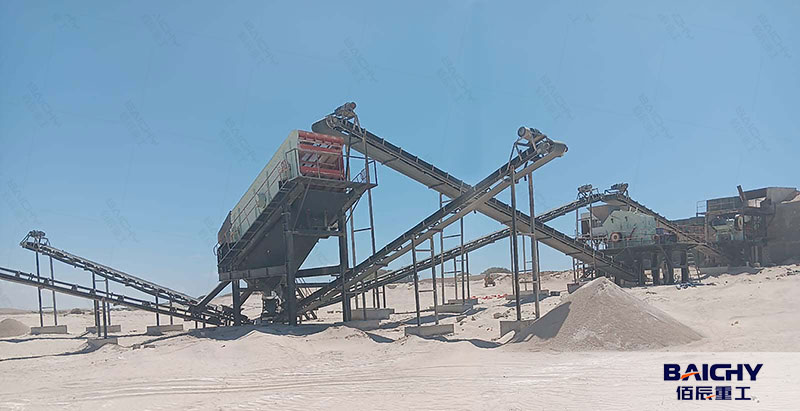

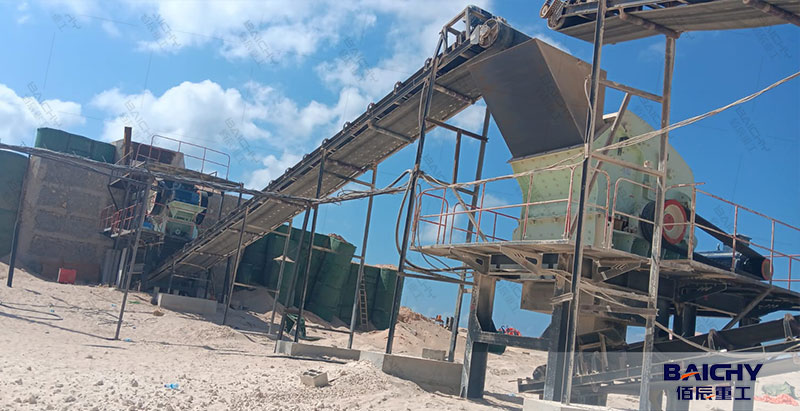

250-300tph sandstone crushing plant in Somalia

Sandstone is a sedimentary rock, mainly composed of sand particles, of which the sand content is greater than 50%. Most sandstones are composed of quartz or feldspar, which are the most weathering-resistant minerals and are more common in arid deserts. Customers from Somalia want to build a sandstone crushing line to provide raw materials for local road construction.

We recommend a two stage crushing process with screening plant. The characteristics of this design are: high degree of automation of the crushing production plant, low operating cost, high crushing rate, energy saving, high output, low pollution, easy maintenance, and the sand and gravel aggregates produced meet the construction standards, with uniform product size, good particle shape, and reasonable grading.

Now let's take a closer look at this sandstone crushing plant

Raw material: sandstone
Finished product: 0-6mm, 6-15mm, 15-40mm
Capacity: 250-300 t/h
Main machine list: vibrating feeder ZSW1100X4200, European jaw crusher C100, impact crusher PFW1320, vibrating screen 3YK2160, belt conveyors, electrical cabinet

Process for sandstone crushing plant

1. Use the C series jaw crusher to perform the first pre-crushing (coarse crushing) of sandstone by extrusion to reduce the rock diameter and reduce the production pressure of the impact crusher;
2. Then use the impact crusher to perform the second crushing (medium crushing) of the stone by riprap impact, so that the micro cracks of the aggregate produced by the jaw crusher will develop further, and finally the aggregate will be crushed again from the micro cracks, completing the second crushing and shaping of the aggregate;
3. The final crushed stone is screened by the vibrating screen, and the material larger than 40mm enters the impact crusher for re-crushing, and the material smaller than 40mm is screened into 0-6mm, 6-15mm, 15-40mm finished materials

Baichy Machinery has a history of more than 20 years. It not only produces a full set of crushing and sand making equipment, but also provides EPC project general contracting services, including plant site selection and construction, production line design and installation, and production and operation technical training. Welcome to consult online to get your exclusive plant construction plan.
