Limestone mobile crushing plant 150 tph in Columbia

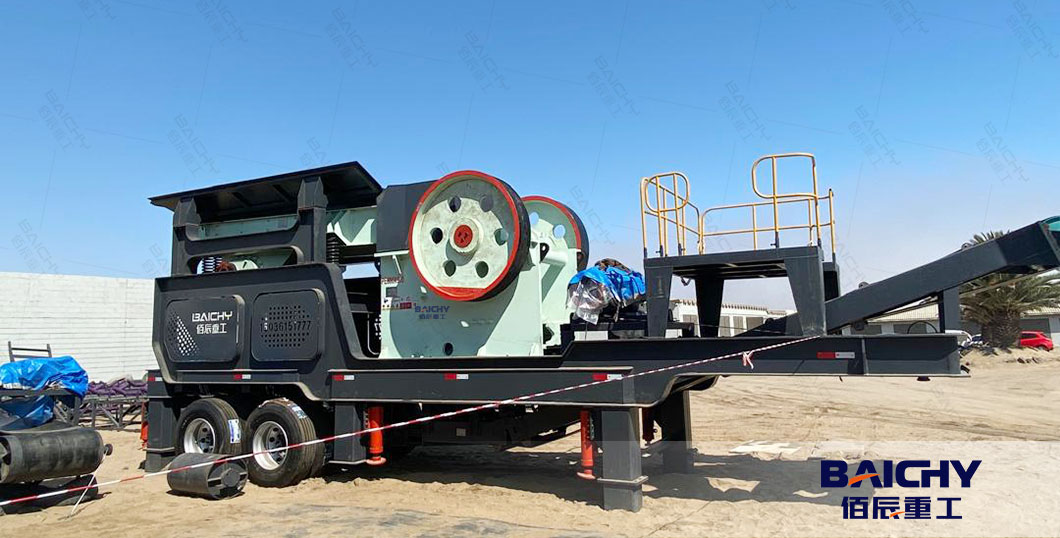

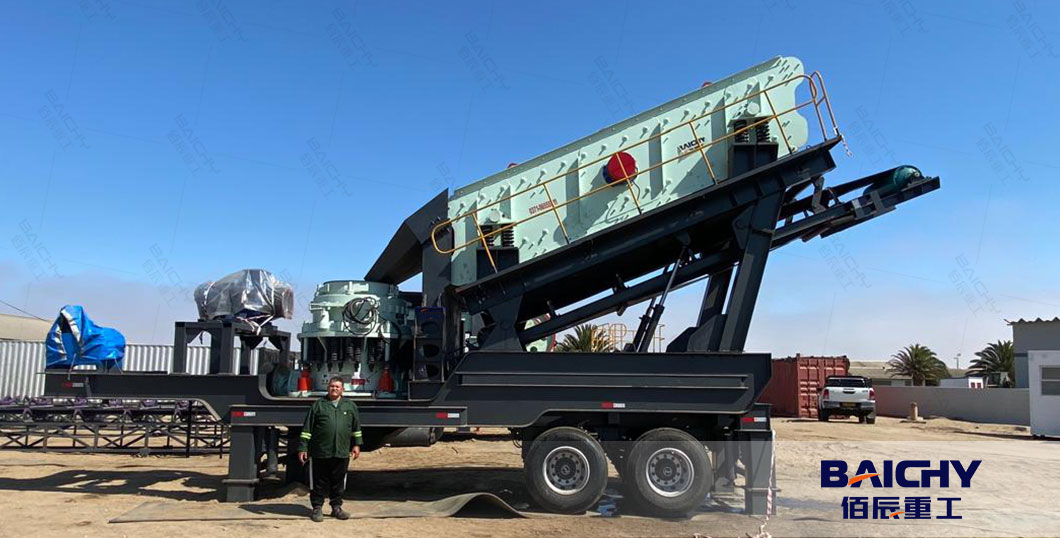

In 2023, we shipped one complete mobile stone crushing and screening plant to Columbia. Now the crushing plant is installation. This mobile stone crusher is used to crush limestone with capacity 100-150tph. What machines are included in the mobile crushing plant?

Here is a machine list for a 100-150 tph mobile stone crusher plant

Primary Equipment

1. Mobile Crusher Plant Chassis. Provides mobility for the mobile crusher plant to move between different work sites.

2. Primary Crushing Equipment. Jaw Crusher PE600x900 is used for primary crushing to handle large chunks of stone.

3. Secondary Crushing Equipment. Cone Crusher CS220 or Impact Crusher PFW1214 is used for secondary crushing to handle medium to high hardness stones.

4. Vibrating Screen. 3YK2160 Vibrating Screen is used for screening different sizes of crushed materials.

Auxiliary Equipment

5. Feeder. Vibrating Feeder. GZD1300x4900 Vibrating Feeder is uniformly and continuously feeds stone material into the crusher.

6. Belt Conveyor. B800 Belt Conveyor transports materials and connects various crushing and screening units.

7. Control System. PLC Control System is to monitor and control the operation of the entire crushing production line. ouchscreen or remote control system for ease of operation and monitoring.

Optional Equipment

8. Dust Removal System. Dust Collector is to reduces dust during the crushing process to protect the environment. Example: Baghouse Dust Collector.

9. Power System. Generator Set: Used if there's no power supply on-site. Example: Cummins or Caterpillar Generator Set.

Other Supporting Equipment

10. Hydraulic System. Hydraulic Station is to controls hydraulic adjustment and protection of the crusher. Example: Hydraulic pump station and piping system.

11. Mobile Support System. Legs and Brackets: Supports and stabilizes the equipment during operation.

Installation and Testing Equipment

12. Installation Tools and Equipment. Cranes, forklifts, etc., for equipment installation and testing.

13. Testing Equipment. Vibration testers, noise detectors, etc., for equipment debugging and performance testing.

This machine list can be adjusted based on specific requirements and site conditions. Ensure that all equipment specifications and models meet the production capacity of 100-150tph and that they can work efficiently together. Good luck with the operation of your mobile stone crusher plant!

Baichy Machinery Company is headquartered in Zhengzhou, Henan. As a manufacturer specializing in the production of stone crushers for more than 20 years, it has a good reputation in the industry. If you have any questions about stone crushers, please click on the online customer service, which will answer you 24 hours a day.
