Marble Crushing And Grinding Plant

Marble is a rock resulting from metamorphism of sedimentary carbonate rocks, most commonly limestone or dolomite. The leftover material of marble has high value for secondary use, which can be processed into fines and widely used in the chemical industry. Marble has a rating of three on the Mohs hardness scale, which indicates that it is a soft stone. So in marble stone crushing plant, the impact crusher is usually as secondary crushing process.

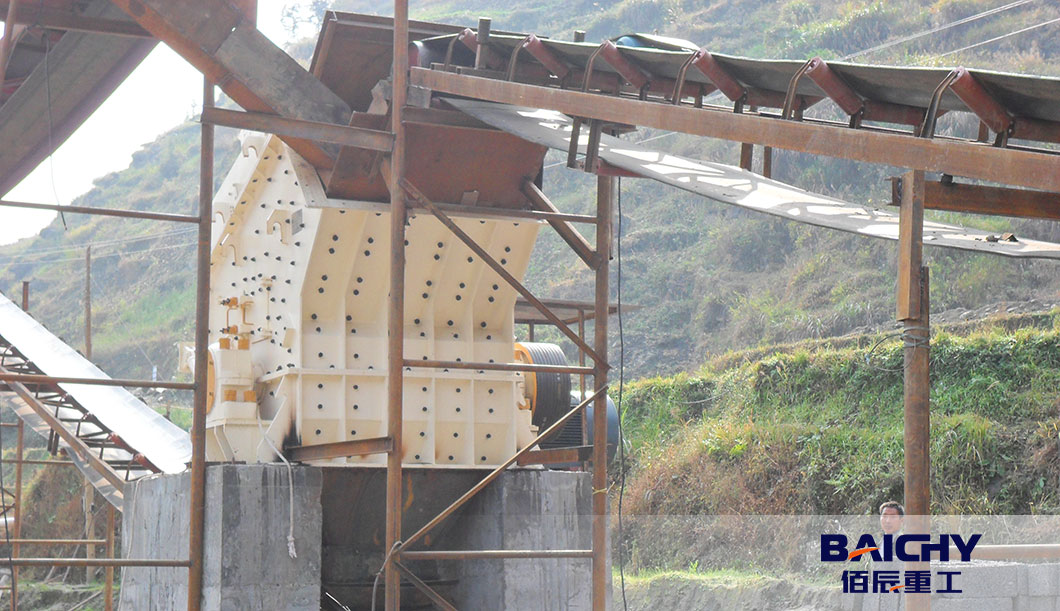

About Impact crusher

Impact crushers are named after the method they use in reducing larger blocks of rocks to smaller grain sizes. It adopts the latest manufacturing technology and unique structural design. The finished product is cubic, free of tension and cracks, and has a very good particle shape. It can crush various coarse, medium and fine materials (granite, limestone, concrete, etc.) with a feed size not exceeding 500mm and a compressive strength not exceeding 350Mph. It is widely used in various ore crushing, railways, highways, energy, cement, chemicals, construction and other industries. The discharge particle size can be adjusted and the crushing specifications are diversified.

Impact Crusher Product Features

1. The impact crusher has a large feed port, a high crushing chamber, and is suitable for materials with high hardness, large block size, and less stone powder;
2. The gap between the impact plate and the hammer can be easily adjusted to effectively control the discharge particle size and the particle shape is good;
3. The impact crusher has high chromium hammer, which is impact-resistant, wear-resistant, and has a large impact force;
4. The impact crusher has a keyless connection, which is easy to maintain and economical and reliable;

Marble crushing and powder making process

The first stage: crushing stage

The large lump materials after coarse crushing by jaw crusher primarily, then fed to impact crusher for secondary crushing. The crushed material shall be graded by screening equipment. If it does not reach, it shall enter the medium crushing equipment for crushing.

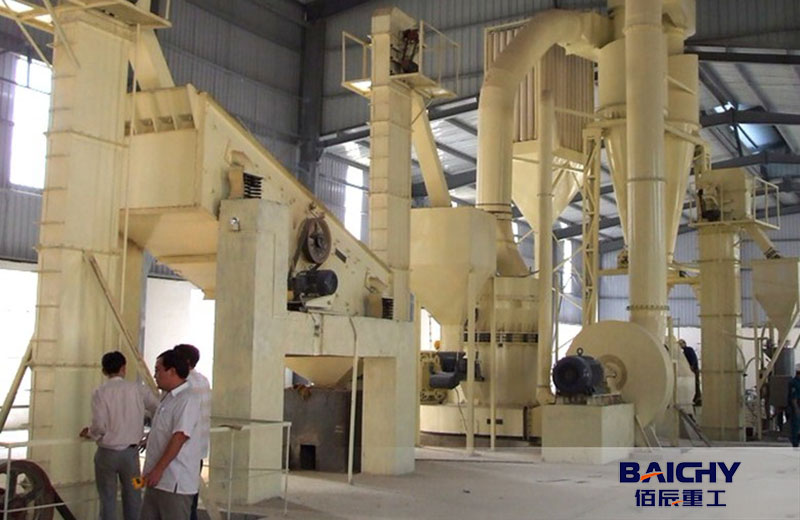

The second stage: grinding stage

After the large pieces of materials are crushed by jaw crusher, they are sent to the storage bin by bucket elevator. The electromagnetic vibrating feeder sends the materials to the raymond mill grinding chamber for grinding evenly, quantitatively and continuously. The ground powder is blown to the powder selector for sorting by the blower. The unqualified powder after sorting falls back to continue grinding, and the qualified fine powder is sent to the storage bin by pipeline. Finally, it is output through the discharge valve as the finished powder. The whole process flows under negative pressure. The increased air volume of the circulating air path is discharged through the exhaust gas pipeline between the fan and the main engine, and enters the small cyclone collector for purification.

Baichy Machinery has been engaged in the mining machinery industry for more than 20 years, integrating design, production, research and development, and sales. Click online consultation  to learn about the manufacturer's latest stone crusher quotation details at any time. Baichy sincerely looks forward to your cooperation.

People Also Frequently Asked For - FAQ

1.What is a rock crushing plant?

A crushing plant setup is a series of machines that are designed to take large pieces of concrete, asphalt or rock and break them into smaller pieces. The crushed material can then be used for construction, landscaping, and other purposes.

2.How does a stone crushing plant work?

A stone crushing plant typically works by crushing large stones into smaller pieces. The crushed stones are then transported through a conveyor belt to a storage area, where they are screened, separated, and sorted according to size and other criteria.

3.What is marble grinding?

The working principle of the Marble Grinding Plant mainly includes four stages: crushing, grinding, classifying and powder collecting.
