MFW seriess Raymond grinding mill machine is a new type of fine powder grinding equipment introduced by Baichy Company on the basis of many years of research and development of industrial grinding mill.  MFW is learning from the classic roller design of Ramond mill, innovative change the spring connection structure, so that the mill in the process of work can not only avoid the loss of bulk materials to the spindle and bearing, but also increase the grinding pressure of the roller on the material, so as to improve the yield. Large output, low energy consumption and advanced structure are the characteristics of MFW grinding mill machine, which can meet customers' demand for fine powder production. Today two sets ramond mill MFW175 is finished in Baichy factory. They will be ship to customer site for limestone powder prouduction.

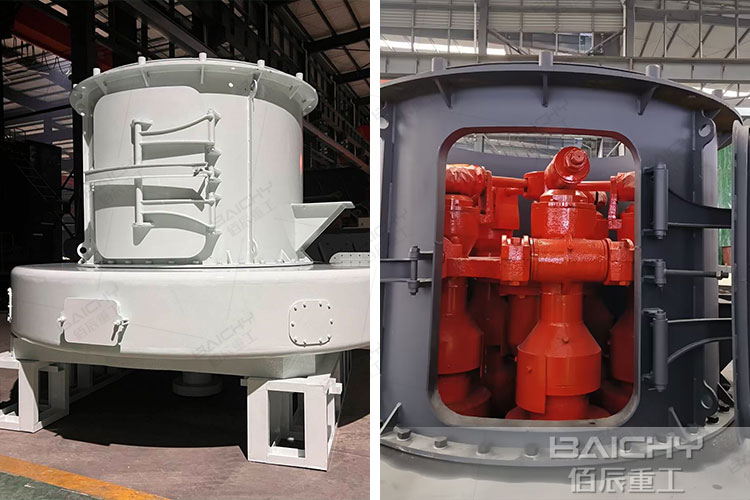

MFW-raymond-mill


How does MFW grinding mill work?raymond mill price

Let learn the working principle fistly. The qualified materials after crushing are sent into the main machine grinding room uniformly and quantitatively continuously by the variable frequency belt feeder. The material after grinding is sent to the separator by the fan air flow for classification. Under the action of the analyzer, the material that does not meet the fineness requirements falls into the grinding room for re-grinding, and the qualified material enters the cyclone powder collector with the air flow through the pipeline for separation and collection. The finished powder is discharged by the discharge device. The separated air flow enters the fan through the air duct at the upper end of the cyclone collector. The system operates under positive and negative pressure. The equipment is equipped with pulse dust collector, which is environmentally friendly.

MFW-raymond-mill working principle


Which area is MFW grinding mill applied?

MFW grinding mill is updated product compared with traditional Raymond mill, YGM series grinding mill. It is widely used in power plant environmental protection limestone desulfurization agent preparation, heavy calcium carbonate processing, large non-metallic ore powder, building materials and chemical, solid fuel grinding. The applicable materials are limestone, calcite, quicklime, dolomite, barite, talc, calcium carbonate, gypsum, bentonite, kaolin, petroleum coke, coal and so on

raymond  mill roller


Why choose MFW raymond mill?

Let's study the performance characteristics:
1. Volute design, lower energy consumption. MFW grinding mill machine adopts no-resistance air inlet volute design, tangential airflow is smoother, better material flow, lower energy consumption.

2. Curved blade design, higher production efficiency. MFW grinding mill machine using curved blade design, can effectively increase the material grinding work area, improve production efficiency.

3. Bevel gear integral transmission, efficiency significantly improved Bevel gear integral transmission, smooth transmission, transmission chain reduction, precise transmission ratio, energy loss sharply reduced; Compact structure, convenient installation and adjustment, efficiency significantly improved.

4. The frequency conversion type separator to improve the efficiency of powder selection and powder collection.
Frequency conversion separator motor high efficiency and energy saving, F grade insulation, protection class IP54; The separation structure is adopted between the inner cylinder of the separator and the mixed air powder flow to effectively improve the efficiency and precision of powder selection.

5. Unique air self-circulation system, energy saving and environmental protection.  Unique air self-circulation system, less dust discharge, the production line can be equipped with pulse dust collector, high dust removal efficiency, low emission concentration, basically realize the workshop dust-free operation.

MFW-raymond-mill case in Egypt

More information, welcome to contact us any time. Email: hnbc@baichy.com


People Also  Frequently Asked For - FAQ



What is the Raymond mill used for?

Raymond mill is also called Raymond roller mill. It is a new type of high-fineness grinding mill with high efficiency and closed circulation, which can completely replace the ball mill. This kind of machine is commonly used in cement plants for raw materials fine grinding, such as limestone, coal, gypsum, etc.


What is the difference between a ball mill and a Raymond mill?

Ball mill is a kind of common equipment for material grinding in mineral processing production line. The ball mill has high output and higher efficiency. Raymond mill is suitable for fine powder processing of graphite, talc, kaolin, limestone and other materials with high material fineness requirement.


What is the history of Raymond mill?

In 1906, C.V. Grueber founded a machinery factory in the southern suburbs of Berlin. Using his patents obtained in the United States, he produced the first Maxecon mill and used it as the coal grinding equipment for the MOABIT power station. The grinding power can reach 5TPH.
