Limestone Grinding Mill

Limestone grinding mill is closed circuit system to crush limestone lumps to fine powder 200-500 mesh. Raymond mill is main equipment to process limestone powder.

Limestone powder is commonly used in industries such as construction, agriculture, and manufacturing. The grinding mill plant is designed to efficiently crush, grind, and classify limestone into different particle sizes as needed.

About Limestone Mill Machine

A limestone powder grinding mill plant is a facility where limestone is ground into a fine powder for various industrial applications. Limestone is a sedimentary rock composed principally of calcium carbonate (calcite) or the double carbonate of calcium and magnesium (dolomite). Powdered limestone is used in the textile, paint, paper, rubber, glass and plastic industries amongst others. They are mostly used as fillers. Apart from this, it is used in the steel industry for the production process where limestone is used to remove impurities.

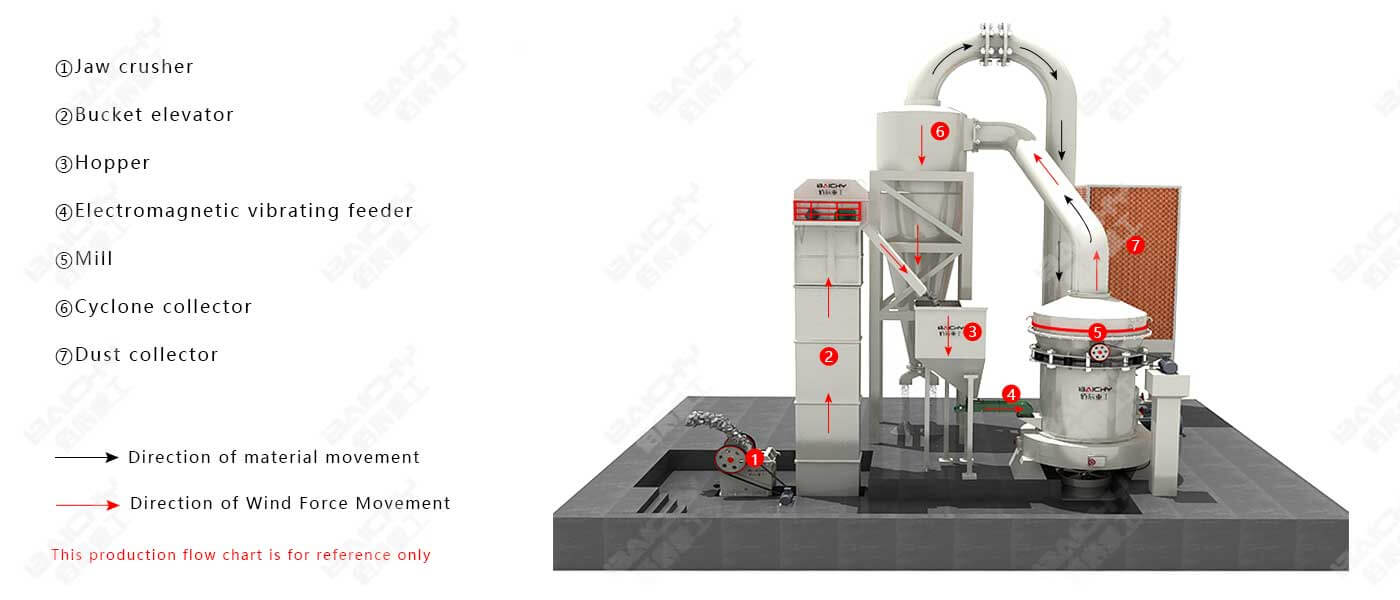

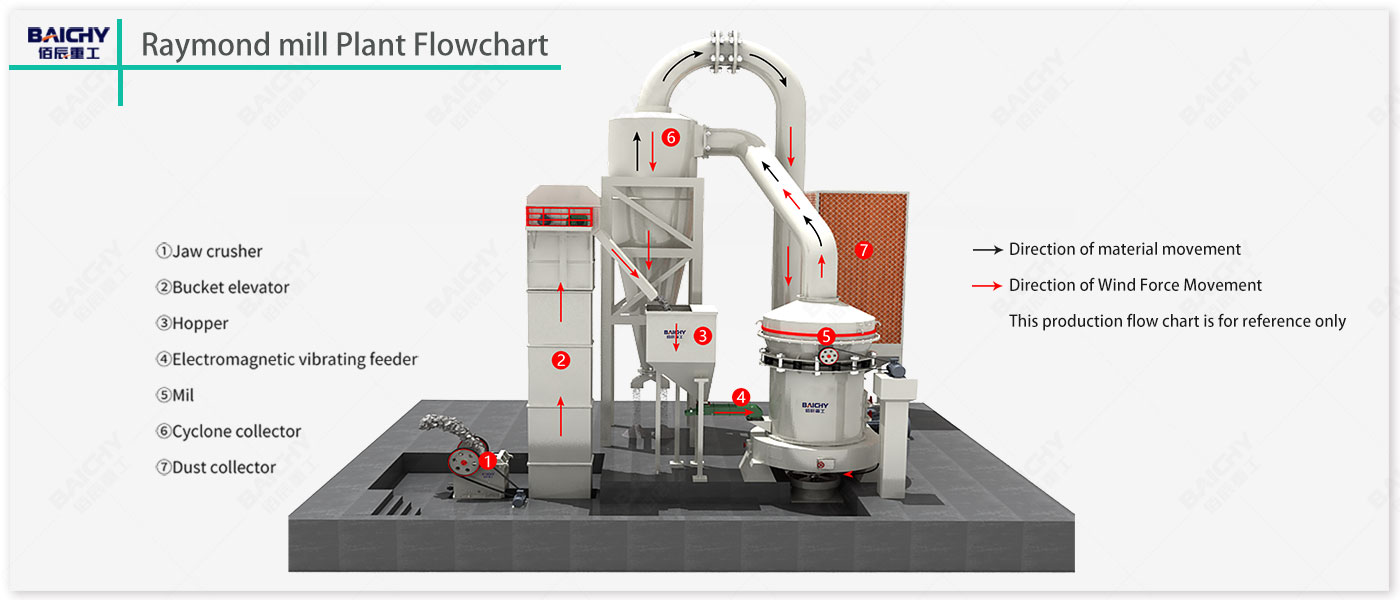

Limestone Grinding Mill Plant Process: Crushing, Grinding, Powder Selection & Packaging

1. Crushing. It is to break large into appropriate granularity to meet feeding requirements of raymond mill machine. The common crushing machine is jaw crusher, hammer crusher and so on.

2. Grinding. The small pieces of crushed limestone are sent to the silo by the bucket elevator, and then evenly and quantitatively sent to the grinding chamber of raymond mill by the vibrating feeder. It is main porocess to produce limestone powder products, according to different fineness requirements. The common grinding mill is R series raymond mill, HGM raymond mill, MTW raymond mill and so on.

3.Powder selection. The pulverized limestone powder is graded and screened by a classifier to ensure that each particle of powder meets the specified standards. The unqualified powder will be separated by the separator and returned to the main machine for re-grinding. It is to sort out qualified limestone powder. Collect the coarse particle to return to grind again.

4. Packaging. Qualified limestone powder is generally stored in storage silos or packaged before it can be sold as commodities.

Grinding Mill Plant Specification Sheet

Capacity		1-2 tph	2-4 tph	4-7 tph	7-12 tph	12-20tph
Raymond mill	Model	YGM75	YGM95	YGM130	YGM160	YGM190
	Main grinder(kw)	18.5	45	90	132	185
	Blower(kw)	15	37	90	132	185
	Classifier(kw)	2.2	5.5	7.5	15	22
Jaw crusher	Model	PE150X250	PE200X350	PE250X400	PEX250X750	PEX250X750
Jaw crusher	Motor(kw)	5.5	7.5	15	22	22
Bucket elevator	Model	T210X7m	T210X7.5m	T250X10m	T315X10m	T400X10m
Bucket elevator	Motor(kw)	3	3	4	4	4
Feeder	Model	GZG-2	GZG-4	GZG-4	GZG-5	GZG-5
Feeder	Motor(kw)	0.06	0.15	0.15	0.45	0.65
Silo	Customized according to actual situation

* The output will vary according to different materials, feed particle size and other factors

Limetone Mill Plant Features

1. Reasonable layout, small area. Compact structure design, vertical structure, small area. It has own production system.

2. Energy saving, stability and high efficiency. The production line has high output and stable operation. It adopts isolated cyclone powder collector, which can effectively improve the efficiency and precision of powder selection.

3. Simple operation and maintenance. Important parts are made of high quality steel, the whole machine durable and reliable. Superior performance, stable air volume and pressure, low failure rate, more convenient installation and debugging.

4. Green environmental protection, no dust spillover. Using negative pressure system, no dust pollution. Feeding system, grinding system and finished product conveying system are equipped with efficient dust removal device to achieve dust-free operation.
