Heavy duty mobile stone crusher 50ton per hour

Mobile stone crushers 50tph are track-mounted or wheel-mounted rock crushing machines that are easily movable on and between production sites. Mobile crushers can replace stationary crushing systems, which reduces the need for transportating and thus reduce operational costs.

Mobile crusher are often referred to as mobile stone crushing plants. They are wheel type crushing machines which can maximise productivity and reduce operating costs – while increasing safety and reducing environmental impact. The basic components of mobile crushers are almost the same as for stationary ones, but with the added advantage of complete mobility.

Wheel type mobile stone crusher 50 tph combines feeding, crushing, conveying and screening tasks, one machine can function as a complete production plant. It could be made into different types on request.

1. With jaw crusher, belt conveyor and simple mobile frame.

Main techinical parameter:

Jaw crusher: PE400X600
Belt conveyor: B500X6m
Max feeding size: 210mm
Motor: 30+3 kw
Mobile type: tyre wheels
Hydraulic supporting legs: yes

Features:

1. Deep crushing cavity to increas capacity and output of the feeding;
2. Large crushing ratio, uniform products particle size;
3. Safe and reliable lubrication system, convenient replacement parts, small maintenance workload;
4. Simple and reliable structure, low operation costs;
5. The discharging size of jaw crusher can be adjusted to meet the requirements of different users;
6. Easy to move, save cost

2.With vibrating feeder, jaw crusher, belt conveyor and simple mobile frame

Main techinical parameter:

Vibrating feeder: ZSW6520
Jaw crusher: PE400X600
Max feeding size: 210mm
Motor: 5.5+30+3 kw
Mobile type: tyre wheels
Hydraulic supporting legs: yes

Features:

1.High degree of automation. The excavator could send material to vibrating feeder directly. Then vibrating feeder feeds large material to stone crusher evenly to keep high crushing efficiency.
2.Fast into Production
The integrated design avoids long construction period of equipment, which greatly shortens the period of equipment putting into production.
3. Easy to Move, Fast to Save. Easy to move, which can achieve rapid transfer and rapid production, to achieve the goal of how fast and good save of the construction of sand crushing plant.
4. It is used for small scale quarry plant, construction waste crushing and recycling plant, road and airway project and so on.

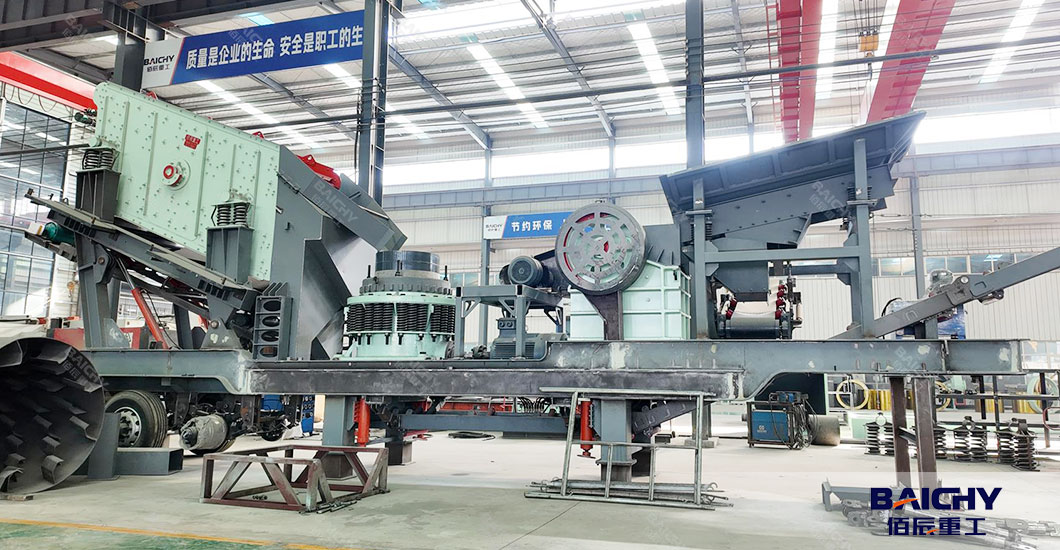

3.Integrates crushing unit, conveyors and screen in the same truck frame

Main techinical parameter:

Vibrating feeder: ZSW6520
Jaw crusher: PE400X600
Secondary crusher: impact crusher PF1010 OR cone crusher PYB900
Vibrating screen: 2YK1548
Max feeding size: 210mm
Motor: 81 kw OR 99kw
Mobile type: tyre wheels
Hydraulic supporting legs: yes

Features:

1.Low Investment Cost. The mobile crushing plant greatly reduces the use of hopper bin, reduces the failure rate in the later stage, and reduces the investment cost.

2.Reasonable Configuration, Advanced Equipment. Compact Structure, Save Working Space. It incorporates all the equipments together on one truck, from primary crushing process, to secondary crushing and screening process. It is more efficient.
3.Save time and money. Mobile crusher plant can start to work soon even in the bumpy groud without reinstallation, so it saves more time and money than fixed crushing plant which needs to install individual equipment one by one.
4.The generator set can be equipped, in order to work normally under complex situations, such as the situation of no power of sudden power off, ensuring continuous operation and reducing unnecessary loss.
5.This machine is widely used in mineral mining , stone mining , railway and bridge construction ,waste treatment for urban construction and other fields.

Mobile crusher has been widely used all over the world. It expands the usage scope of crushing & screening operation. To remove customers’ operation obstacles caused by space and environment is our fist solution. To supply efficient and cheap crushing &screening system is our responsibility. The mobile crushing plant can be used on various crushing and screening spots, the customer can select one set or several different usage station according to requirements. We can also design kinds of mobile plants to meet special requirement.

People Also Frequently Asked For - FAQ

1. What are the different types of mobile crushers?

This selection includes jaw crushers, impactors, cone crushers, screens and scalpers for quarrying, construction and rock excavation projects.

2.What does a mobile crusher do?

A mobile rock crusher is a portable crushing plant designed to break down large stones, rocks, and ores into smaller sizes and shapes to be used for urban construction projects. These versatile machines have wide applications in various industries like mining, recycling, quarrying, infrastructure demolition, etc.

3.What is the capacity of mobile crusher?

Mobile crusher capacity is typically between30 and 500 tons per hour. It can process up to 350 tons of material per hour, depending on the model. The size and power of the machine will also affect its capacity.
