Hard Stone Crusher Multi-cylinder hydraulic cone crusher HPC500

HP500 multi-cylinder hydraulic cone crusher is a spindle-fixed hydraulic cone crusher . It is commonly used in the mining and aggregates industry. It is designed to crush hard and medium-hard rocks and ores, such as granite, limestone, basalt, and iron ore. This cone crusher is equipped with multiple cylinders that provide improved crushing performance and efficiency.

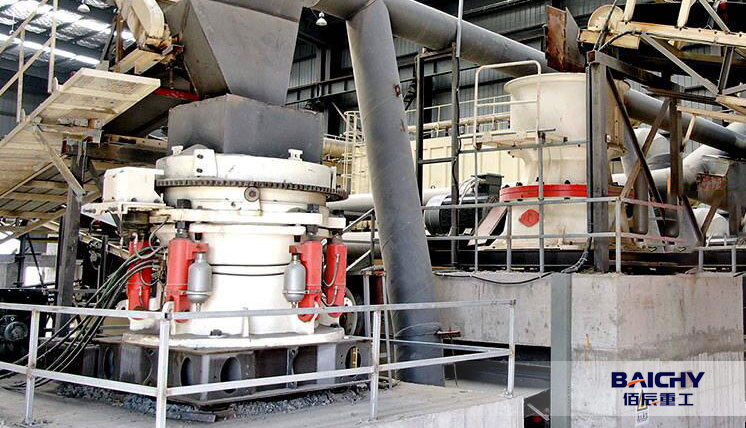

Cone crusher HPC500 structure

HPC500 cone crusher is a multi-cylinder hydraulic cone crusher composed of 6 "over-iron" release hydraulic cylinders and 8 locking hydraulic cylinders. The main structure includes horizontal shaft, large and small bevel gears, main shaft, eccentric sleeve, spherical tile frame, spherical tile, moving cone assembly, fixed cone assembly, adjustment ring, main frame, etc. The structure is simple and compact, and can automatically adjust the ore discharge port. the size of.

Features

1. Compared with the domestic 2200 spring cone crusher, the spindle-fixed hydraulic HP multi-cylinder cone crusher has large input power, large crushing force, fast rotation speed, high crushing product yield, high powder ore content. The best first choice equipment for less grinding mineral processing process.
2. The HP500 multi-cylinder hydraulic cone crusher is simple to operate, the discharge port is convenient and precise to adjust, and it is easy to disassemble when replacing the liner, which reduces the labor intensity of workers. The product has uniform particle size and an increase in fine particles. It is widely used in mining, metallurgy, chemical industry, etc. The applications are very wide in many industries.
3. The machine body is a cast steel structure with reinforced ribs in the heavy-load parts. The single unit weighs 34 tons and occupies a small area. It adopts more modern intelligent control technology to realize online adjustment of the discharge port and automatic load mode. , more intelligent.

Working principle

When the HP500 multi-cylinder hydraulic cone crusher works, the high-voltage motor drives the horizontal shaft to run. The small gear at the end of the horizontal shaft drives the large gear mounted on the eccentric sleeve flange. The large gear drives the eccentric sleeve to rotate around the main shaft at high speed. The dynamic cone spherical bearing sits on the concave surface of the spherical pad on the top of the spindle, while the dynamic cone lower bushing is placed on the eccentric sleeve. During the eccentric or rotational motion of the eccentric sleeve, the moving cone is driven by the contact between the movable cone bushing and the eccentric sleeve. When the movable cone is close to the fixed cone, the ore is in the process of being squeezed and broken, and the other side of the movable cone leaves the fixed cone. At this time, the crushed ore is discharged from the bottom of the two cones by its own weight.

HPC500 cone crusher for basalt stone crusher plant 300tph

Taking the basalt crushing production line with an output of 300 tons per hour as an example, the material is not larger than 600mm, and the discharge is 0-5mm, 5-10mm, 10-20mm, 20-40mm. The main equipment is:
Feeder ZSW4900x1300
Jaw crusher: PE900x1200
Single cylinder cone crusher: DG500
Multi-cylinder hydraulic cone crusher: HP500
Vibrating screen: 3YK3072

Baichy Machinery is a manufacturer dedicated to the research and development, production, sales and service of mining machines. It has strict quality inspection processes to ensure quality and output. There are more than a dozen models to choose from, with an output of 12-2181 tons per hour, all of which are Spot products are sold directly and the delivery is more timely. Welcome to inquire at any time.

People Also Frequently Asked For- FAQ

What is the feed size of a cone crusher?

The feed opening size of a cone crushe is usually 5–14 in. However, the feed size range required by a cone crusher is relatively narrow, often needing less than 450 mm. The maximum feed size of a tertiary crusher is up to 80 mm, and an output size of about 0–25 mm.

What is the closed side setting of a cone crusher?

The closed side setting (CSS) defines the reduction ratio in cone crushers and has a significant effect on product gradation, capacity, and power draw. The closed side setting is measured from the bottom of the mantle to the bottom of the bowl liner at their closest point during the gyrating cycle.

How do you crush rocks into gravel?

Using a crusher: This is a machine that uses impact or compression to crush the rocks into smaller pieces, such as impact crusher , cone crusher.

Using a grinding mill: This involves using a machine with a rotating drum to grind the rocks into smaller pieces, such as rod mill, ball mill.
