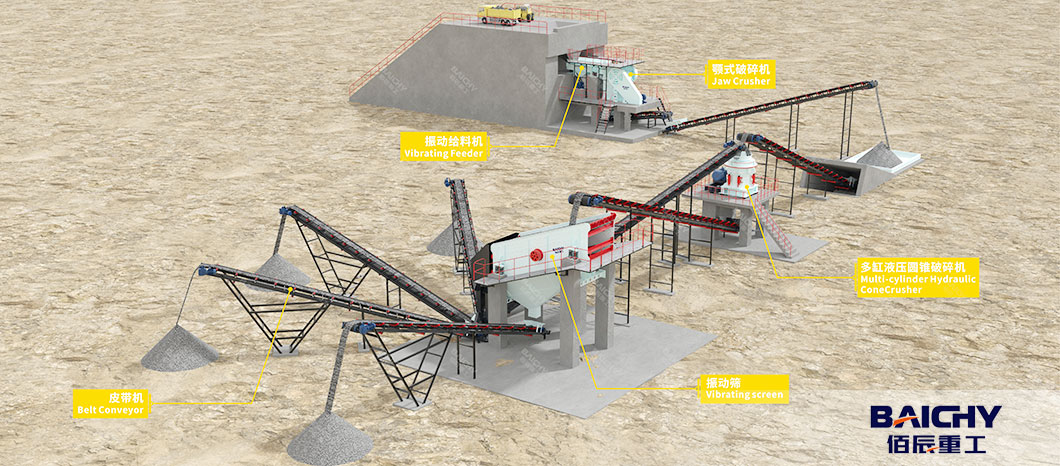

Top 7 Equipment Choices for a High-Yield Gravel Crushing Plant

To maximize productivity and efficiency in a gravel crushing plant, selecting the right equipment is critical. A high - yield gravel crushing plant demands a smart blend of equipment to efficiently turn gravel into valuable aggregates. Here are the top 7 must - have pieces.​

1. Jaw Crushers​

Function​: As primary crushers, they have a fixed and a movable jaw. Powered by an eccentric shaft and toggle - plate, the movable jaw squeezes large gravel chunks against the fixed one. For example, in big quarries, they can handle up to 1200mm feed sizes, breaking down large pieces for further processing.​

Key Features​: High - capacity models with large feed openings process more gravel at once. Adjustable discharge openings let operators control output size for different applications.​

2. Impact Crushers​

Function​: Used in secondary or tertiary stages, they work by impact. High - speed rotors with blow bars hurl pre - crushed gravel at impact plates, shattering it into smaller, more uniform particles. Ideal for producing cubical - shaped aggregates for concrete.​

Key Features​: High - speed rotors and powerful motors boost efficiency. Adjustable impact aprons help control particle size distribution for better yields.​

3. Cone Crushers​

Function​: Common in secondary or tertiary crushing, they use a conical chamber with a gyrating mantle. The material gets crushed between the mantle and the concave. Great for producing consistent, well - graded products for high - end projects.​

Key Features​: Hydraulic adjustment systems allow quick changes to the discharge opening. High - performance bearings and robust drives handle high loads for continuous operation.​

4. Vibrating Feeders​

Function​: They evenly feed gravel from the stockpile to the crushers via a conveyor. Their eccentric weight - generated vibrations ensure a steady material flow, preventing crusher overloading or under - feeding.​

Key Features​: Variable - speed controls let operators adjust feeding speed based on crusher capacity. Large hopper capacities reduce refilling frequency.​

5. Vibrating Screens​

Function​: These separate crushed gravel into different size fractions. The vibrating deck with various - sized mesh screens makes particles smaller than the mesh fall through, while larger ones move along. Crucial for meeting size requirements in different applications.​

Key Features​: High - capacity models with multiple - deck configurations can separate into several fractions simultaneously. High - amplitude vibrations handle large material volumes.​

6. Belt Conveyors​

Function​: They're the backbone of material transport in the plant, moving gravel between different equipment like feeders, crushers, and screens.​

Key Features​: Long - distance, high - capacity conveyors with wide belts and high - speed motors are needed. Proper incline and decline capabilities ensure smooth navigation within the plant.​

7. Dust Collection Systems​

Function​: Essential for environmental and health reasons. They capture dust generated during crushing and screening, preventing respiratory issues for workers, equipment damage, and environmental pollution.​

Key Features​: High - efficiency systems with large - capacity collectors can handle dust from high - throughput crushers and screens. Advanced filtration like bag filters or electrostatic precipitators remove even tiny dust particles.​


Bonus Considerations

1. Dust Suppression Systems: Mitigate airborne particles for compliance and worker safety.
2. Surge Bins: Buffer material between stages to prevent bottlenecks.
3. Mobile vs. Stationary: Choose mobile crushers/screens for on-site flexibility or stationary setups for large-scale production.

Why This Setup Works

1. A well-coordinated combination of these machines ensures:
2. High Throughput: Minimized downtime with efficient material flow.
3. Quality Output: Cubical, well-graded aggregates for premium applications.
4. Cost Savings: Reduced energy use, lower wear costs, and maximized resource utilization.

In summary, choosing these 7 pieces of equipment according to their performance and suitability is key to setting up a productive gravel crushing plant.​By investing in these core components, your gravel plant can achieve both high yield and long-term sustainability, meeting the demands of modern construction and infrastructure projects.
