How to choose appropriate jaw crusher model & specification for different requirements?

Choosing the appropriate jaw crusher model and specification for different materials and production requirements involves considering several factors to ensure optimal performance and efficiency. Here are some key considerations to keep in mind

1. Material Characteristics

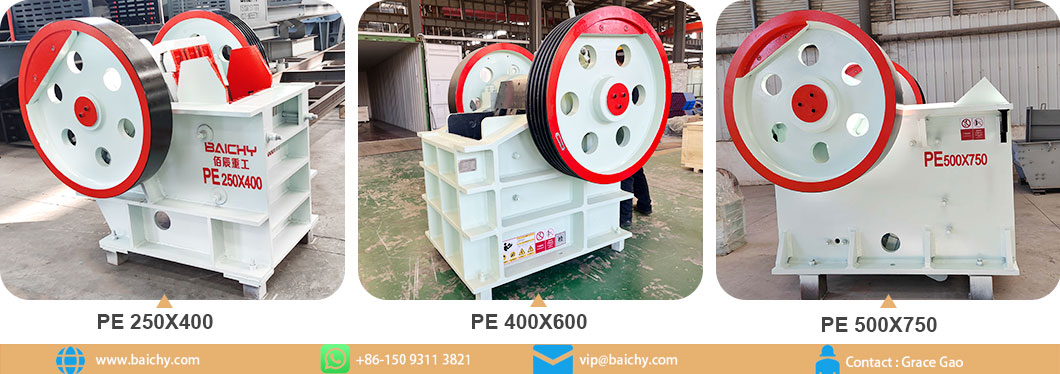

1-1. Hardness: For hard materials like granite and basalt, a jaw crusher with a robust structure and high crushing force, such as models with a larger eccentric shaft and thicker jaw plates, is required. For example, the PE600×900 jaw crusher is suitable for hard materials in medium and large-scale production. Softer materials like limestone can be processed by crushers with relatively lower power and smaller sizes, like the PE250×400 model.

1-2. Moisture Content: Materials with high moisture content are prone to clogging. In this case, a jaw crusher with a larger discharge opening and good drainage design should be selected. Some models have adjustable discharge openings to prevent clogging caused by wet materials.

1-3. Size and Shape: If the feed material has a large particle size, a jaw crusher with a larger feed opening is needed to ensure smooth feeding. For example, the PE series jaw crushers have larger feed openings and can handle larger materials. Irregularly shaped materials may require a crusher with a more flexible crushing chamber to avoid bridging and jamming.

2. Production Requirements

2-1. Production Capacity: Determine the required production capacity based on your project needs. For small-scale operations, a small to medium-sized jaw crusher with a production capacity of 10-50 tons per hour, such as the PEX150×750 fine jaw crusher, may be sufficient. For large-scale mining and construction projects, high-capacity models like the PE600×900 with a production capacity of 80-240 tons per hour or more are more suitable.

2-2. Particle Size Distribution: If a specific particle size distribution is required for the final product, consider the adjustable range of the discharge opening of the jaw crusher. Some crushers allow for fine-tuning of the discharge size to achieve the desired particle size distribution. For example, the Symons cone crusher can produce a more uniform particle size compared to some traditional jaw crushers.

3. Operational and Maintenance Considerations

3-1. Power Consumption: Choose a jaw crusher with reasonable power consumption to reduce operating costs. Energy-efficient models, such as those with optimized motor and transmission systems, can save a significant amount of electricity. For example, some new-generation jaw crushers use high-efficiency motors and advanced gearboxes to reduce power consumption.

3-2. Maintenance Convenience: Select a model that is easy to maintain and repair. Crushers with simple structures and accessible components are preferred. For example, crushers with removable side plates and easy-to-replace jaw plates can reduce maintenance time and costs.

4. Budget and Investment

4-1. Initial Investment: Consider your budget for purchasing the jaw crusher. Generally, larger and more powerful crushers with advanced features have a higher price. However, they may also offer better performance and higher production efficiency in the long run. For example, imported high-end jaw crushers may be more expensive but have better quality and performance compared to some domestic models.

4-2. Operating Costs: In addition to the initial purchase cost, consider the long-term operating costs, including energy consumption, maintenance costs, and spare parts replacement costs. Some crushers may have higher maintenance requirements, which can increase the overall operating cost.

By carefully considering these factors and conducting thorough research, you can choose the most suitable jaw crusher model and specification to optimize your crushing operations and achieve the desired production outcomes.  Baichy Machinery Company is headquartered in Zhengzhou, Henan. As a manufacturer specializing in the production of jaw crushers for more than 20 years, it has a good reputation in the industry. If you have any questions about jaw crushers, please click on the online customer service, which will answer you 24 hours a day.
