Hard rock gold mining equipment

Hard rock gold mining requires specialized equipment designed to withstand the rugged conditions of extracting gold from solid rock formations. In this article, we explore the key equipment necessary for successful hard rock gold mining operations, highlighting their functionalities and importance in the extraction process.

1. Drilling equipment:

It is used to drill holes in hard rock and obtain core samples to analyze ore grade and geological structure. It can drill deeper into the strata by cutting rocks with a high-speed rotating diamond drill bit, providing accurate geological information for subsequent mining work.

2. Crushing equipment

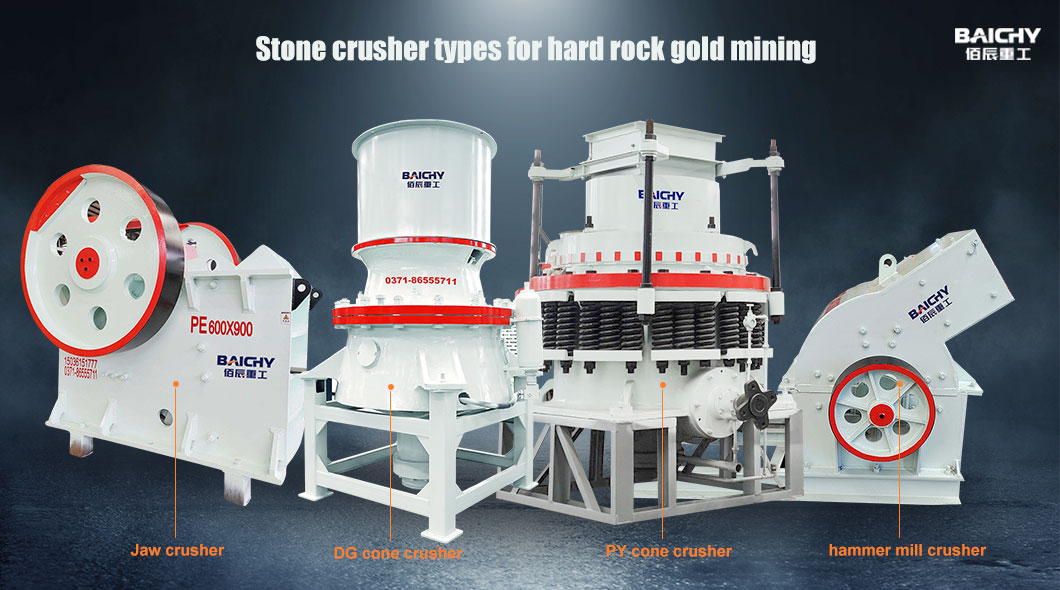

2-1 Jaw crusher:

used for coarse crushing of hard rock ore. Its working principle is to squeeze and crush the ore entering the crushing chamber through the periodic movement of the movable jaw and the fixed jaw, so that the ore particle size is reduced. The jaw crusher has a simple structure, is sturdy and durable, and is suitable for crushing ore of various hardness.

2-2 Cone crusher:

commonly used for medium and fine crushing of hard rock ore. It uses the rolling wall of the cone crusher to squeeze the material toward the crushing wall to crush the material. Cone crusher has the advantages of high crushing efficiency and uniform product particle size, and is widely used in mining, metallurgy and other industries.

2-3 Grinding equipment (ball mill):

further grind the crushed ore into fine powder for subsequent mineral processing. The ball mill is equipped with steel balls. When the cylinder rotates, the steel balls are lifted to a certain height under the action of centrifugal force and friction, and then fall to impact and grind the ore to achieve the required fineness.

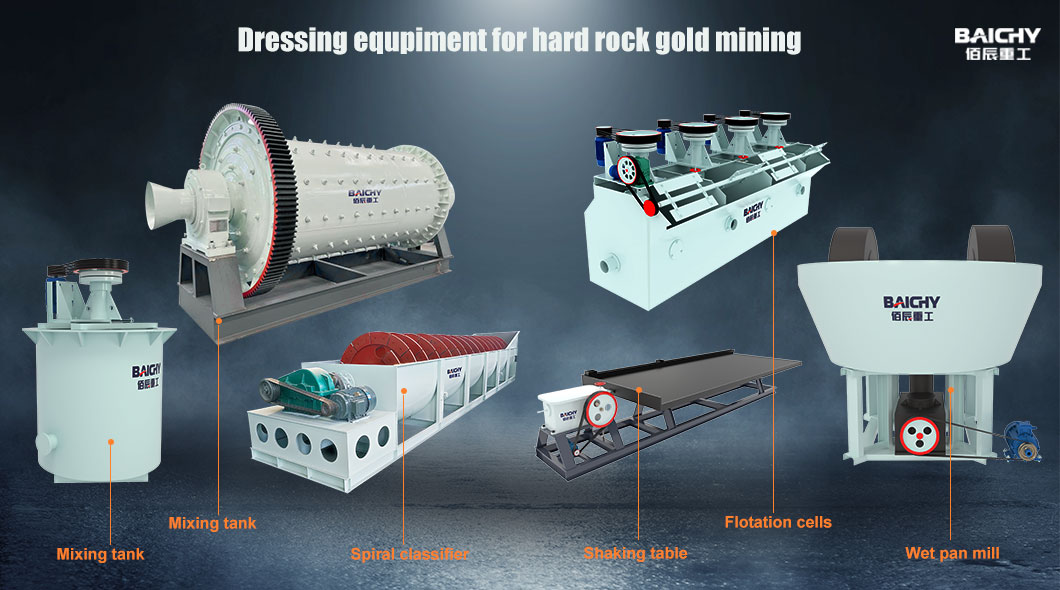

3.Ore dressing equipment

3-1. Flotation machine:

used to separate and enrich valuable minerals in gold ore. It adds flotation agents to the slurry, so that the gold ore particles adhere to the bubbles, and then float to the surface of the slurry with the bubbles to form a foam layer, thereby achieving the separation of gold ore and gangue minerals. There are many types of flotation machines, such as mechanical stirring flotation machines, aerated flotation machines, etc.

3-2. Gravity separation equipment:

Utilize the density difference between gold ore and gangue minerals for ore dressing. Common gravity separation equipment includes jigs, shaking tables, etc. The jig uses the up and down pulsation of water flow to separate mineral particles of different densities according to density, thereby achieving separation; the shaking table uses the differential motion of mineral particles on the inclined bed surface to make the lateral movement speed of heavy mineral particles along the bed surface greater than that of light mineral particles, thereby achieving separation.

Hard rock gold mining equipment plays a pivotal role in the extraction of gold from solid rock formations, enabling efficient processing and recovery of the precious metal. By investing in the right equipment tailored to the demands of hard rock mining, operators can enhance productivity, optimize gold recovery, and ensure the safety of their operations. Equip your hard rock gold mining venture with the essential equipment outlined in this article to embark on a successful and lucrative mining journey.
