Advantages of single cylinder cone crusher

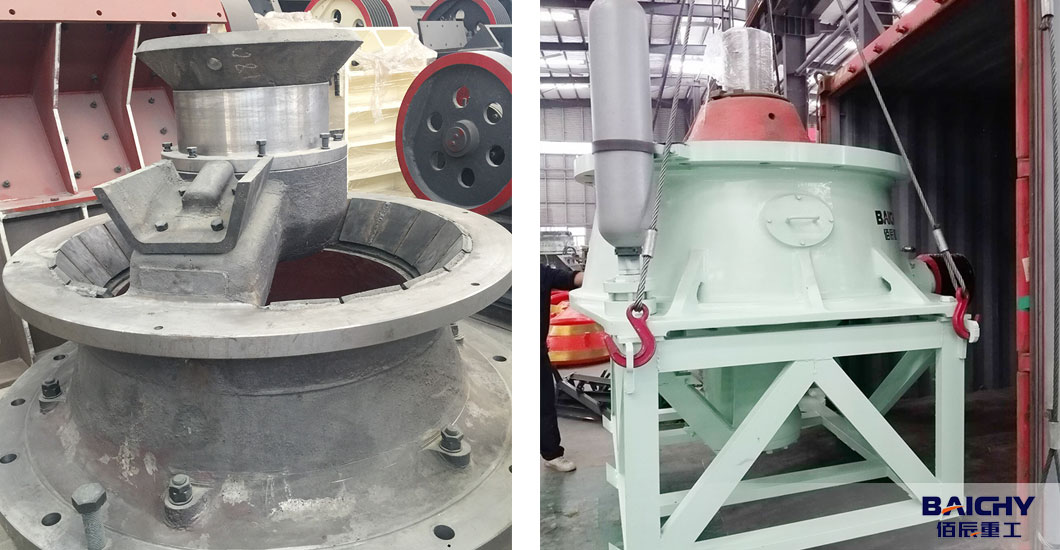

There are many types of cone crushers, including single-cylinder cone crusher, multi-cylinder hydraulic cone crusher, symons cone crusher, and spring cone crusher. Among them, the single-cylinder cone crusher is a new generation of cone crusher with large production capacity, high operating efficiency, and high degree of intelligence. It is a commonly used equipment for secondary crushing of stone. It has the following advantages:

1. The single-cylinder hydraulic cone crusher remove the complex adjustment ring, support ring and spring components due to the use of hydraulic adjustment and hydraulic protection, and the equipment structure is simplified.

2. The eccentricity of DG single-cylinder cone crusher can be changed by replacing the eccentric sleeve to meet the needs of different materials.

3. Since the main shaft of the moving cone adopts a simply supported beam structure, the eccentric angle of the main shaft of the moving cone is small, generally only equivalent to 1/2 of spring type cone machine, so the crushing cone is relatively steep and the crushing cavity is long, thereby improving the uniformity of crushing.

4. To adjust the discharge port, you only need to operate the hydraulic system control valve to complete the adjustment procedure. If you encounter iron jamming, you only need to operate the hydraulic operating valve to control the moving cone to go up and down to remove it, reducing the labor intensity and technical difficulty of the operator.

5. The sealing cylinder structure is dustproof, which is more reliable than the spring cone crusher machine water seal. In addition to increasing the supply and drainage problems, the latter also has oil and water mixing, causing poor lubrication.

The single-cylinder cone crusher has three chamber types to choose from, with a production capacity of 36-135t and a feed particle size of no more than 150mm. By replacing different chamber types, the user's production needs for coarse crushing, medium crushing, and fine crushing can be met. For more detailed technical parameters of single-cylinder cone crushers, please visit: https://www.baichy.com/Crushing/DG_cone_crusher.html

People Also Frequently Asked For - FAQ

Why use cone crusher?

Cone crushers are capable of crushing all types of medium to hard mineral rocks and stones. It also offers many advantages over other crusher designs, such as low energy consumption, reliability, high efficiency (compared to other crushers), and a high reduction ratio (feed/input size compared to product/output size).

How do you size a cone crusher?

To find the capacity of a cone crusher, it is recommended to use the actual power draw, crusher throughput, and rock hardness. The actual power draw should be taken from laboratory or field test data. The crusher throughput should also be taken into account, depending on the desired product specification.

How do you maintain a cone crusher?

Check for loose or broken bolts and nuts and tighten or replace them as needed. Inspect the crushing chamber for any foreign objects that may have entered, which could cause damage to the crusher or affect its performance. Lubrication:Proper lubrication is crucial for the smooth operation of cone crushers.
