200t/h basalt crushing plant configuration

Indonesia is one important market of Baichy Machinery, every year, a number of Baichy crushing machines, grinding mills and accessory equipment are transported to Indonesia. Our engineers visit customer site regularly to help great many customers solve their problems and build the good processing plant. Here is a successful basalt crushing plant with capacity 180-250 thp in Indonesia.

Main machines for basalt crushing plant

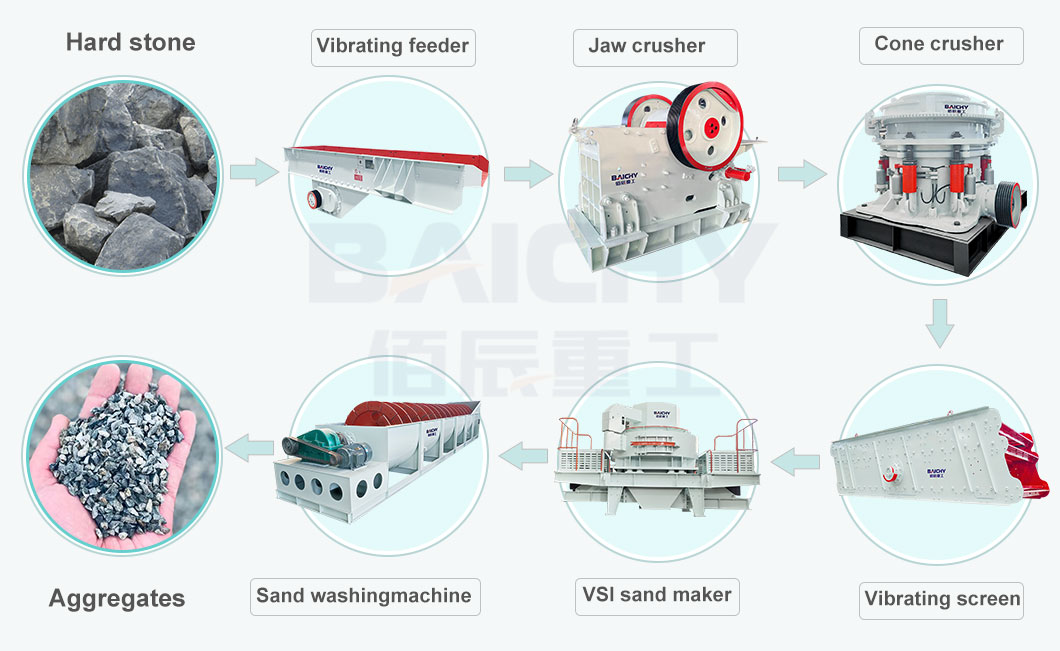

Raw material silo→vibrating feeder ZSW1142 → jaw crusher PE750x1060→conveyor→cone crusher HPC300→conveyor→intermediate silo and feeder→conveyor→sand making machine VSI9526 →conveyor→3YK2460 vibrating screen

The conveyors involved in the basalt crushing plant process have different specifications for different sites. The specific length and width required are subject to the configuration plan designed by the engineer.

Workflow introduction of basalt crushing plant

In the first stage, the raw materials slide from the large hopper to the vibrating feeder, and the feeder feeds the materials evenly to the jaw crusher. The basalt materials crushed by the jaw crusher enter the secondary crushing buffer silo together;
In the second stage, the materials in the secondary crushing buffer silo are fed into the cone crusher by the feeder.
In the third stage, the crushed basalt material is fed into the basalt impact crusher (sand making machine) through the feeder for shaping and crushing, and then transported to the vibrating screen through the belt conveyor. The finished stone required for production is screened out, and the unqualified ones are re-sanded and crushed. Users who need it can also configure related sand washing machines and other equipment.

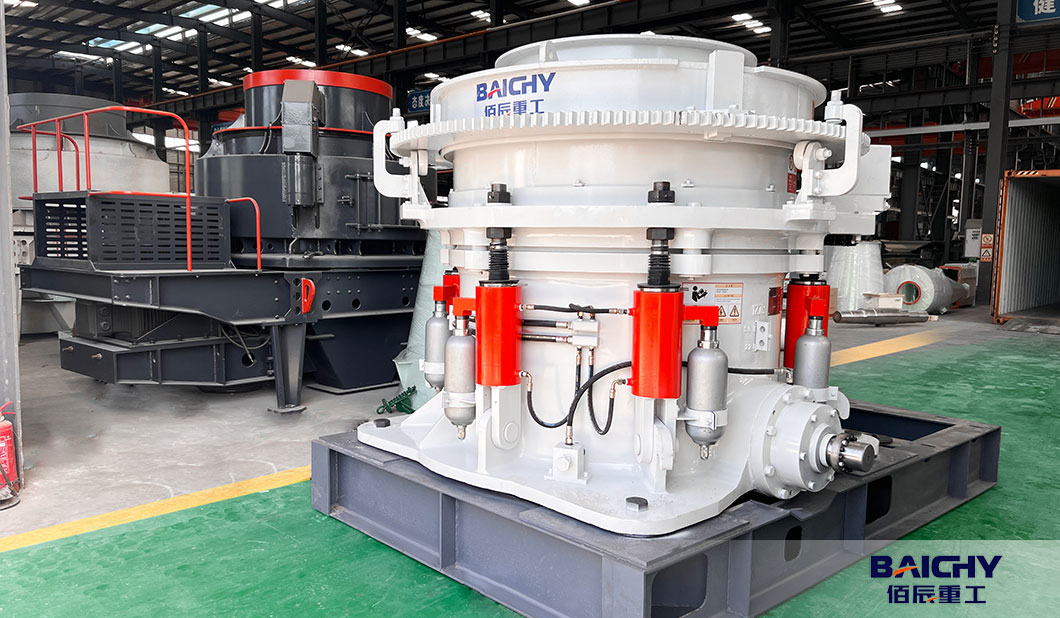

Core equipment: Hydraulic cone crusher HPC300

Production capacity: 145-280t/h
Product introduction:
One of the major breakthroughs of the HPC series cone crusher is the separation of the main shaft and the moving cone. This design makes the crusher smaller in size and has a larger processing capacity. In addition, there are other advantages
The HP300 cone crusher has a high degree of automation, uniform product particle size, good iron protection device, and can realize automatic cavity cleaning, which greatly improves productivity.
Its sealing device uses U-T type seal, which has a better sealing effect.
(3) Since the crusher and the motor foundation are an integral whole, there is no need to lay a foundation, which is very convenient to install.
(4) The function of the hydraulic station is more complete. When the crusher is running, the power supply of the hydraulic station must always be turned on to maintain the locking pressure and release pressure. The hydraulic station is also used to adjust the crusher discharge port, release circuit pressurization and cavity clearing.

People Also Frequently Asked For - FAQ

1. What is the best crusher for basalt?

There are different types of basalt crushers available in the market. The most common ones include jaw crushers, cone crushers, and impact crushers. Jaw crushers are ideal for primary crushing, while cone crushers are suitable for secondary and tertiary crushing.

2.Is basalt hard to crush?

Basalt is a strong and tough material with high silicon content and high abrasiveness. In actual crushing, it is quite difficult to be crushed and costs a lot. Crushing process: The crushing of Basalt is based on the principle of laminated crushing to reduce the loss of wear-resistant parts.

3. How do you crush basalt rocks?

If the rocks are harder (granite and basalt) they will require more crushing power. A compact jaw crusher will be necessary for this job. If your goal is to crush natural stone, consider investing in a larger mobile jaw crusher as these will give you a lot more crushing power to break down that hard rock.
