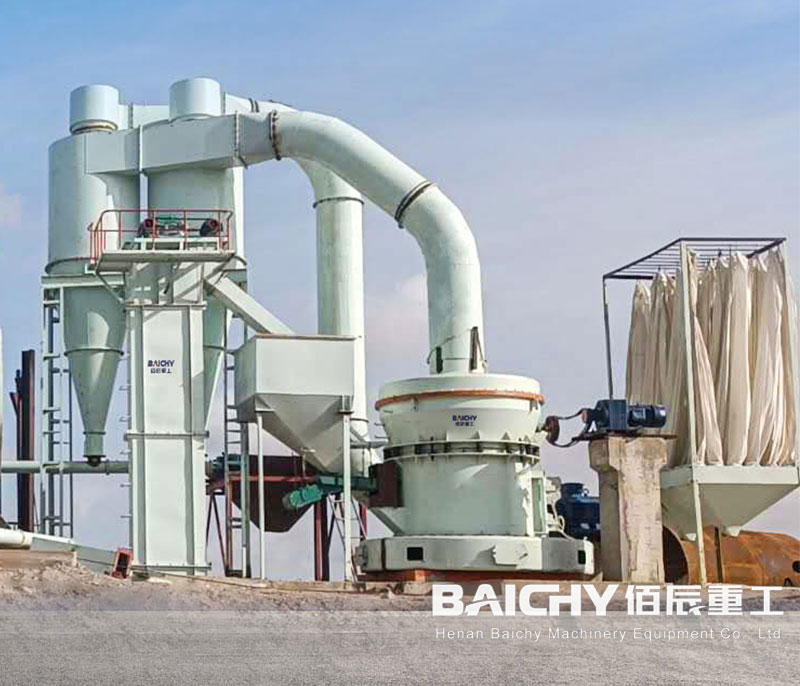

Barite Grinding Mill plant

A barite grinding mill plant is a facility designed for grinding and processing barite into fine powder. The grinding mill plant is essential for processing raw barite into a usable form for different applications.

High-quality barite ore with high purity and suitable particle size is preferred for the grinding process. Impurities in the raw material can affect the quality of the final barite powder and the performance of subsequent applications.

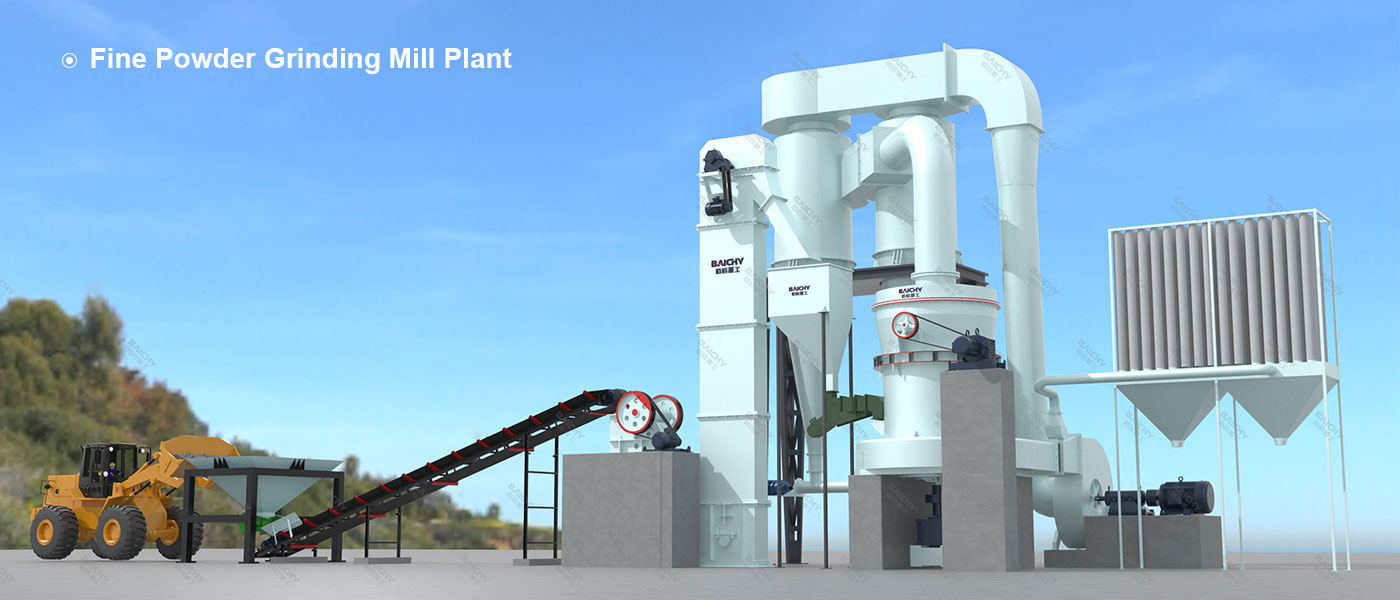

Components of a Barite Grinding Mill Plant

Barite, also known as baryte, is a non-toxic sulfate mineral with the chemical composition of barium sulfate (BaSO₄). It is often found in hydrothermal veins and limestone deposits, and is easily identifiable by its heavy weight. Barite is commonly used in various industries such as oil and gas drilling, paint and coatings, pharmaceuticals, and more. Here is an overview of a typical barite grinding mill plant:

1. Barite Crusher: Raw barite is first crushed into smaller particles by a crusher to prepare it for the grinding process.

2. Barite Grinding Mill: The crushed barite is then sent to a grinding mill where it is pulverized into a fine powder. Common types of grinding mills for barite include ball mill, R series raymond mills, YGM Raymond mills, MTW raymond mills, and ultrafine mills.

3. Classifier: A classifier is often used to control the particle size distribution of the ground barite powder. It separates the fine particles from the coarse ones and ensures a consistent product quality.

4. Dust Collector: A dust collector is essential to capture and remove airborne dust generated during the grinding process, maintaining a clean and safe working environment.

5. Packaging Machine: Once the barite is ground to the desired fineness, it is packaged using a packaging machine for storage or transportation.

Grinding Mill Plant Specification Sheet

Capacity		1-2 tph	2-4 tph	4-7 tph	7-12 tph	12-15tph
Raymond mill	Model	YGM75	YGM95	YGM130	YGM160	YGM190
	Main grinder(kw)	18.5	45	90	132	185
	Blower(kw)	15	37	90	132	185
	Classifier(kw)	2.2	5.5	7.5	15	22
Jaw crusher	Model	PE150X250	PE200X350	PE250X400	PEX250X750	PEX250X750
Jaw crusher	Motor(kw)	5.5	7.5	15	22	22
Bucket elevator	Model	T210X7m	T210X7.5m	T250X10m	T315X10m	T400X10m
Bucket elevator	Motor(kw)	3	3	4	4	4
Feeder	Model	GZG-2	GZG-4	GZG-4	GZG-5	GZG-5
Feeder	Motor(kw)	0.06	0.15	0.15	0.45	0.65
Silo	Customized according to actual situation

* The output will vary according to different materials, feed particle size and other factors

Barite Grinding Mill Plant Features

1. Raymond mill Spring-loaded device of high pressure spring can make the grinding pressure of roller increasing, barite powder production increasing and materials range wide.

2. Grinding roller device adopts the most advanced multi-stage sealing including mechanical sealing and overlapping sealing, whose sealing performance is good, which can lower the maintenance cost and prolong the lifespan of equipment.

3. Taking some measures such as soft connection and processing of rubber mats can effectively reduce vibration, avoiding the influence of vibration in grinding chamber on analysis machine in order to improve the analysis fineness and lower the noise at the same time, which lastly improves the working place of workers.

4.The application of pulse jet dust collector and silencer greatly reduces dust and noise, making the milling system more environmentally friendly.
