Real Review: How Does a Mobile Sand Making Machine Perform in Practice

Mobile sand making machines have revolutionized on-site aggregate production, offering flexibility and efficiency for construction, mining, and recycling projects. Now let's break down their working principles, key components, and real-world performance to learn about mobile sand making machine plant.

Core Working Principle: From Rock to Sand in Motion

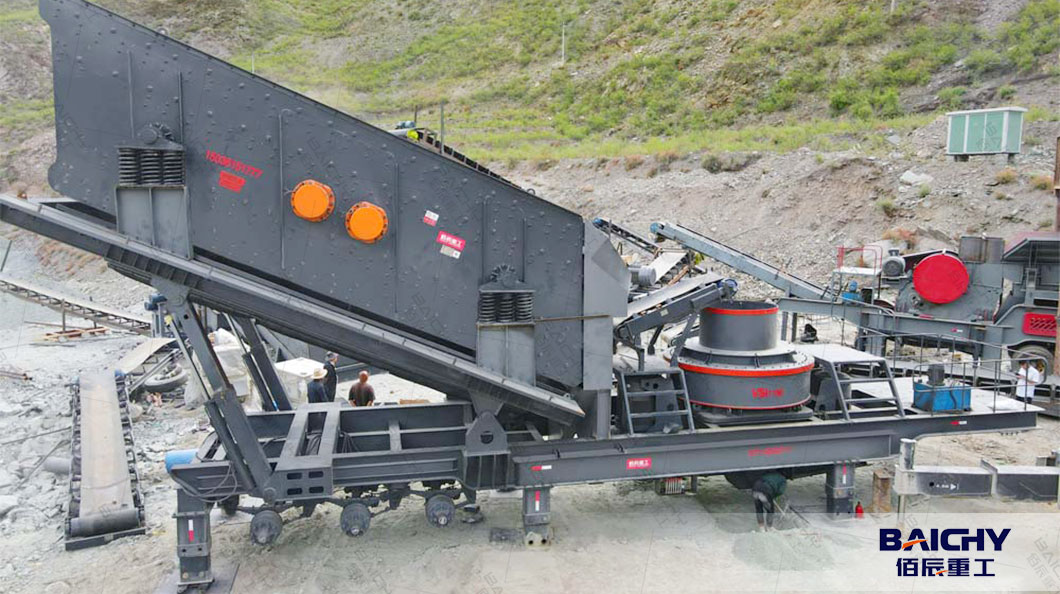

A mobile sand making machine—also called a mobile VSI (Vertical Shaft Impact) crusher—is a self-contained unit that crushes, shapes, and screens raw materials into high-quality sand and aggregates. Unlike stationary plants, it’s mounted on a trailer or tracked chassis, allowing quick relocation to remote or urban sites. Here’s how the magic happens in 3 stages:

1. Feeding: Prepping Materials for Crushing

- Hopper & Vibrating Feeder: Raw materials (gravel, limestone, recycled concrete) are loaded into a hopper, where a vibrating feeder regulates flow into the crusher. This prevents overloading and ensures a steady supply.

2. Crushing & Shaping: The Heart of the Machine

- VSI Crusher Chamber: The material enters a high-speed rotor (1,500–2,500 RPM) equipped with wear-resistant "throw bars." As the rotor spins, centrifugal force hurls rocks toward an outer impact liner, shattering them into smaller pieces.
- Rock-on-Rock vs. Rock-on-Steel: Modern machines like Baichy’s VSI-1140 allow switching between crushing modes:
- *Rock-on-Rock*: Impacts material against itself for less wear, ideal for abrasive stones (e.g., basalt).
- *Rock-on-Steel*: Uses steel liners for finer sand production (e.g., 0–5 mm), perfect for concrete mixing.

3. Screening & Recycling: Ensuring Quality Output

- Integrated Vibrating Screen: Crushed material passes through a 2–3 deck screen that separates oversized particles (recycled back into the crusher) from finished sand (e.g., 0–3 mm, 3–5 mm).
- Conveyor System: Built-in belts transport finished sand to stockpiles or directly into trucks, while oversize material is routed back for reprocessing.

Pros and Cons: Real Operator Feedback

Advantages

1. Unmatched Mobility:

- Deployed in <2 hours at a urban site, avoiding costly trucking of raw materials.
- Mobile models like Baichy’s YDPZ9532-2160 accessed remote quarries where trucks couldn’t reach.

2. High-Quality Sand Production:
- Produced cubical-shaped sand with <15% flaky particles, exceeding ASTM C33 standards for concrete.

3. Cost Savings:
- Reduced material transportation costs by 40% on a highway project by crushing onsite.
- Lower maintenance than stationary plants; quick-change liners cut downtime to <1 hour per replacement.

Challenges

1. Throughput Limits:
- Max capacity of 200 TPH (vs. 500+ TPH for stationary plants) may lag in massive mining operations.

2. Moisture Sensitivity:

- The wet clay (moisture >15%) may clogged the screen; So the material could not too much moisture.

3. Initial Investment:
-Prices range from $150,000–$400,000 (Baichy models), requiring a 12–18 month ROI for small businesses.

Mobile sand making machines like Baichy’s YDPZ series deliver flexibility, efficiency, and quality that stationary plants can’t match for mid-sized projects. While they have limitations in extreme conditions, their ability to reduce costs, minimize environmental impact, and adapt to changing job sites makes them a wise investment for modern construction and mining firms.
