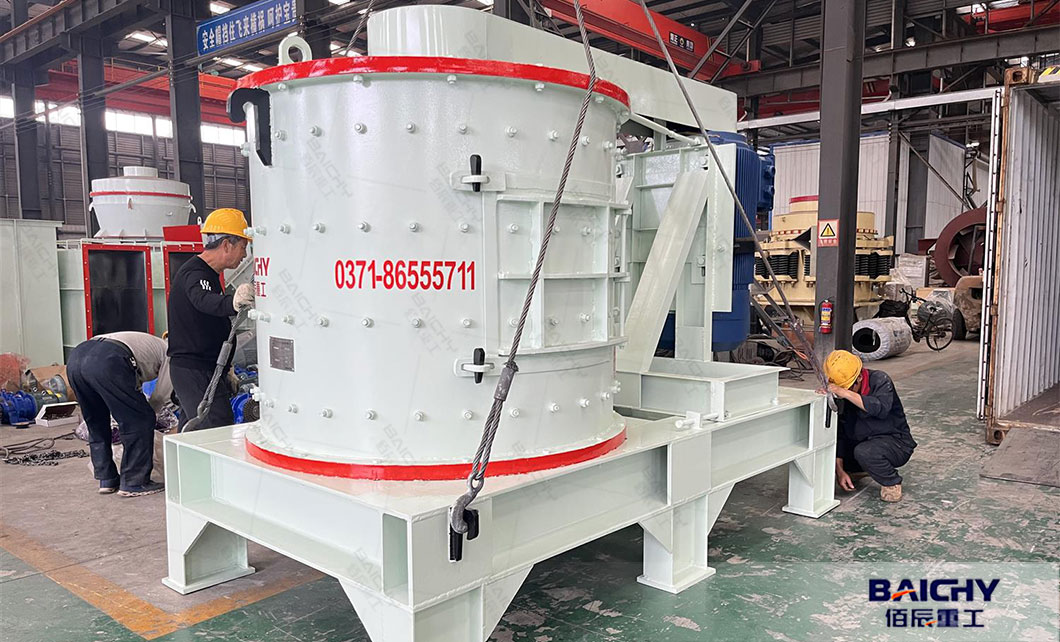

Vertical Shaft Compound Hammer Crusher delivered to Nicaragua

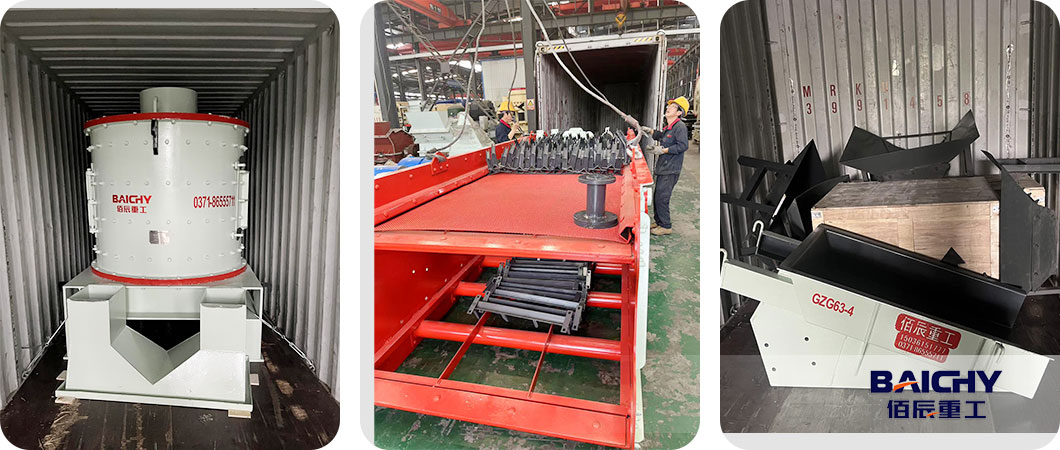

Last year, we delivered a sand making plant to Nicaragua. It includes vertical shaft compound crusher PFL1500, vibrating screen 2YK1548, vibrating feeder GZG-4, several belt conveyors. Client has raw material with smaller size already. In this sand making plant, PFL series compound crusher is used to produce fine sand. Why choose PFL compound crusher to make sand?

About PF Vertical Shaft Compound Hammer Crusher

Vertical shaft compound hammer crusher, which we usually call it compound crusher, is one of the common equipment in sand production plant and gravel crushing plant. The compound crusher is a new type of fine crushing and coarse grinding machine. Compound crusher is mainly used for crushing cement raw material and clinker in medium-sized cement plants, and is also used for crushing other medium-hard ores such as iron ore, sandstone, gypsum, blast furnace slag, lump coal, etc.

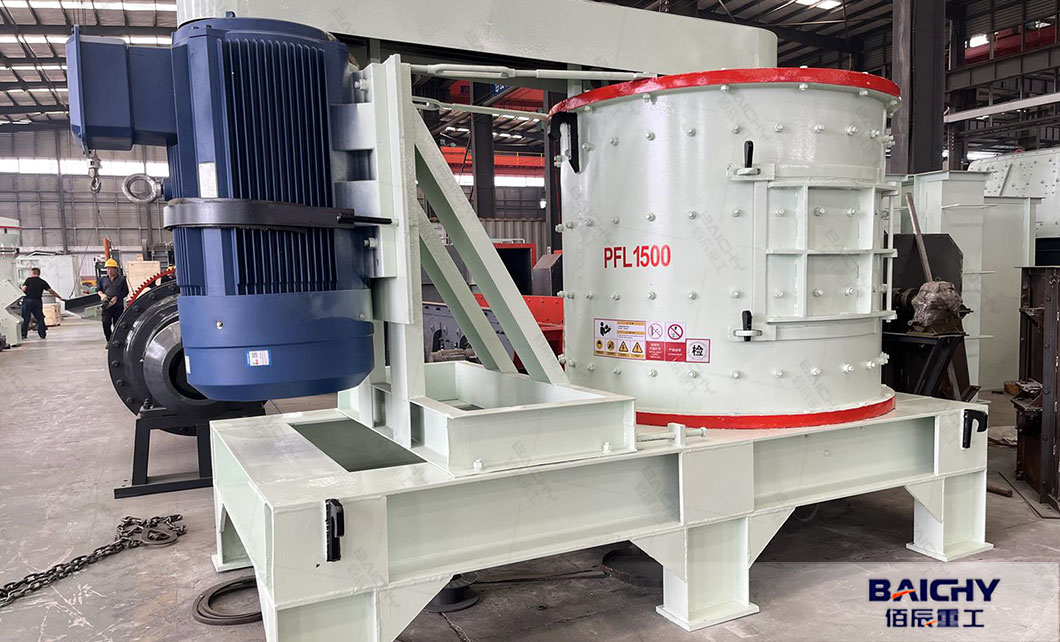

Compound crusher PFL1500 technical data

Model: PFL1500
Max feeding size: 180mm
Output size: 3-5mm
Capacity: 70-100tph
Motor power: 132kw

PFL Compound Crusher Structure:

The machine is mainly composed of frame, rotor, hammer, liner, feed port, discharge port and other components. The motor drives the rotor through the V-belt rotation, so that the hammer fixed on the rotor runs at high speed, so that the material fully collides with the hammer and the inner wall liner, thereby crushing the material in the crushing chamber.

PFL Compound Crusher Features:

1. The compound crusher has a large crushing ratio, and the maximum crushing ratio can reach 30:1. The discharging particle size can be adjusted at will, and is not affected by the wear of the hammer and liner.
2. There is no screen bar setting, and it is not easy to get blocked when crushing materials with high moisture content and large mud content.
3. The elastic adjustment mechanism is adopted, and the uncrushable materials can be automatically discharged without causing equipment damage.
4. The bearings are arranged horizontally, with a long service life, and can crush materials with high temperatures (such as cement clinker).
5. The rotor body of this machine has a unique structure, and the rotor body wears less when crushing materials.

Baichy Machinery has a history of more than 20 years. It not only produces a full set of crushing and sand making equipment, but also provides EPC project general contracting services, including plant site selection and construction, production line design and installation, and production and operation technical training. Welcome to consult online to get your exclusive plant construction plan.
