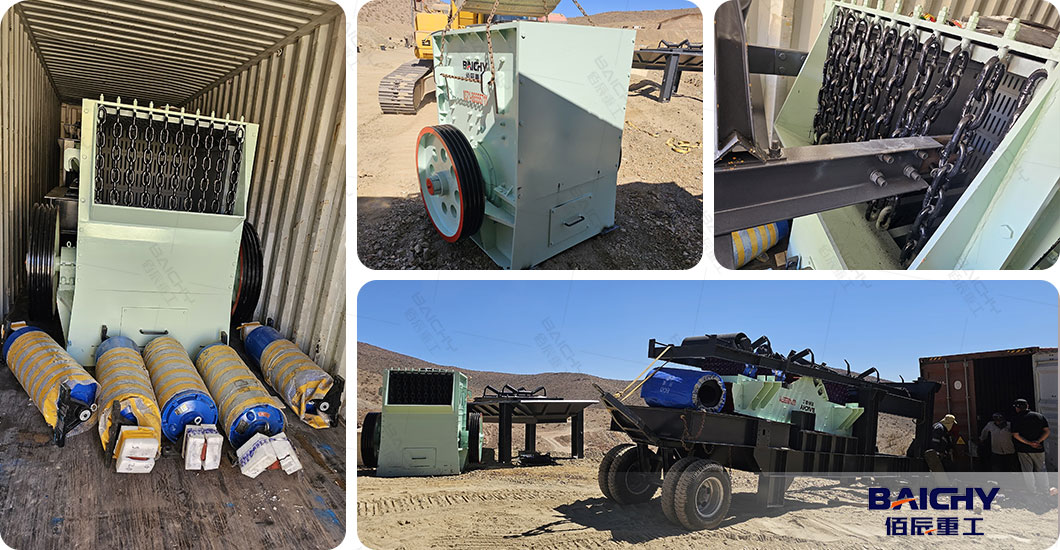

We devliered one set mobile sand making plant to Chile last month. The mobile crushing plant is composed of vibrating feeder, box type hammer crusher, vibrating screen, tyre type mobile steel frame. The following is an introduction to the mobile box type hammer crusher plant for limestone sand making:
1. Working principle of box type hammer crusher
The motor drives the rotor to rotate at high speed. After the limestone enters the crushing chamber, it is crushed by the impact of the high-speed rotating hammer. The crushed material continues to be hit, collided, and rubbed with the liner in the box, and is further crushed.
The material that meets the particle size requirements is discharged through the screen plate in the box to become finished sand; the larger particle size material continues to be crushed in the box until it reaches the required particle size.
2. Advantages of box type hammer crusher
2-1. Efficient crushing: According to the characteristics of limestone, the box type hammer crusher can achieve efficient crushing and has a large crushing ratio. It can crush larger-sized limestone into smaller-sized sand particles at one time, reducing the intermediate links in the crushing process and improving production efficiency.
2-2. Excellent particle shape: During the crushing process, the material undergoes multiple impacts and collisions, making the particle shape of the finished sand more regular, mostly cubic, with good particle shape and reasonable gradation, which can effectively improve the quality of limestone sand and meet the demand for high-quality sand materials in the construction and other industries.
2-3. Convenient mobility: The equipment adopts a mobile frame design and can be equipped with a tire-type or crawler-type walking mechanism. It can be easily moved at different construction sites to adapt to different working environments and site requirements. It does not require complex infrastructure, reduces installation and relocation costs, and improves the flexibility and utilization of the equipment.
2-4. Simple maintenance: The box-type structure makes the internal components of the equipment easy to inspect and maintain. The flip chassis design facilitates operators to enter the interior to replace and inspect vulnerable parts such as hammers and screens, shortens maintenance time, reduces the number of equipment shutdowns and maintenance, and improves the operating efficiency of the equipment.
3. Technical parameters of mobile box hammer crusher plant
3-1. Production capacity: The production capacity of different models of mobile box hammer crushers varies. Generally, the output per hour ranges from tens of tons to hundreds of tons. For example, the output of small equipment may be 50-100 tons/hour, and large equipment can reach 200-500 tons/hour or even higher. The box crusher model shipped to Chile this time is PC1000, with an output of 90-120 t/h.
3-2. Feed particle size: It can usually accept larger-sized limestone feed, and the maximum feed particle size can generally be around 300-800 mm.
3-3. Discharge particle size: The discharge particle size can be controlled by adjusting the screen plate gap, the number and shape of hammer heads, etc. Generally, limestone can be crushed into finished sand with different particle size ranges such as 0-5 mm, 5-10 mm, 10-20 mm, etc. to meet the needs of different users.
The produced limestone sand can be used as fine aggregate for concrete to prepare high-performance concrete and is widely used in infrastructure construction projects such as high-rise buildings, bridges, and roads. Baichy Machinery offers a wide range of products to cater to the needs of customers in industries such as mining, construction, and aggregates. Their crushers, including jaw crushers, impact crushers, cone crushers, and hammer crushers, are designed to meet the crushing requirements of different materials and applications.
