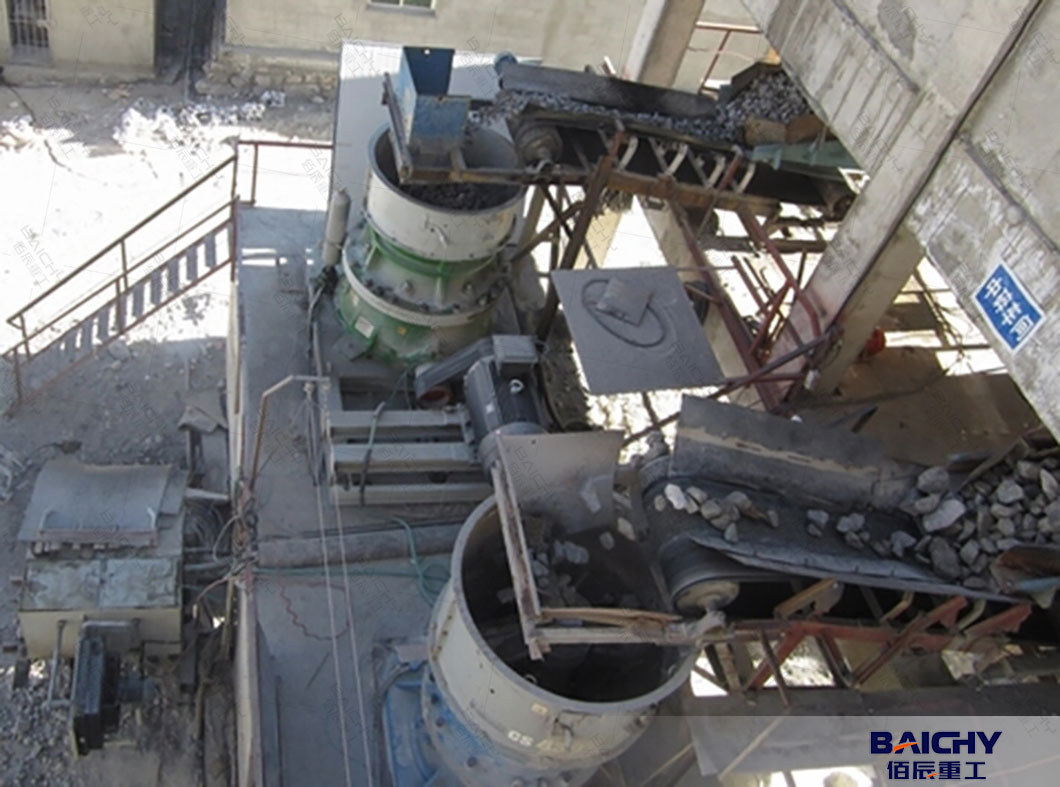

Single Cylinder hydraulic cone crusher is a secondary crushing stage stone crusher for modern mining operations, designed to deliver reliability, efficiency, and versatility in processing hard and abrasive materials. Below, we explore its top four features that make it a preferred choice for high-performance mineral extraction and aggregate production.
Tehcnical Parameter For Cone Crusher CH440
Parameter Details
Model: CH440
Crusher Type: Hydraulic Cone Crusher
Feed Opening: 120-400 mm
Max Feed Size: ≤ 400 mm (13.2")
Closed Side Setting (CSS) Range 12–16 mm
Nominal Capacity 80–500 metric tons/hour (varies with chamber selection and material)
Power Requirement 220-250kW
1.High Crushing Efficiency
Advanced Crushing Chamber Design: It adopts a crushing chamber shape that aligns with the lamination crushing principle, which, when combined with the high - swing - frequency motion of the moving cone, enables efficient crushing. The material is subjected to repeated extrusion and shearing forces within the chamber, facilitating a high - reduction - ratio crush.
Optimal Parameter Combination: The crusher combines the crushing stroke, crushing speed, and chamber shape in an optimal manner. This allows it to achieve a 35% - 60% higher production capacity than traditional spring cone crushers with the same moving cone large - end diameter, thereby enhancing production efficiency.
2.Excellent Product Granularity
Lamination Crushing Principle: The CH440 employs the lamination crushing principle, which causes the material to be crushed between particles, resulting in a more uniform particle size and a more regular shape. The produced particles are mostly cubic, which is beneficial for improving the quality of the final product and meeting the requirements of different engineering applications.
Adjustable Cavity Types: It offers a variety of standard cavity types, including EF (ultra - fine), F (fine), MF (medium - fine), M (medium), MC (medium - coarse), C (coarse), and EC (ultra - coarse). Users can select the appropriate cavity type according to their specific needs, further optimizing the product granularity.
3.High Degree of Automation
Intelligent Control System: The cone crusher is equipped with an advanced automatic control system that provides multiple operation modes such as manual control, constant discharge opening control, and constant power control. It can automatically adjust the main shaft position and discharge opening size through a hydraulic cylinder, and is also capable of real - time monitoring of parameters such as feed volume, current, oil temperature, main shaft temperature, and vibration protection.
4.Reliable Safety and Stability
Hydraulic Protection System: The single - cylinder hydraulic design not only enables the adjustment of the discharge opening and the clearing of the chamber but also provides overload protection. When non - crushable objects such as metal blocks enter the crushing chamber, the hydraulic piston at the bottom of the moving cone lifts the cone, discharging the object and protecting the crusher. After the foreign object is discharged, the moving cone automatically returns to its original position, and the equipment resumes operation.
Stable Structural Design: The crusher adopts a two - end - supported hydraulic - adjustment main shaft and an integrated main frame. These designs ensure the stability and reliability of the equipment, capable of withstanding large crushing forces and strokes, reducing the occurrence of equipment failures and maintenance requirements.
Henan Baichy Machinery Equipment Co., Ltd. is a mining machinery manufacturer integrating R&D, production and sales. Stone cone crusher is one of its core production equipment. It has mature technology and processes, complete models and configurations, and technical engineers can tailor production line configuration plans for you. If you are interested in the stone cone crusher, please click on the online consultation to contact us. Baichy Machinery is dedicated to serving you 24 hours a day
