VSI Sand Making Machine

VSI Sand Making Machine

VSI, the high efficient Vertical Shaft Impact Crusher is a kind of sand making machine, sand maker. It can provide the best sand material for the highway,railway,construction project and concrete mixing station etc.

  • 60-600mmFeed Size
  • 380v:50hzMotor Power
  • 60–600t/hProcessing capacity
  • 60S Quick response
  • 30 min Technical reply
  • 24h design proposal
  • Email:hnbc@baichy.com

What is vertical shaft impact crusher (VSI) ?

Vertical shaft impact crusher is also called VSI sand making machine. It is mainly used to produce construction sand. VSI machine is the most advanced equipment for artificial sand production at present. It is designed to provide high-quality sand and stone aggregate for highway, high-speed railway, building, hydropower dam construction, concrete mixing plant. It is also used in the field of artificial sand making and stone shaping. Usually, VSI sand making plant can be equipped with sand washing machine, stone crusher, vibrating screen to produce artificial sand more economically and efficiently.

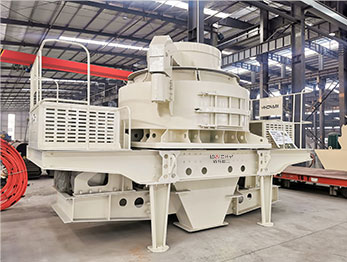

vertical shaft crusher VSI machine

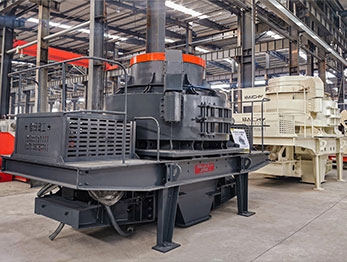

vertical shaft impactor crusher

How to choose sand making machine?

Actual production needs: different series of construction sand making machines produced by our company have different stone feed granularity, finished sand and stone discharge granularity and capacity. Users can choose appropriate series and models according to actual production needs when choosing construction sand making machines.

Production site: Make reasonable planning according to production site. Stationary sand making machine or mobile type sand making plant is selected to achieve the requirements of rationalization of the production process and saving production costs.

Consult professional manufacturers: If you do not have a clear understanding of your own production needs or process planning, you can click on the online consultation, our company will have professionals for you to customize sand production process and recommend right sand making equipment.

Get Price List
  • High Quality

    VSI Sand Crusher Machine with Large handling capacity and High output.

  • Customized Design

    Low wearing parts cost; Perfect impact angle design of the crushing cavity, less friction against the wearing parts.

  • Good Performance

    Thinning oil lubricant and automatic maintenance. The thinning oil lubricant station,double-pump injection system guarantees the oil supply.

Product features

Automatic test, safe and reliable;Vibration display and warning device are set. The machine will be warned to stop working when abnormal phenomenon appears.

  • vertical shaft impactor
  • vsi crushers
  • vertical shaft crusher
  • vertical crusher

Working principle

How does VSI Sand Crusher Machine works? Hard stone materials fall into the crusher and are divided into two parts. One part goes into the high-speed-running impeller of the machine, and the other part goes around the impeller.The two parts materials bump and crush fast during the effect of centrifugal force. Then the materials run like swirl, bump and rub to each other again and again. The finished products go out from the bottom of the machine, and users can get the requested products size after screening by vibrating screen. Baichy VSI sand maker adopts central feeding and central cascade feeding way, which can be changed based on customers' needs.

sand crusher

Specification

Model VSI-7611 VSI-8518 VSI-9526 VSI-1140 VSI-1145
Capacity (t/h) Cascade and Center Feeding 120-180 200-260 300-360 450-520 490-600
Center Feeding 60-90 100-130 150-190 225-260 250-310
Feeding Size (mm) Soft Material < 35 < 40 < 45 < 50 < 50
Hard Material < 30 < 35 < 40 < 45 < 45
Rotation Speed (r/min) 1700-1890 1520-1690 1360-1510 1180-1310 1180-1280
Power of the Double Motors (kw) 110-150 180-220 264-320 400-440 440-520
Overall dimension L*W*H (mm) 3700*2150*2100 4140*2280*2425 4560*2447*2278 5000*2700*3300 5100*2790*3320
Power Source 380v:50hz
Vibrating Sensor Inspection Scope:0.1-20mm/s, it can be adjusted continuously.
Hydraulic Lubrication Station Power of Double Oil Pump 2x0.31kw
Safety Double oil pumps make sure supply of oil with; Stop automatically without oil flow or oil pressure; Water cooled; Heating start the motor in winter.
Overall Dimension L*W*H (mm) 820x520x1270
Power of Oil-Box     Heater 2kw

*The output will vary according to different materials, feed particle size and other factors
