Rotary Kiln

Rotary Kiln

Rotary kiln belongs to building material equipment, which can be divided into cement kiln, metallurgy chemical kiln and lime kiln according to different materials.

  • 3.5-4%Feed Size
  • 55-220KWMotor Power
  • 300-1800 t/dProcessing capacity
  • 60S Quick response
  • 30 min Technical reply
  • 24h design proposal
  • Email:hnbc@baichy.com

What is rotary kiln?

Rotary kiln is a high-temperature treatment facility used to heat the material to high temperature through calcining in a continuous process. They can also be used in the front stages of metal extraction by roasting sulfide ores in various ways to prepare ores for smelting. Rotary kiln can be divided into cement rotary kiln, metallurgical rotary kiln and lime rotary kiln according to different processing materials. Cement rotary kiln is the main equipment of cement clinker dry process and wet process production line.
gypsum rotary kiln cement rotary kiln

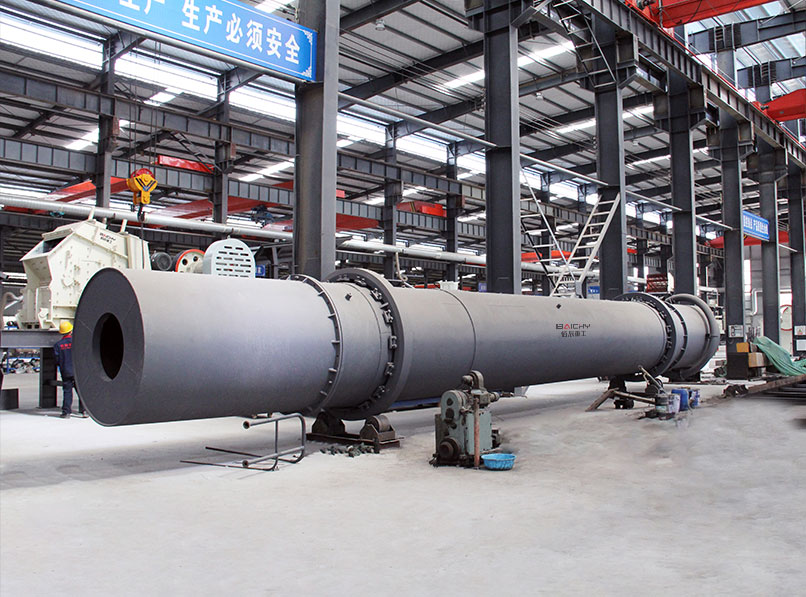

rotary kiln

Why choose rotary kiln?

1. The rotary kiln is composed of cylinder device, supporting device, retaining wheel device, transmission device, kiln head and kiln tail sealing device, kiln head fixed screen, structural cooling air box and lubrication system and other parts.

2. The calcination process of the rotary kiln is composed of gas flow, fuel combustion, heat transfer and material movement. The working process is to make the fuel fully combustible, the heat of fuel combustion can be effectively transferred to the material, and the material will generate heat after receiving the heat. A series of physical and chemical changes finally form the finished clinker.

3. The ratio of length to diameter (L/D) is a very important parameter of the rotary kiln. The selection of length-to-diameter ratio should take into account the properties of raw materials, output, quality, heat consumption and the requirements of the entire process. It should ensure low heat consumption, large heat supply capacity, and a series of physical and chemical processes can be successfully completed.

4. Baichy Machinery can configure the rotary kiln equipment for the user, and select the appropriate refractory brick material for the user according to the user's process requirements. We have professional workshop personnel who can lay refractory bricks for the user on site, and truly provide one-stop service to help users successfully put into production and use.

Get Price List
  • High Quality

    High Automation Level.

  • Customized Design

    Low Energy Consumption.

  • Good Performance

    Waste Heat be Reused Effectively.

Product features

The lime rotary kiln is with advanced structure.

  • Rotary Kiln
  • cement kiln
  • sponge iron kiln
  • bauxite kiln plant

Working principle

The kiln is a cylindrical vessel, inclined slightly to the horizontal, which is rotated slowly about its axis. The material will be calcined in the shell after feeding at the head of the kiln. The fuel will be spurted from the kiln tail and start burning. The hot air from the end blow into the kiln directly impacting the raw materials. And then will be turned over along the direction of circle and mixing from the high-end to low-end along the axial because of the shell’s slope and low speed rotation. The material will be calcined into the clinker after discomposition, calcination and cooling process. So they will discharge from the low-end.

How doese rotary kiln work?

Specification

Specification Φ2.8/2.5X44 Φ3.2X52 Φ3X48 Φ3.2X50 Φ3.2X50 Φ3.3X50 Φ3.5X54
Capacity (t/d) 300 600 700 1000 1200 1200 1500-1800
Gradient (%) 3.5 3.5 3.5 3.5 4 4 4
Support Number (pc) 3
Round form of block Mechanism Mechanism or hydraulic hydraulic
Tube Speed Total ratio of speed (r/min) 0.445-2.22 0.676-3.38 0.676-3.38 0.36-3.57 0.4-4.07 0.36-3.57 0.39-3.9
Assistance of drive (r/h) 4.75 9.36 9.36 6.5 6.5 5.61 7.66
Main drive Motor Model ZSN4-225-21 Z2-101 ZSN4-280-091B ZSN4-280-11B ZSN4-315-092
Rating power (Kw) 55 100 160 160 160 190 220
Speed rang (r/min) -1500
Reducer Rating voltage (v) 440
Model ZS145-1-l ZS145-1-l ZS145-1-l ZSY450-40-v ZSY450-40-v ZSY450-40-v NZS995-28VIBL
Total ratio of speed 49.63 49.63 40 40 40 40 28
Tachogenerator Rating power (Kw) 22
Speed rang (r/min) 0-2000
Maximum voltage (v) 110
Assistant drive Motor Model Y122M-4 Y160M-6 Y160M-4B Y200L1-6
Rating power (Kw) 4 7.5 15 11 11 15 18.5
Speed rang (r/min) 1440 970 1460 1460 1460 1460 970
Rating voltage (v) 380
Reducer Model ZL35-16 ZL35-7-l ZL35-7-l ZSY160-31.5 ZSY160-31.5 ZSY160-31.5 ZSY355
Total ratio of speed 40.44 14 31.5 31.5 31.5 31.5 45

*The output will vary according to different materials, feed particle size and other factors
