Bluestone crusher plant 300tph

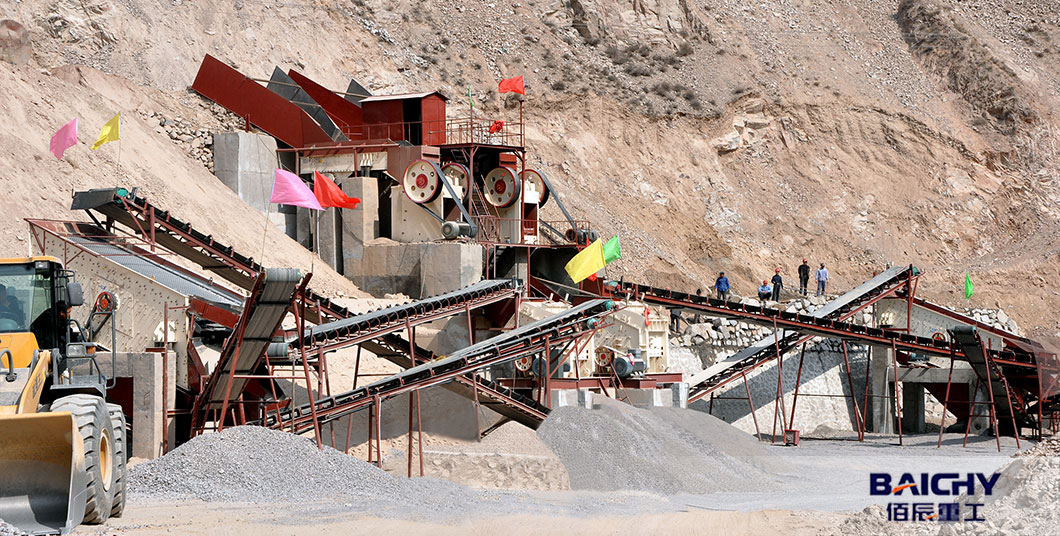

Bluestone is the most widely distributed gray or grayish white sedimentary rock in the earth's crust, which is generated in sea and lake basins and belongs to the limestone category. It is widely found in nature and has a low hardness. It is a very common rock. Bluestone is widely used in many fields such as highways, high-speed railways, and construction sand. It is an ideal material for the construction industry. Our Qinghai region has rich bluestone resources. The customer wants to put into production a 250-300tph bluestone crushing plant. After our company sent engineers to conduct on-site inspections, according to the terrain characteristics, two crushing production lines were configured for joint operation and production.

Project Requirements

Production: 250300 tons/hour
Material: limestone-based bluestone
Feeding requirements: ≤1000mm
Discharging requirements: 0-6mm, 6-15mm, 15-31.5mm

Main equipment models

Vibrating feeder: ZSW-960×3800 2 sets
Jaw crusher: PE-600×900 2 sets
Impact crusher: PF-1214 2 sets
Vibrating screen: 3YK1860 2 sets
Belt conveyor: 10 sets

Solution configuration

After field investigation, our engineers found the following matters needing attention
1. The customer's site is located in the mountainous area of Qinghai, and the road to the site has limited carrying capacity, so overloading needs to be considered when transporting heavy equipment.

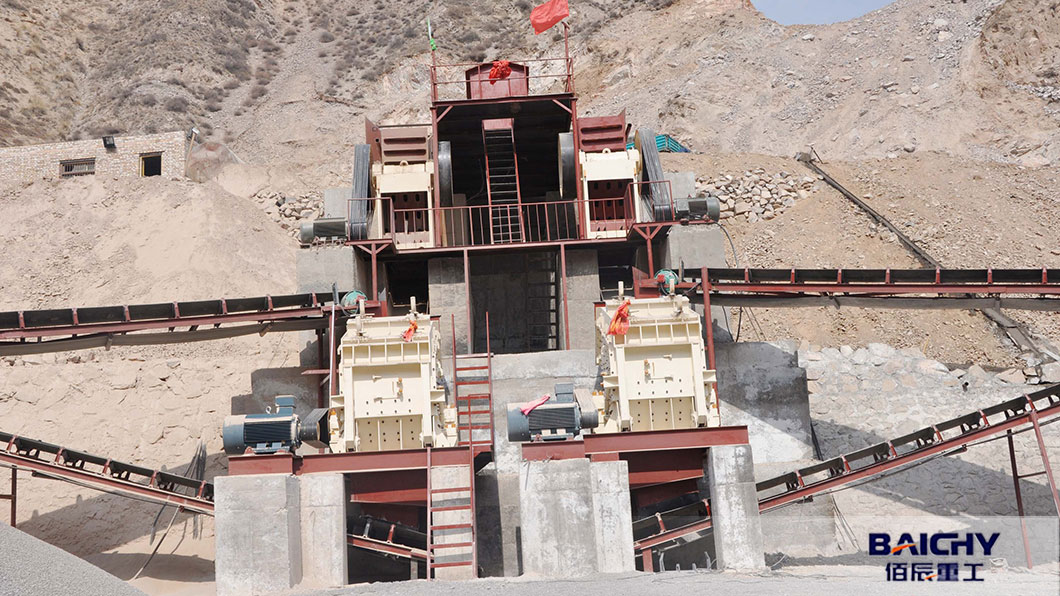

2. The selected site is close to the mountains, and the geographical difference advantage can be used. The material from the jaw crusher directly enters the impact crusher through the chute, which can save the belt conveyor and save site space.
3. Based on the above two points, we recommend investing in two crushing lines with the same model configuration, which can not only meet the production requirements, but also ensure that the other line does not stop production when one of the production lines is overhauled to meet the production requirements

The process flow is as follows

The truck transports the bluestone raw materials and dumps them into the hopper. The bluestone in the large hopper enters the jaw crusher PE-600*900 by the vibrating feeder ZSW960x3800. Taking advantage of the position drop, the coarsely crushed materials are directly transported to the impact crusher PF1214 by the chute, and the finely crushed materials by the impact crusher are transported to the vibrating screen 3YK1860 by the belt conveyor. The materials larger than 31.5mm are transported back to the impact crusher by the belt conveyor for re-crushing to form a cycle. The materials smaller than 31.5mm are screened into 3 finished products and sent to the material pile.

With a dual-line configuration, any equipment problem on any production plant will not affect the normal operation of the other production line. If you are looking for an efficient stone crushing plant that can run continuously, this solution configuration can be your choice. Baichy Machinery has a history of more than 20 years. We not only produces a full set of crushing and sand making equipment, but also provides EPC project general contracting services, including plant site selection and construction, production line design and installation, and production and operation technical training. Welcome to consult online to get your exclusive plant construction plan.
