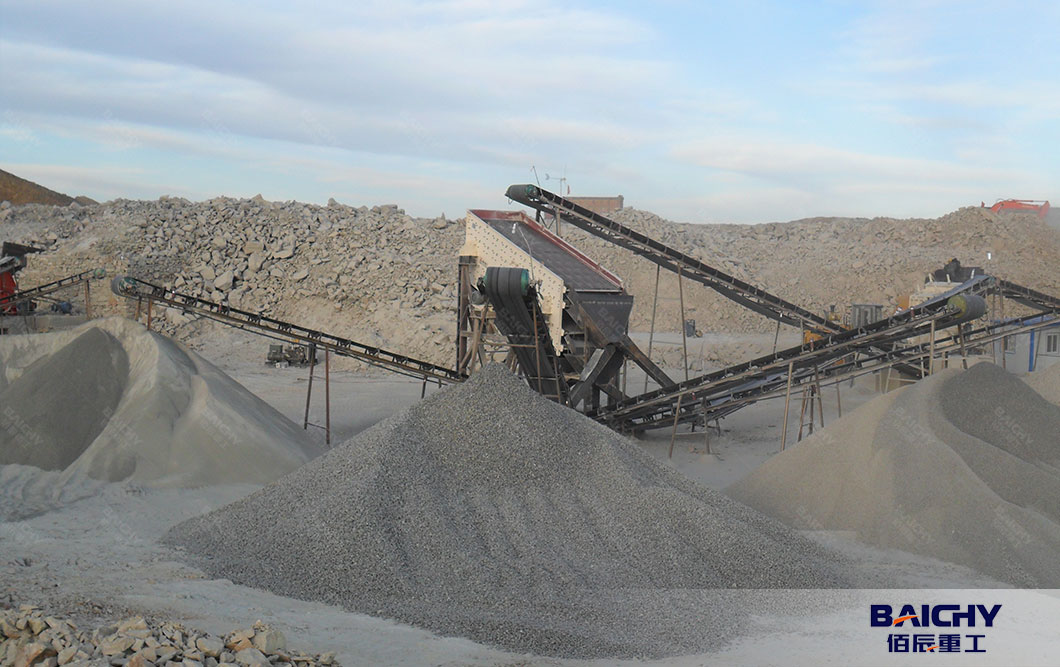

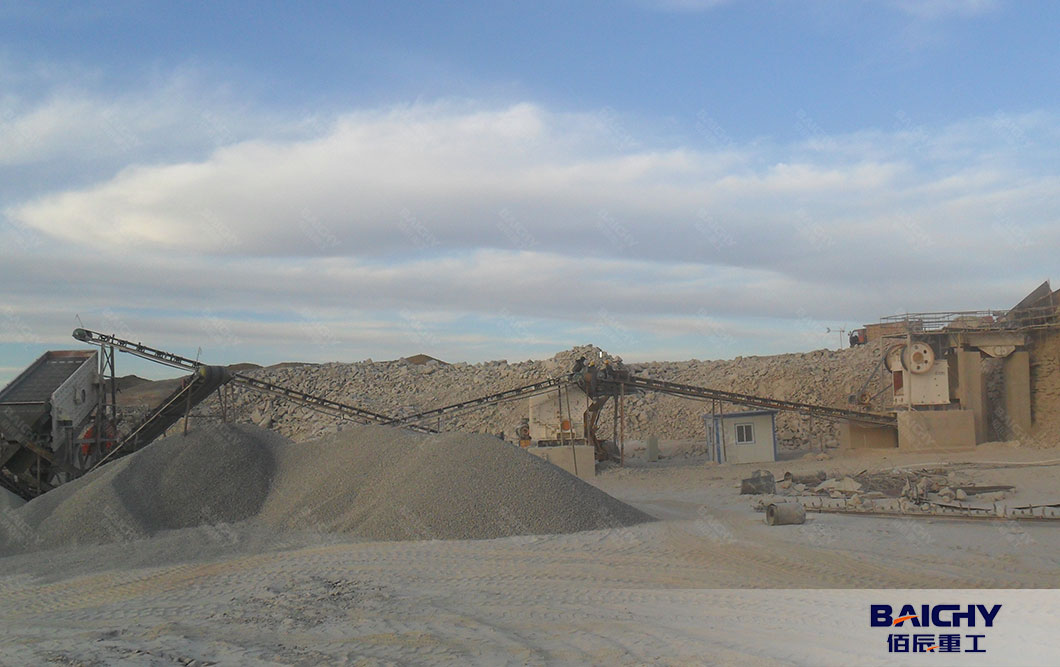

Limestone Crushing Plant 200tph in Kenya

After limestone is crushed, it can be widely used in construction, chemical industry, highway, railway, etc. The limestone crushing plant is designed and configured after understanding the characteristics of limestone materials. The whole production line is reasonably designed, and the configured equipment has been studied and practiced. It occupies a small space, has a compact structure, and runs one link after another. There is no extra idle equipment, the operation is smooth, and the failure rate is low. It can easily maximize production efficiency and minimize operating costs, and is welcomed by many limestone production companies.

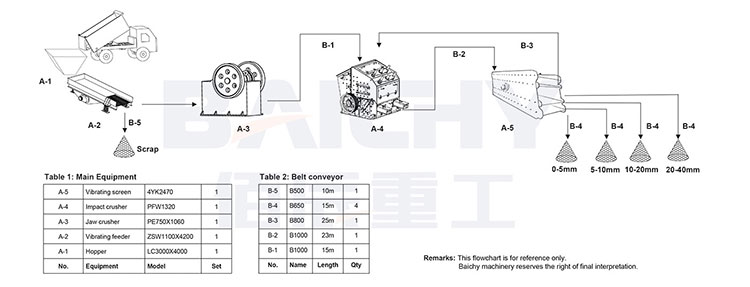

Process flow of limestone crushing plant

The compressive strength of limestone is generally around 150 MPa, which is a soft rock. Baichy's technical manager customized a limestone crushing production line for Kenyan users based on the raw material properties and discharging requirements of limestone. It is equipped with a jaw crusher, an impact crusher, a vibrating feeder, and a circular vibrating screen. This two-stage one closed-circuit crushing process is an economical and reasonable choice.

1. Primary crushing stage

The limestone blasted from the mountain is fed into the vibrating feeder by a dump truck. The vibrating feeder evenly feeds the stone into the jaw crusher PE750X1060 for preliminary crushing, and the crushed material is transported to the next stage;

2. Secondary crushing stage

The coarsely crushed limestone is sent by the conveyor to the 3-cavity impact crusher PF1315 for further crushing. The crushing ratio is large and the particle shape of the crushed material is better

3. Screening stage

The limestone crushed by the impact crusher enters the vibrating screening machine 3YK2160, screened into stones of different specifications, and those that meet the requirements are transported to the finished product pile;

4. Return material crushing stage

The limestone that does not meet the specifications screened by the screening machine must be returned to the impact crusher for crushing again until it meets the requirements of the finished product specifications.

Limestone crushing plant features

1. Simple and easy to operate. The entire limestone crushing production line has a simple design process and a high degree of automation, so in the process of limestone production, the equipment is simple to operate and easy to maintain.
2. Good quality of finished products. The difference between this production line and the previous crushing production line is that the limestone finished products produced by this production line are of better quality, more uniform particle shape, lower stone powder rate, and more popular in the sales market.
3. High economic benefits. Since the production line is scientifically designed and the equipment configured are all relatively new equipment, the production efficiency is high when processing and crushing limestone, and the economic benefits brought to users are more significant.

Investment prospects

1. Sand and gravel aggregate market, concrete product market, limestone is one of the raw materials for producing stone and artificial sand.
2. Cement market. Generally, limestone can meet the requirements of cement raw materials after crushing and grinding.
3. Production of foundry sand for machinery manufacturing. According to statistics, only major steel companies have to purchase tens of thousands of tons of foundry sand each year, which is a potential market for limestone mines in the metallurgical industry.
4. Production of desulfurization absorbents. Industrial production of nano-level light calcium, etc.
