Crawler Mobile Crusher Sation- Baichy Machinery

Product Center / Mobile Crushing Plant / Crawler Mobile Crusher Sation

Crawler type mobile crusher station is equipped with a fully hydraulic drive system and a self-propelled tracked chassis, ensuring stable operation and high mobility. It can be flexibly combined and matched in different applications, reducing operating costs and improving equipment utilisation.

0-950mmFeed Size
80-160kwMotor Power
50-680t/hProcessing capacity

Get Quotes Leave Message

60S Quick Response
30Min Technical Reply
24H Design Proposal
Email:hnbc@baichy.com

What is crawler mobile crusher?

Crawler-type mobile stone crusher station is a high-performance mobile crushing and screening solution designed by Baichy Machinery to meet market demands. It is equipped with a fully hydraulic drive system and a self-propelled tracked chassis, ensuring stable operation and high mobility. Designed for efficiency and ease of use, the unit features autonomous travel, integrated functions, and a robust yet streamlined appearance. It can operate reliably across complex and rugged terrains, with adjustable discharge sizes and multiple crushing configurations to accommodate diverse production requirements. This mobile crushing station is widely used in metallurgy, chemical processing, construction materials, hydropower projects, and other applications where frequent relocation and flexible on-site processing are essential.

How to choose suitable crawler mobile crusher?

1. The crawler mobile crushing station can be divided into four series - crawler mobile jaw crusher, crawler mobile impact crusher and screening plant, crawler moible cone crusher and screening plant, crawler mobile vibrating screen. According to stone hardness, site conditions, etc. Engineers from Baichy Machinery could suggest appropriate mobile crusher.

2. The combined mobile crusher and screening plant equipped with crawler jaw crusher and crawler cone crusher can crush various stone materials and the finished material can keep within 0-40mm stably. It is mainly used for the production of aggregates, or secondary crushing stage when producing artificial sand. The cone crusher has low cost and large output for processing hard rock, and the overall service life of the equipment is long and there are few failures.

3. The combined crawler impact crusher and crawler impact crusher has two effects of two-stage crushing and sand making at the same time. The vibrating screen assists in sorting sand and gravel. It can handle most of the stone raw materials in the mining industry, and the output can be controlled within 0-40mm. The sand grain is regular, the overall finished product quality is high, good efficiency.

4. The crawler-mounted mobile crushing and screening combination unit, equipped with a crawler jaw crusher and a crawler vibrating screen, is capable of processing a wide variety of stone materials, ensuring that the finished product size remains consistently within the 0–100 mm range. This station is primarily for crushing operations and the production of medium-to-coarse aggregates. The jaw crusher demonstrates high efficiency and low operating costs when processing high-hardness rocks, also a long service life and an extremely low failure rate.

Get Price List

High Quality

The ship shaped steel frame structure is adopted, and the chassis design is compact, effectively shortening the crawler moible crusher transportation length
Customized Design

The high-quality jaw / impact / cone crusher specially designed for mobile crushing station is highly independently researched and developed, which perfectly fits the production conditions.
Good Performance

Integrated operation can eliminate the obstacles brought by the crushing site, environment, and complicated basic configuration to the customer's crushing operation

Product features

It can be used for both open circuit and closed circuit production in mines, coal mines, earthworks, urban infrastructure, roads, or construction sites and so on.

Working principle

The Crawler Mobile Jaw Crusher works by using a powerful jaw crusher mounted on a crawler chassis to crush materials directly at the job site. Once the machine is positioned, raw materials are fed into the jaw crusher, where they are crushed through compressive force between a fixed and a moving jaw plate. The crushed material is then discharged for further processing or direct use. Its track-mounted design allows it to move easily across uneven terrain, enabling flexible, on-site crushing without the need for heavy transportation or fixed infrastructure.

During secondary crawer impact / cone crusher station, the materials are evenly transported to the main crusher for preliminary crushing through the feeder, and then pass through the round vibrating screen to form a closed-circuit system to realise the circulating crushing of materials, and the finished materials are output by the conveyor to carry out the continuous crushing operation. The round vibrating screen can be removed according to the actual production needs, to achieve the preliminary crushing of materials directly, and other crushing equipment supporting the use of convenient and flexible operation.

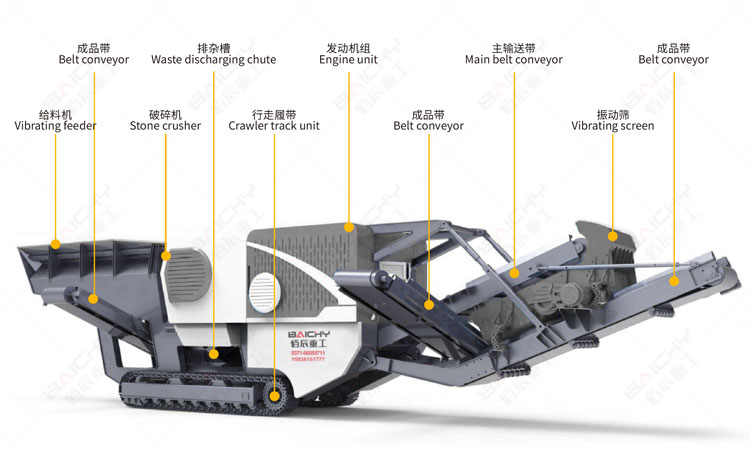

crawler mobile crusher working principle

Specification

Model		YMC80	YMC96	YMC106	YMC116	YMC120
Feeder	Model	GZD8035	GZD9638	GZD1142	GZD1142	GZD1242
	Feeding Capacity	60-120t/h	100-200t/h	200-300t/h	200-300t/h	300-400t/h
	Feeding Height	2900mm	3750mm	3900mm	3900mm	3900mm
	Volume	2.2m³	3.2m³	3.2m³	3.2m³	3.2m³
	Power	2×3.7Kw	2×5.5Kw	2×5.5Kw	2×5.5Kw	2×7.5Kw
Jaw Crusher	Model	C80	C96	C106	C116	C120
	Power	55Kw	90Kw	132Kw	132Kw	160Kw
	Discharge Adjustment	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic
Main Discharge Belt	Size(Width x Length)	800×9000mm	1000×12000mm	1000×12000mm	1200×13000mm	1200×13000mm
	Unloading Height	2400mm	2900mm	2900mm	3200mm	3200mm
	Power	7.5Kw	11Kw	11Kw	15Kw	15Kw
Side Discharge Belt	Size(Width x Length)	500×3800mm	500×3800mm	500×3800mm	500×3800mm	500×3800mm
	Unloading Height	1800mm	1800mm	1800mm	1800mm	1800mm
	Power	3Kw	3Kw	3Kw	3Kw	3Kw
Iron Remover	Model	RCYD800	RCYD1000	RCYD1000	RCYD1200	RCYD1200
Generator	Primary Power	163Kw	225Kw	310Kw	310Kw	403Kw
	Standby Power	180Kw	250Kw	345Kw	345Kw	448Kw
	Structure	6-Cylinder Inline	6-Cylinder V-shape	6-Cylinder V-shape	6-Cylinder V-shape	8-Cylinder V-shape
Generator	Primary Power	150Kw	200Kw	280Kw	280Kw	360Kw
Generator	Standby Power	165Kw	220Kw	300Kw	300Kw	390Kw
Dual Power	Driving Concept	Diesel-electric Drive	Diesel-electric Drive	Diesel-electric Drive	Diesel-electric Drive	Diesel-electric Drive
Transport Parameters	Transport Length	12500mm	14500mm	15000mm	15000mm	15500mm
	Transport Width	2850mm	2950mm	3000mm	3200mm	3200mm
	Transport Height	3550mm	3550mm	3600mm	3600mm	3700mm
Installed Power		78.1Kw+70Kw	121Kw+70Kw	163Kw+90Kw	168Kw+115Kw	200Kw+115Kw
Complete Dry Fog Dust Suppression		Optional	Optional	Optional	Optional	Optional
Capacity		80-125t/h	100-250t/h	160-360t/h	200-450t/h	300-520t/h
