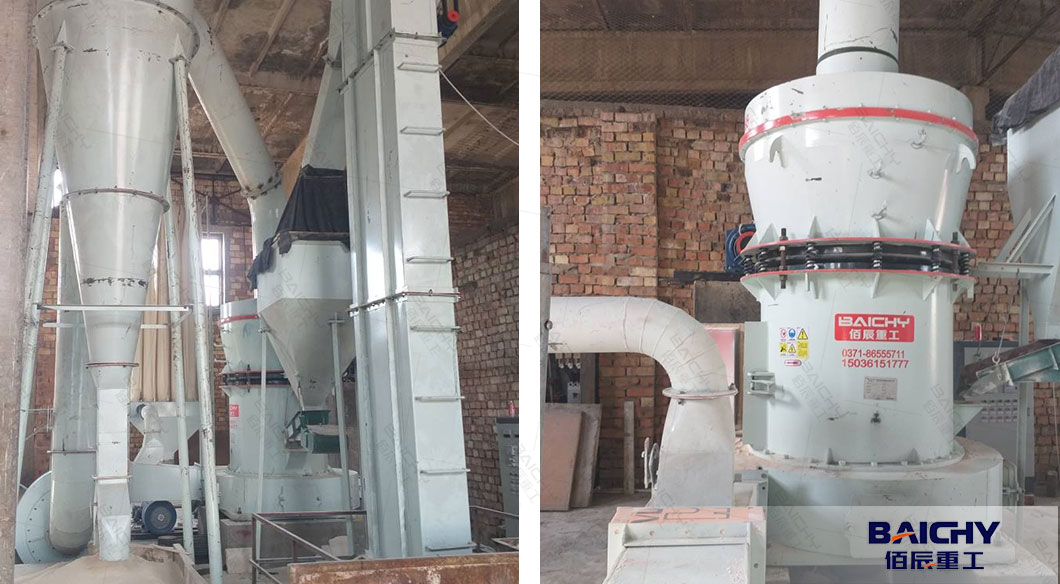

Raymond Mill YGM95 Running Sucessfully in Tanzania | Baichy Machinery

The successful operation of the Gypsum Mill Raymond Mill YGM95 in Tanzania is a significant milestone. This mill is renowned for its efficient grinding capabilities. It is designed to handle and grind gypsum with precision, reducing it to the desired fine powder size 325mesh.

Raymond mill YGM95 techinial parameter
Roller number: 4 pcs
Roller size: 310x190mm
Grinding ring: 950x190mm
Max feeding size: 25mm
Output size: 0.613-0.033mm
Capacity: 2-5.6tph
Power: 45kw
Application: Grind stone into fine powder, such as limestone, gypsum, feldspar, clay, barite, quartz, calcium carbonate and so on.

Working principle

YGM95 Raymond mill gypsum powder production line is generally composed of main machine, seperator, blower, cyclone dust collector, motor and so on. The auxiliary equipment includes jaw crusher, bucket elevator, vibrating feeder, electric control cabinet, etc.

Firstly, after the crusher machine crushes the large pieces of material to the required feed size, the bucket elevator conveys the material to the storage bin. Then the vibrating feeder evenly delivers the crushed material to the grinding chamber of the main machine. Then the blower blows the air from the dividing plate into the grinding chamber and sends the crushed powder to the analysis chamber.

The adjustable-speed motor drives the rotating analysis impeller for sorting through the transmission device, and the large particles fall back to the grinding chamber for regrinding. And the qualified fine powder enters the finished cyclone dust collector with the airflow and is discharged from the discharge port as the finished product.

The shovel plays a very important role in the working process of the main machine. It is located at the lower end of the grinding roller, and in the process of rotation of shovel and grinding roller, the shovel is to shovel up the material into the grinding roller between the roller ring, forming a bedding layer. The material layer is crushed by the outward extrusion pressure generated by the rotation of the grinding roller, thus achieving the purpose of grinding.

Function

In Tanzania, this mill can have a substantial impact on various industries. For example, in the construction sector, the finely ground gypsum can be used in the production of plasterboards and other building materials. It can also find applications in the chemical industry for the manufacturing of fertilizers or other gypsum-based products.

Maintenance

The successful running of the mill indicates that it has been properly installed and maintained. Regular maintenance checks on components like bearings, grinding media, and the classifier are essential to keep it operating at peak performance.

Baichy Machinery Company is headquartered in Zhengzhou, Henan. As a manufacturer specializing in the production of raymond mill plant for more than 20 years, it has a good reputation in the industry.  We have raymond mill with series of  R-seires, YGM, MTW, HGM and SRM. If you have any questions about raymond mill plant, please click on the online customer service, which will answer you 24 hours a day.
