Mobile Heavy Hammer Crusher-Baichy Machinery

Product Center / Mobile Crushing Plant / Mobile Heavy Hammer Crusher Plant

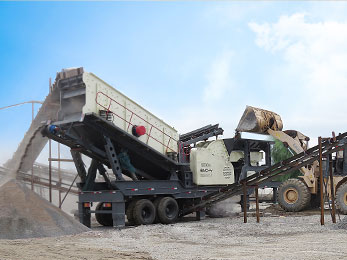

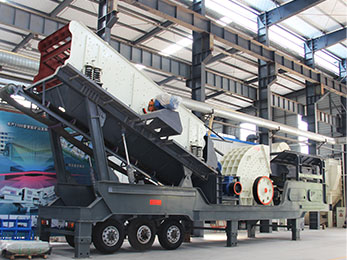

This mobile crusher plant integrates a feeder, PCZ series heavy hammer crusher, and vibrating screen on a single chassis, providing an efficient one-stage solution for primary and secondary crushing tasks.It could crush and screen large reinforced concrete in concrete recycling industry.

≤1200mmFeed Size
120-400kwMotor Power
50-450 tphProcessing capacity

Get Quotes Leave Message

60S Quick Response
30Min Technical Reply
24H Design Proposal
Email:hnbc@baichy.com

What is mobile heavy hammer crusher plant?

Mobile hammer crushing plant is a tire-type mobile crushing station mainly crushed by heavy hammer crushers. Heavy hammer crushers can directly crush materials with a particle size of 600-1200 mm to below 25 mm at one time. The equipment is suitable for crushing various medium-hard and brittle materials such as limestone with a compressive strength not exceeding 150 MPa and a calcium content higher than 40. The mobile heavy hammer crusher has a large crushing ratio and a simple structure. It is assembled on the same frame with the feeder and vibrating screen, and crushing and screening are integrated. The price is relatively cheap and it has a wide range of applications, especially for construction waste.

How to choose mobile heavy hammer crusher plant?

According to material properties. That is the key factor affecting production efficiency and capacity. Therefore, before purchasing the mobile heavy hammer crusher plant, the user must have a detailed understanding of the humidity, hardness, physical and chemical properties of the materials to be crushed.

According to finished granularity requirement. Because each user has different requirements for product particle size, the selection of equipment model will also be affected by it.

Since the prices of each type of mobile stone crusher are different, users must consider their own production conditions when purchasing a mobile crusher, and strive to obtain large returns with a small investment.

Get Price List

Product features

Powerful One-Stage Crushing

The PCZ heavy hammer crusher delivers a large reduction ratio, converting raw materials into final products in one pass, which effectively simplifies the overall crushing process.
Excellent Site Mobility

Mounted on a robust wheeled chassis, the plant can be easily towed to different work sites, enabling on-site processing at the quarry face and significantly reducing hauling expenses.
High Output and Efficiency

The optimized crushing chamber and heavy hammer design enable large feed sizes and high output capacity, making it a highly efficient solution for large-scale aggregate production.
Low Investment

By combining feeding, crushing, and screening into one unit, it reduces total machinery investment, lowers power consumption, and simplifies maintenance for better operational control.

Working principle

The mobile construction waste crushing plant includes vibrating feeder, stone crusher, vibrating screen, belt conveyor, magnetic separator etc. When construction waste is fed to vibrating feeder by the loader, they are crushed by heavy hammer crusher. The crusher materials will go to vibrating screen by foldable belt conveyor. After screen, the unqualified stone will go to crush again, the other qualified aggregates will be piled for further processing, such as removing iron, separating wood chips, cleaning etc.

Specification

Model	YDPZ1308-1548	YDPZ1310-1848	YDPZ1512-2160
Vibrating Feeder	ZSW8530	ZSW8530	ZSW9638
Stone Crusher	Heavy Hammer Crusher	Heavy Hammer Crusher	Heavy Hammer Crusher
Model	PCZ1308	PCZ1310	PCZ1512
Feeding Size（mm）	≤600	≤600	≤750
Power（kw）	2×55	2×75	2×160
Vibrating Screen	2/3/4YK1548	2/3/4YK1548	2/3/4YK1548
Belt Conveyor	B650	B800	B1000
Capacity (t/h)	100-160	120-180	225-350
Overall Size（mm）	11900x2250x6150	11900x2580x6150	15300x2900x6980
