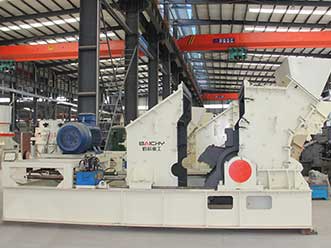

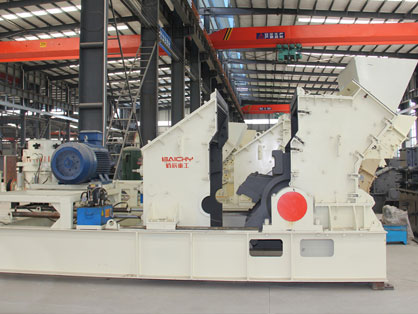

High-efficiency Fine Crusher

High-efficiency Fine Crusher

PCX fine crusher is kind of hammer crusher to crush limestone, cement, quartz etc. Due to more wear-resistant hammerhead and larger capacity, it is used to making artifical sand and gravels too.

  • ≤190mmFeed Size
  • 45-315KWMotor Power
  • 20–270 t/hProcessing capacity
  • 60S Quick response
  • 30 min Technical reply
  • 24h design proposal
  • Email:hnbc@baichy.com

What is PCX fine crusher?

The high efficiency fine crusher is a new type multi-functional stone crusher referring to the working principle of various crushing machines. PCX fine crusher is widely used for fine crushing of various brittle materials and minerals whose compressive strength is not more than 100Mpa and surface moisture is not more than 15%, such as granite, basalt, limestone, river pebble, cement clinker, quartz stone, iron ore, bauxite and so on.
sand crusher price sand stone crusher

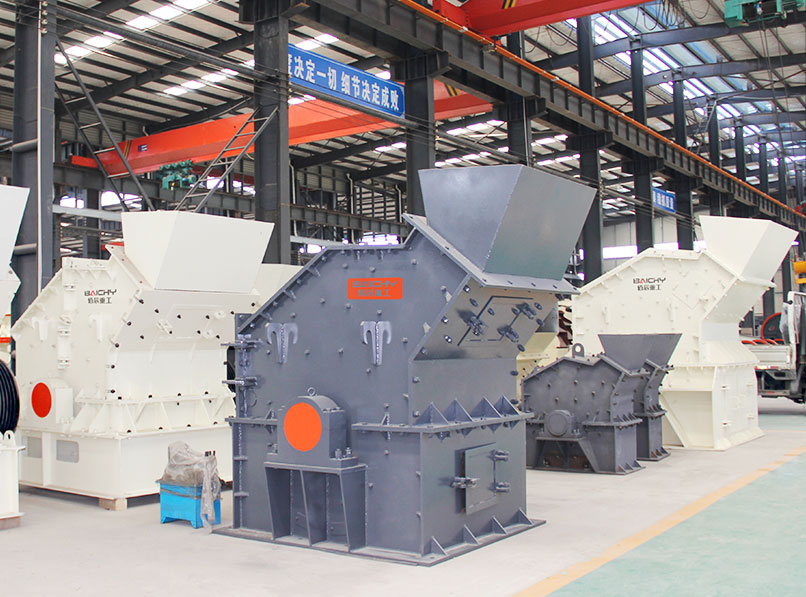

PCX fine crusher

Why choose PCX fine crusher?

Energy saving and consumption reduction.The structural design principle of PCX fine crusher is composed of "stone beating stone" coarse crushing cavity, fine crushing cavity, adjustable counter plate and discharging grates. It has the advantages of high output and stable operation.

High output rate. Fine crusher could control the material discharging granularity due to the grates, so the required material granularity can reach more than 95 percent, to achieve a more ideal material granularity control, screening. It has changed the problems of poor grain size and irregular grain shape of finished products.

Discharging size adjustable.The discharging particle size of fine crusher can be adjusted. And the adjustment plate can be turned over at both ends, simple operation, convenient adjustment, no jam, no block. It is a stable performance of crushing equipment.

High component performance. The hammer head of fine crusher can be used on all sides, with high utilization rate and high hardness.

Get Price List
  • High Quality

    High crushing efficiency: grate plate design, rigid hard extrusion crushing, making the fine crushing efficiency greatly improved.

  • Customized Design

    Environmental and energy saving: high speed and fast operation , save electricity and reduce consumption.

  • Good Performance

    Wear-resistant parts durable: more durable with wear-resistant parts material.

Product features

Low maintenance cost: compared with traditional pulverizer, energy saving is better, stable operation, maintenance cost is lower.

  • secondary crusher
  • secondary crusher
  • feldspar crusher
  • dolomite crusher

Working principle

When PCX fine crusher works, the rotor keeps rotating in high speed driven by the motor. Hammers are installed on the rotor. When the materials get into the area which the hammer affects, under the high-speed impact effect by the hammer, they are thrown to the impact device above the rotor continuously. Then the materials are rebounded from the impact liner to the area where the hammer affects for being re-crushed. The materials no matter large or small are all crushed in the impact chamber repeatedly. This process will not stop until the materials are finally crushed into prospected size and discharge from the grate screen at the bottom.

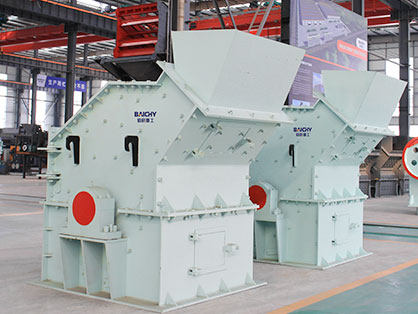

single stage hammer crusher

Specification

Model Feeder Opening Size(mm) Feeding Size(mm) Output Size(mm) Capacity of Cement(t/h) Capacity of Limestone(t/h) Motor Power(kw)
PCX-0804 400X185 < 120 < 3(85%) 20-30 35-45 45
PCX-0806 500X250 < 180 35-40 45-45 55
PCX-0808 550X330 35-45 55-65 55
PCX-1010 1000X350 45-55 65-75 75
PCX-1210 1200X400 50-100 80-100 110
PCX-1212 1200X450 < 5(85%) 90-110 100-110 132
PCX-1414 1500X500 < 190 100-150 100-150 160
PCX-1616 1600X550 170-210 190-250 250
PCX-1818 1800X800 250-270 280-310 315

*The output will vary according to different materials, feed particle size and other factors
